Engine Control System (1ZZ-FE): ECM: Removal

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
1. Remove the screw [A] from the glove compartment door stoppers.
2. Deform the upper part of the glove compartment door assembly to release the stoppers [B].
3. Pull the glove compartment door assembly upward to remove it.

  Fig 1: Removing Glove Compartment Door Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM
1. Remove the 2 clips using a clip remover, then open the cover.

  Fig 2: Removing Clips Using Clip Remover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 4 ECM connectors [B].
3. Remove the wire harness from the wire harness clamp [C].
4. Remove the 2 screws [D].
5. Unfasten the claw and clip, and then remove the ECM.
REMOVE ECM COVER
1. Remove the ECM cover from the ECM.

  Fig 4: Removing ECM Cover From ECM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

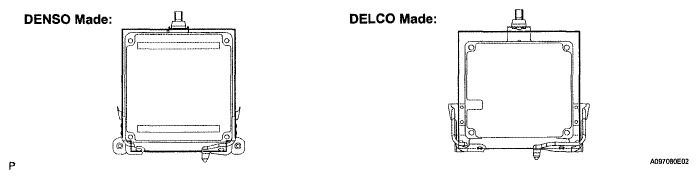

  Fig 5: Identifying Denso And Delco Made ECM Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET NO. 1 (for DELCO Made)
1. Remove the 4 screws, then remove the ECM bracket No. 1.

  Fig 6: Removing Screws And ECM Bracket No. 1 (For Delco Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET NO. 1 (for DENSO Made)
1. Remove the 2 screws, then remove the ECM bracket No. 1.

  Fig 7: Removing Screws And ECM Bracket No. 1 (For DENSO Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET NO. 2 (for DENSO Made)
1. Remove the 2 screws, then remove the ECM bracket No. 2.

  Fig 8: Removing Screws And ECM Bracket No. 2 (For Denso Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET NO. 3 (for DENSO Made)
1. Remove the 2 screws, then remove the ECM bracket No. 3.

  Fig 9: Removing Screws And ECM Bracket No. 3 (For Denso Made)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
