3MZ-FE 3.3L HV

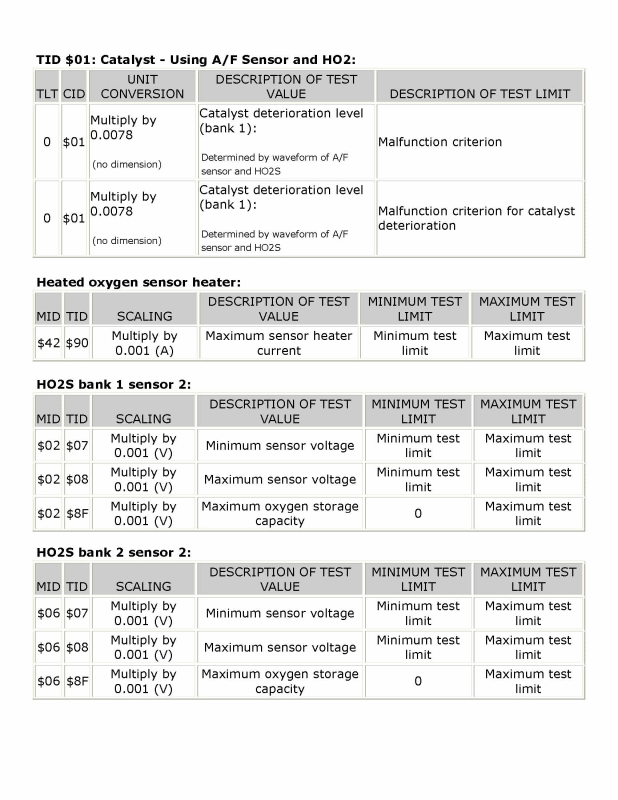

Fig 1: Mode 6 Data For Highlander HV (1 Of 4)
G00526018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

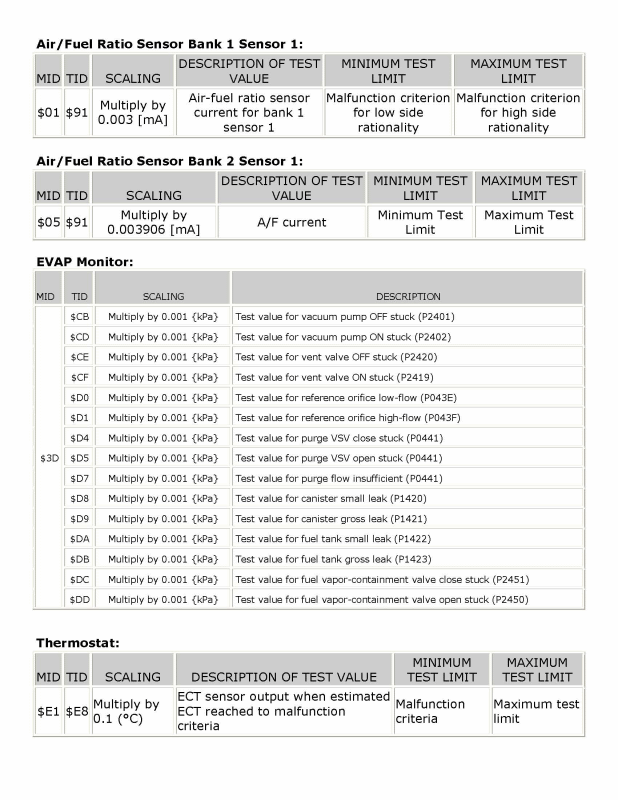

Fig 2: Mode 6 Data For Highlander HV (2 Of 4)
G00526019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

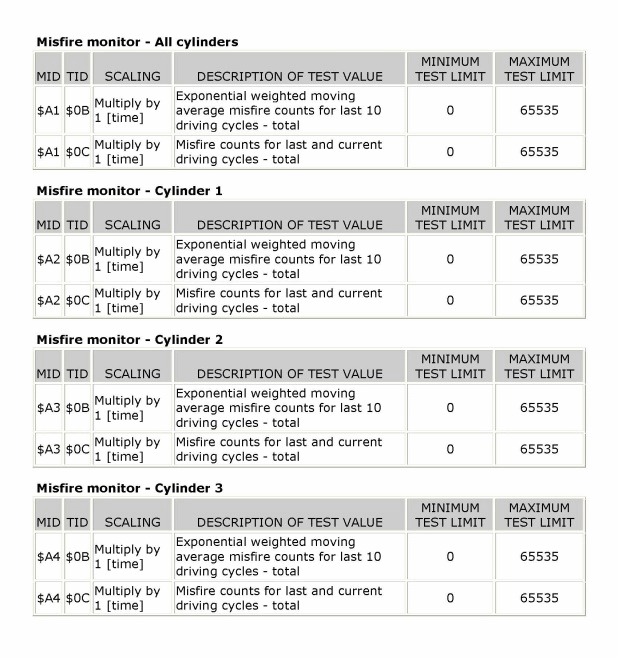

Fig 3: Mode 6 Data For Highlander HV (3 Of 4)
G00526020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

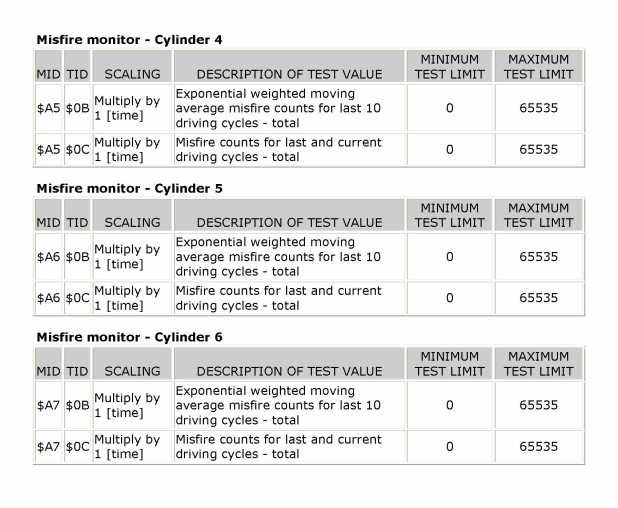

Fig 4: Mode 6 Data For Highlander HV (4 Of 4)
G00526021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
