Back Door Glass: Components

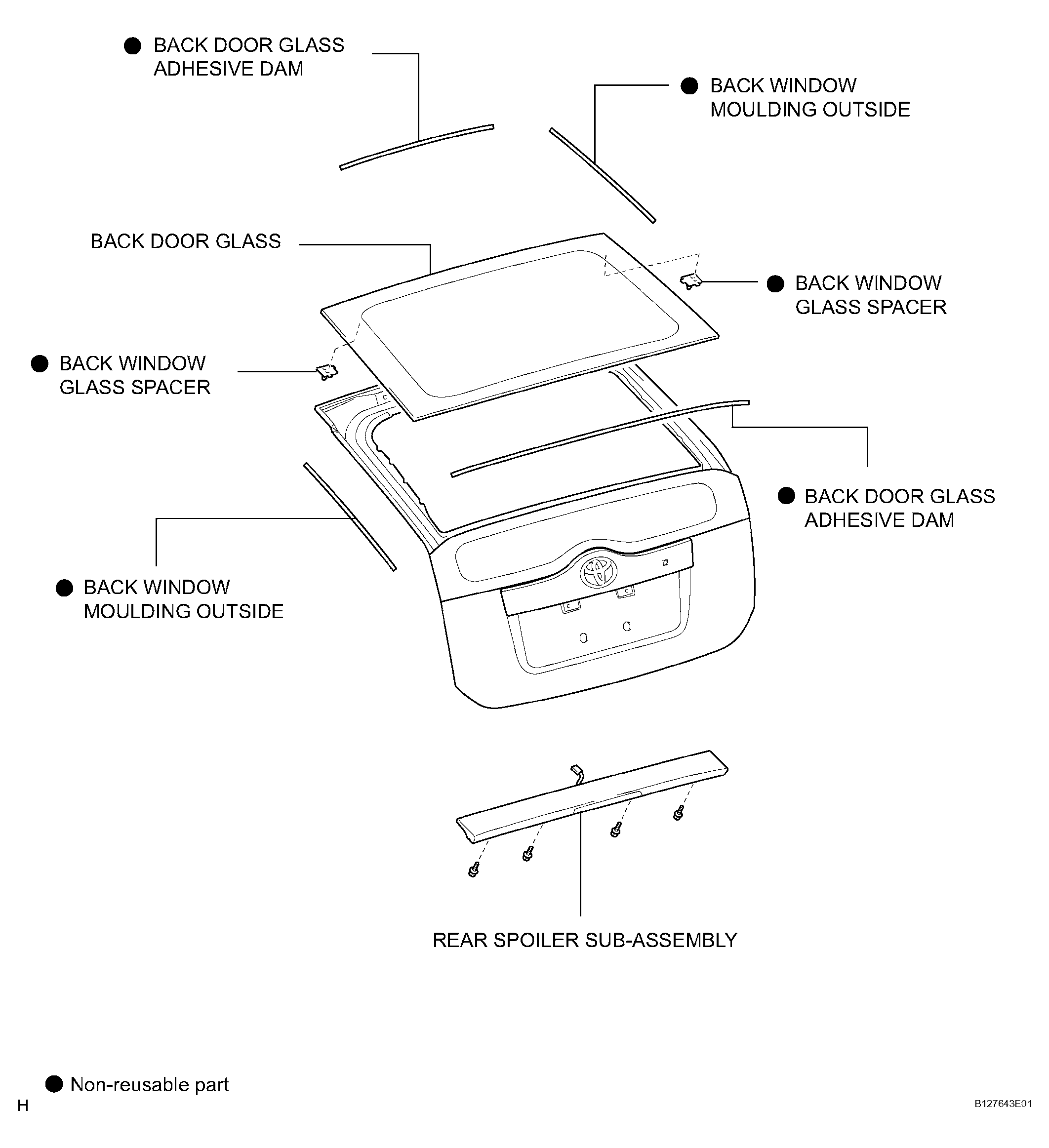

Fig 1: Identifying Back Door Glass Components (1 Of 2)
G04476805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Back Door Glass Components (2 Of 2)
G04476806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
