Auto Up / Down Function does not Operate: Wiring Diagram

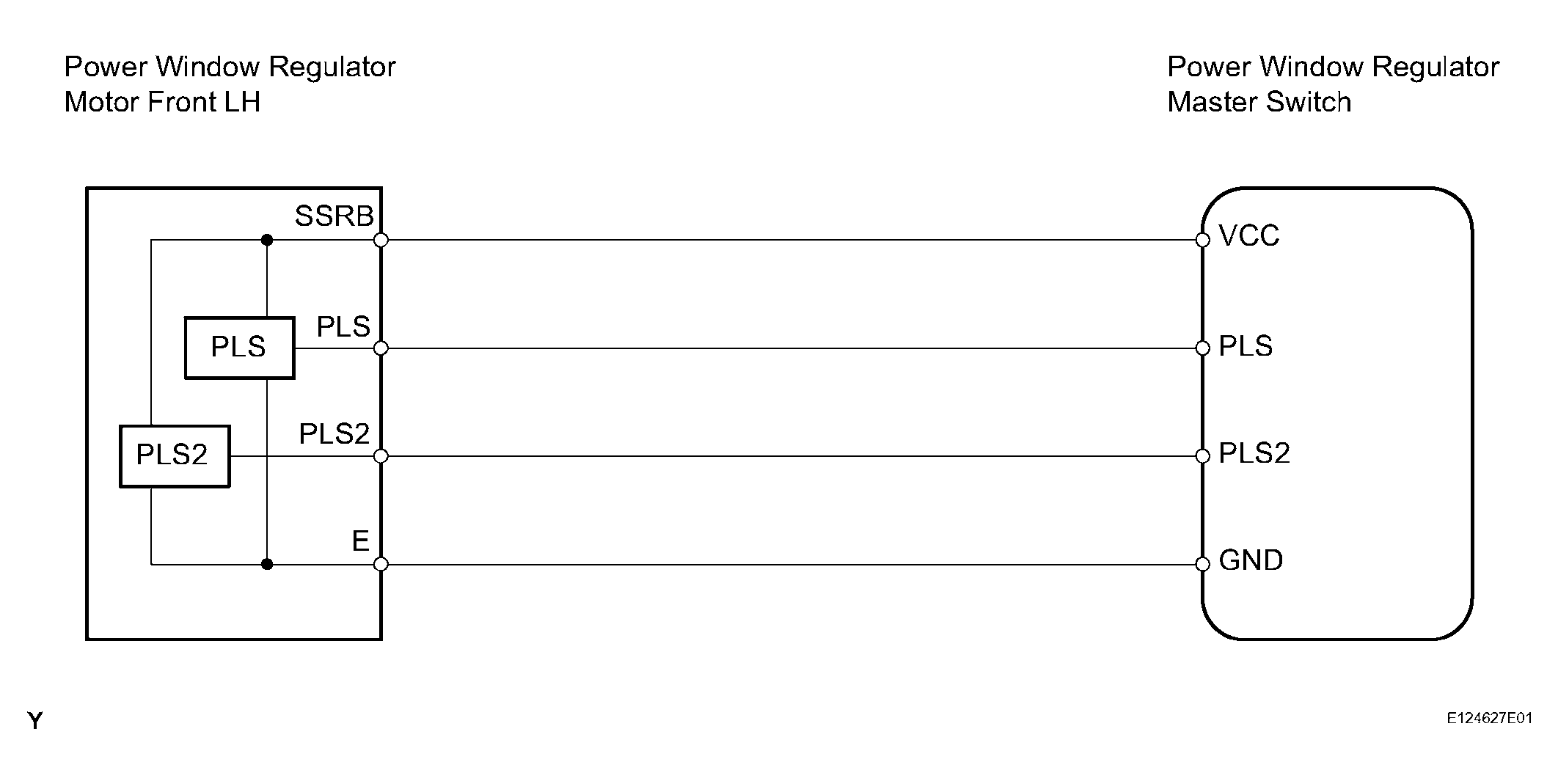

Fig 1: Auto Up/Down Function Not Operate - Wiring Diagram
G04476741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
