Inspection Procedure

1. Disconnect the P17 switch connector.
2. Measure the voltage of the wire harness side connector.

   Standard voltage

   TERMINALS VOLTAGE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   P17-7 (BW) - P17-1 (E)	Always	10 to 14 V
   P17-11 (BDR) - P17-1 (E)	Power switch ON (IG)	10 to 14 V

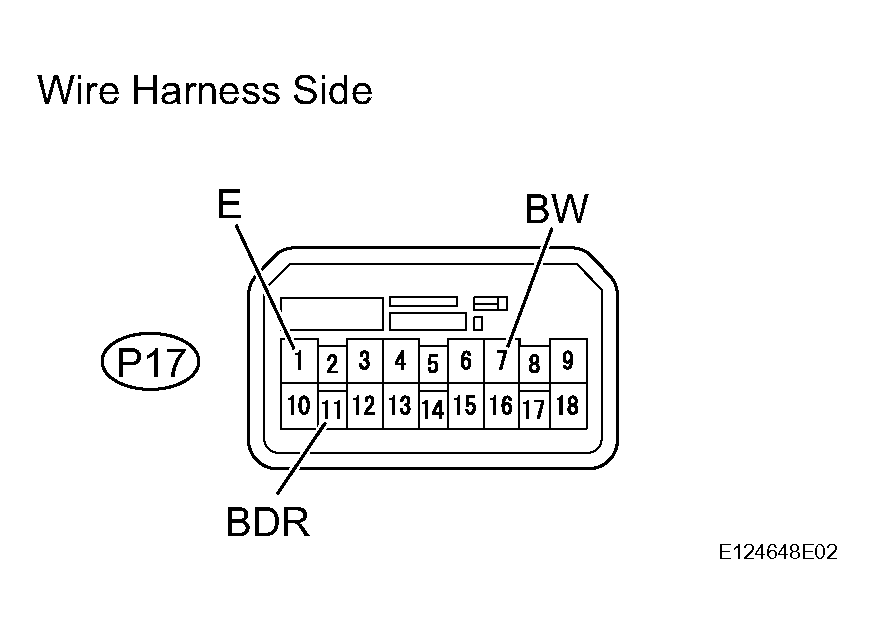

   Fig 1: Identifying Power Window Regulator Master Switch Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR (BATTERY - MASTER SWITCH)

OK : GO TO NEXT STEP

1. Disconnect the P17 switch connector.
2. Using a service wire, connect the terminals according to the table below.
3. Check operation of the power window regulator motor.

   OK

   WIRE CONNECTION AND SPECIFIED CONDITION



   Wire Connection	Specified Condition
   P17-4 (DU) - P17-7 (BW) P17-9 (DD) - Body ground	Power window moves UP
   P17-4 (DU) - Body ground P17-7 (BW) - P17-9 (DD)	Power window moves DOWN

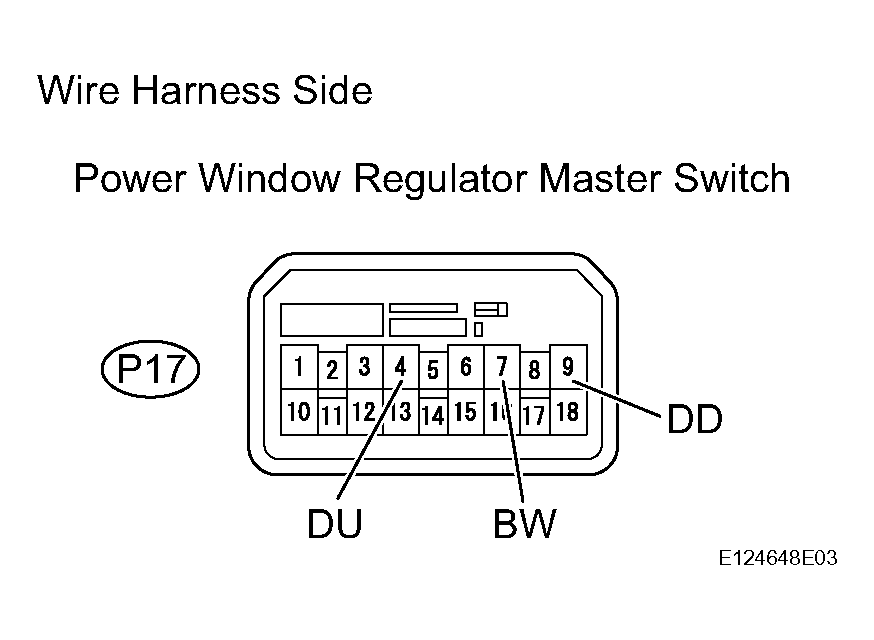

   Fig 2: Identifying Power Window Regulator Master Switch Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK : REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

NG : GO TO NEXT STEP

1. Disconnect the P17 switch connector.
2. Disconnect the P18 motor connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TERMINALS RESISTANCE SPECIFICATION



   Tester Connection	Specified Condition
   P17-9 (DD) - P18-1 (D)	Below 1 Ω
   P17-4 (DU) - P18-2 (U)	Below 1 Ω
   P17-9 (DD) or P18-1 (D) - Body ground	10 kΩ or higher
   P17-4 (DU) or P18-2 (U) - Body ground	10 kΩ or higher

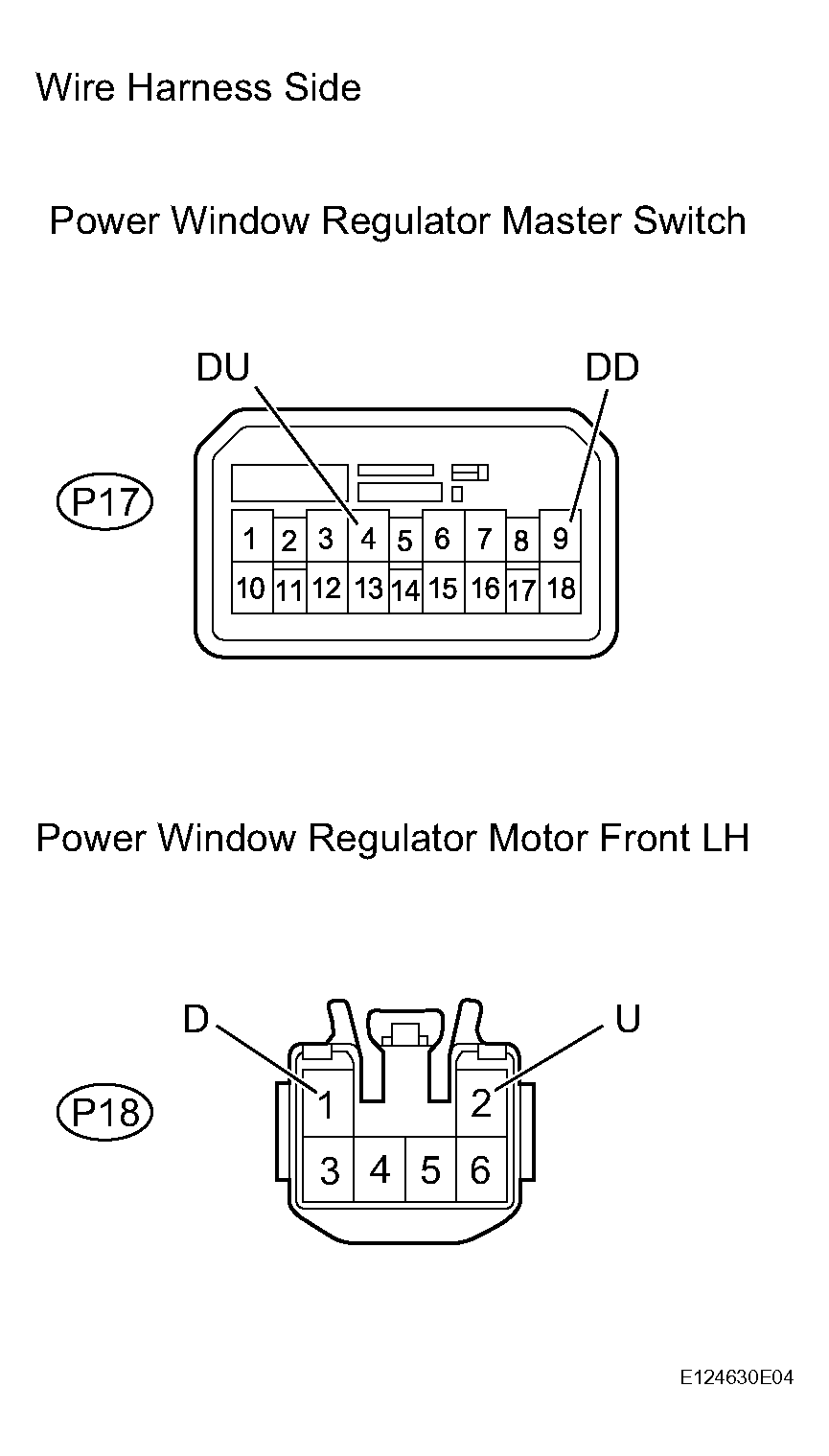

   Fig 3: Identifying Power Window Regulator Master Switch Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

OK : REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY FRONT LH
