Window Defogger System: Inspection

CHECK STEERING PAD SWITCH

Remove the horn button (See REMOVAL ).
Disconnect the connector as shown in Fig 1.

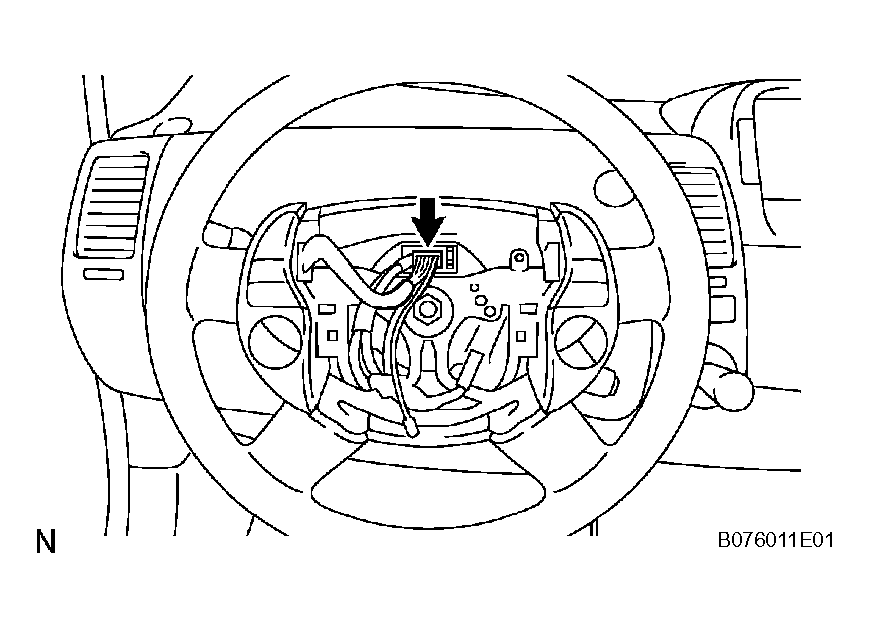

Fig 1: Disconnecting Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance of the switch.

Standard resistance

TERMINALS RESISTANCE SPECIFICATION

Tester Connection	Switch Condition	Specified Condition
3 (AC1) - 7 (EAC)	OFF	29 to 31 kΩ
3 (AC1) - 7 (EAC)	ON	290 to 305 Ω

If the result is not as specified, replace the switch.

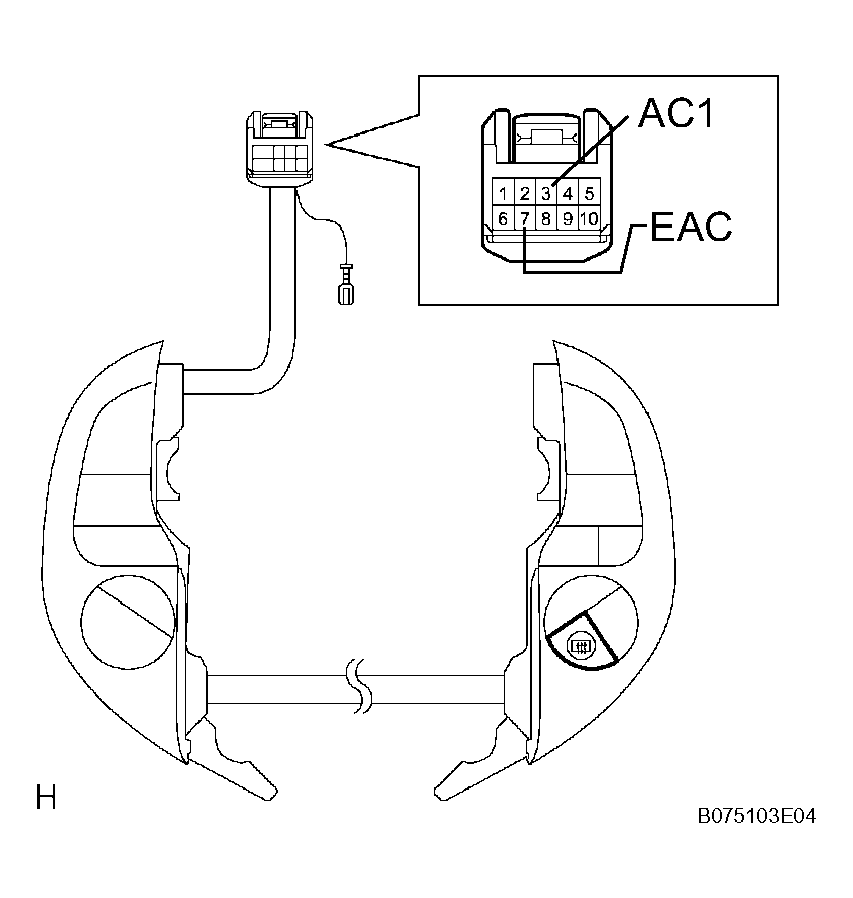

Fig 2: Identifying Steering Pad Switch Connectors
