Air Conditioning: Notes

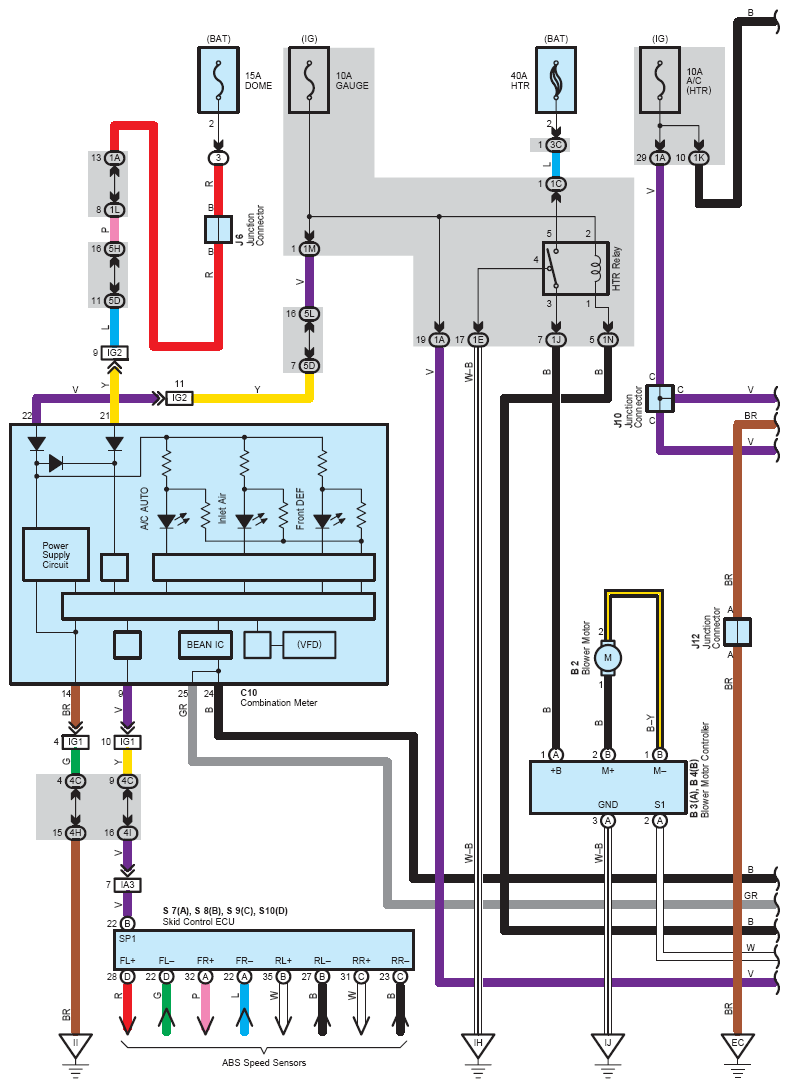

Fig 1: Air conditioning system wiring diagram (1 of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

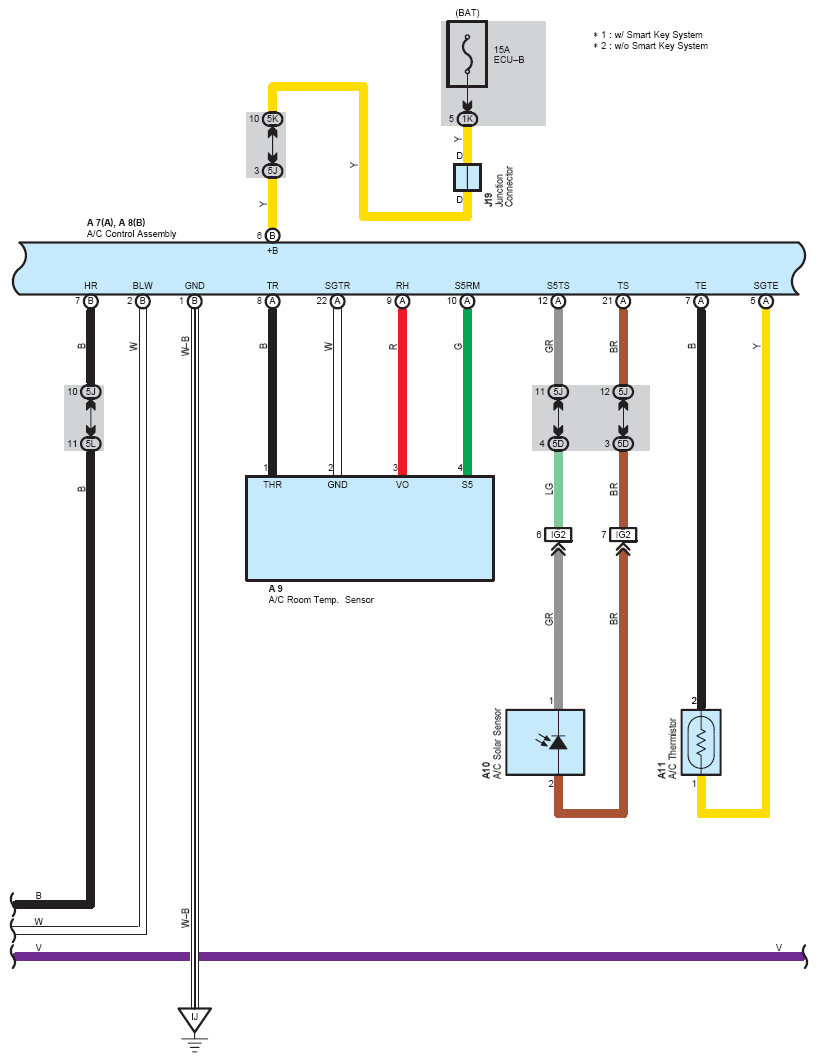

Fig 2: Air conditioning system wiring diagram (2 of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

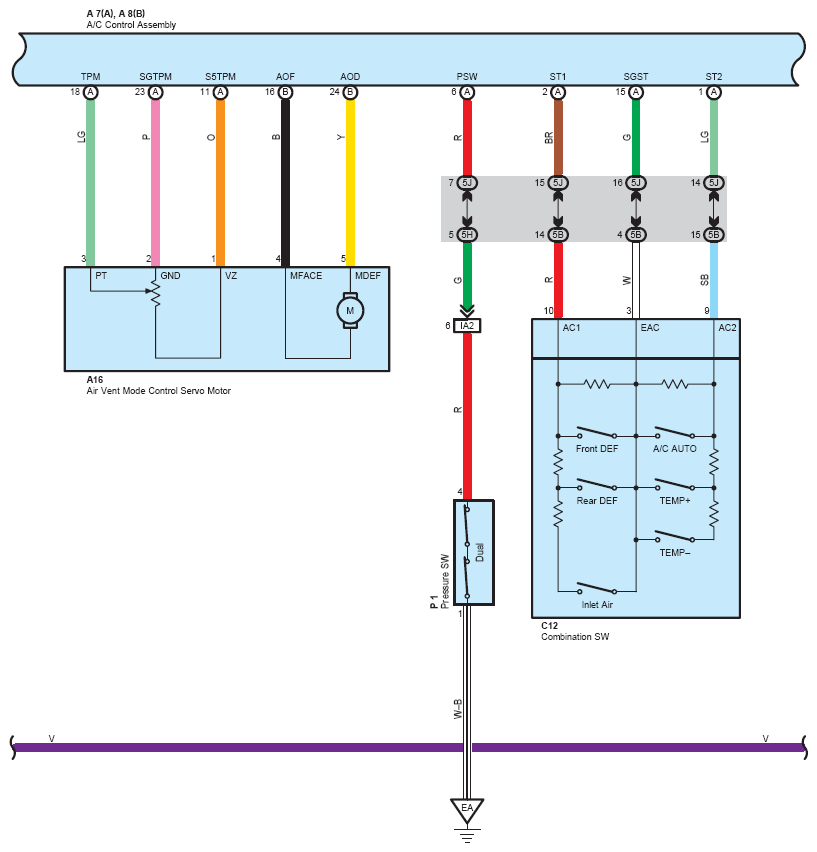

Fig 3: Air conditioning system wiring diagram (3 of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

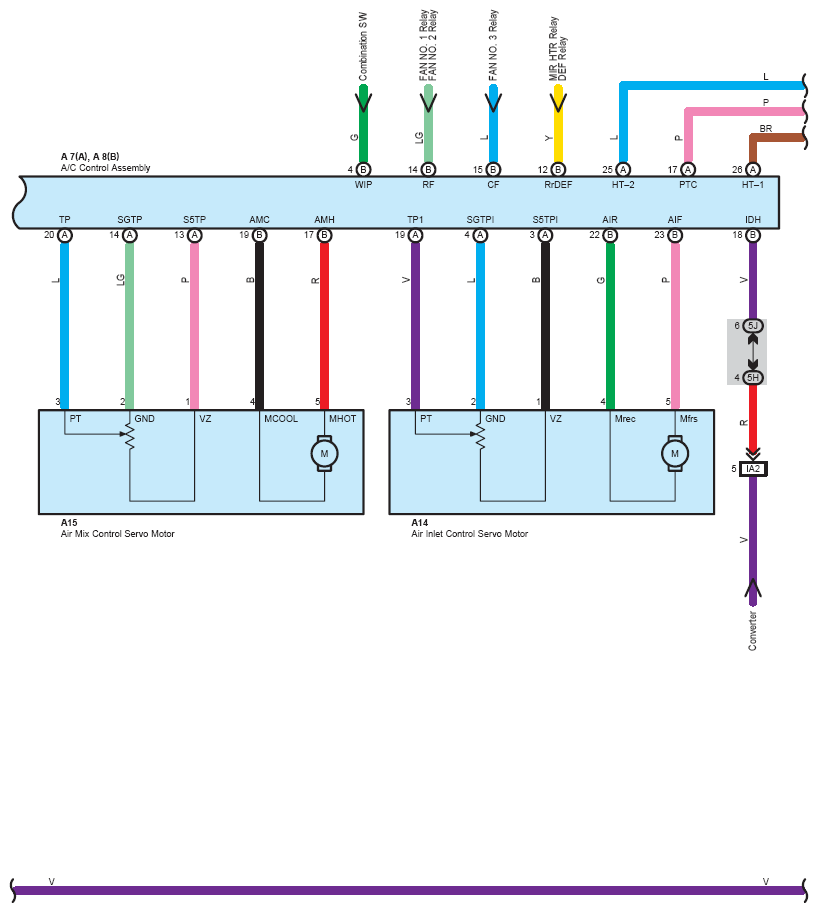

Fig 4: Air conditioning system wiring diagram (4 of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

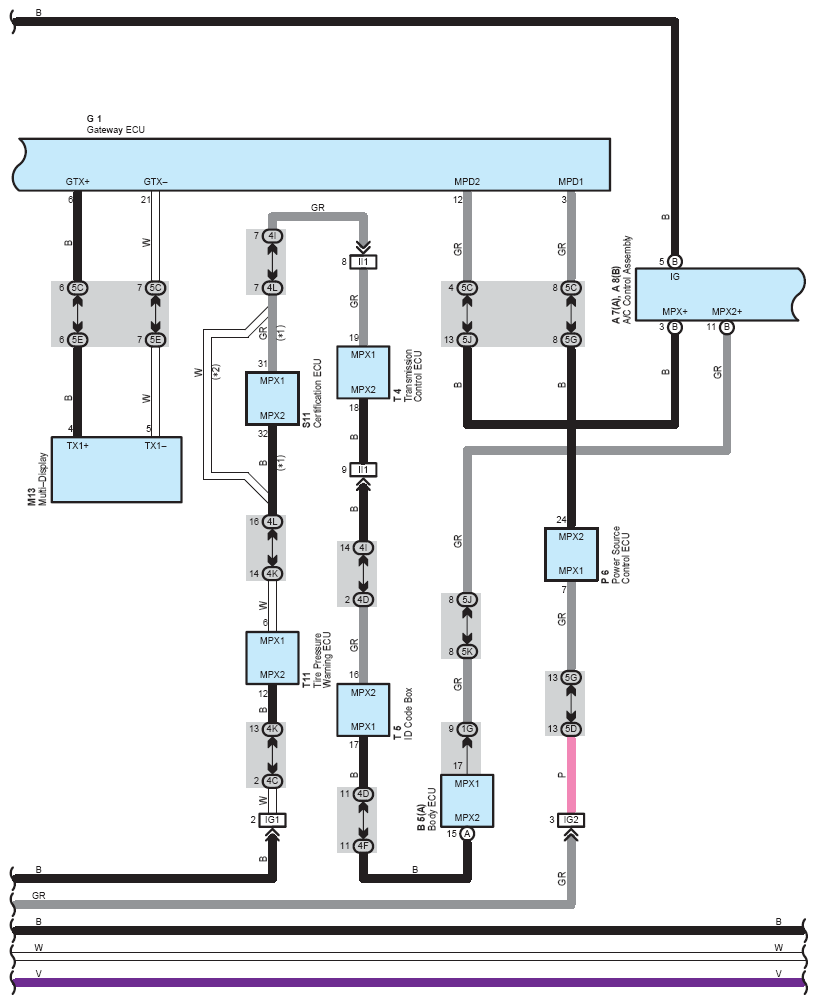

Fig 5: Air conditioning system wiring diagram (5 of 7)

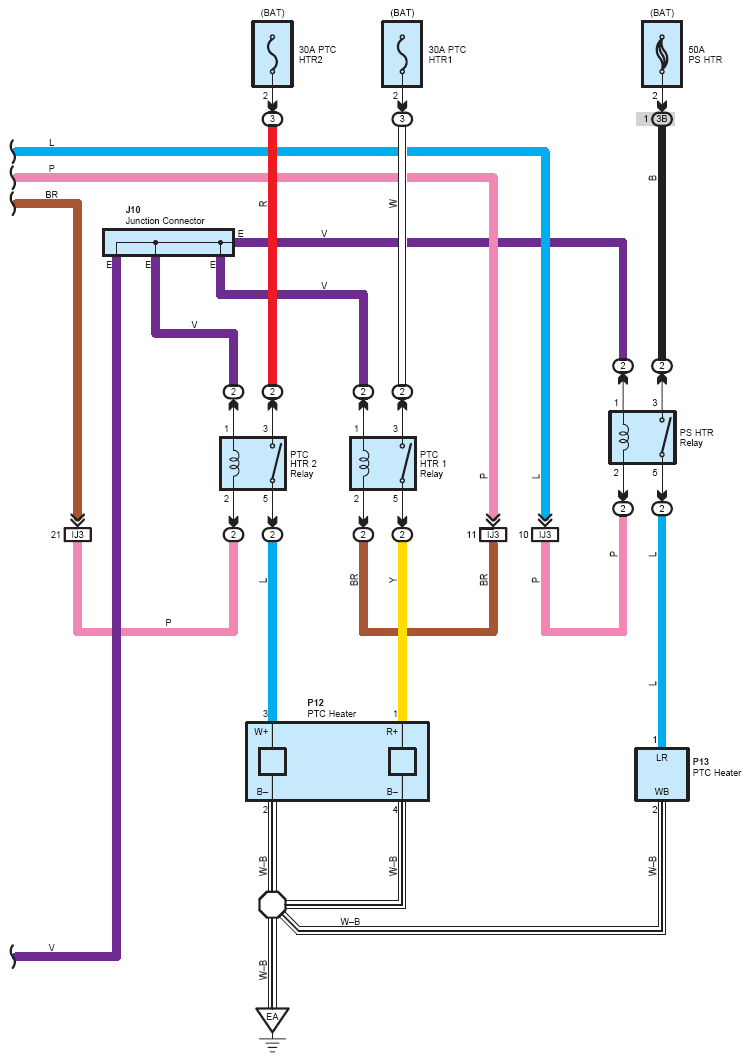

Fig 6: Air conditioning system wiring diagram (6 of 7)

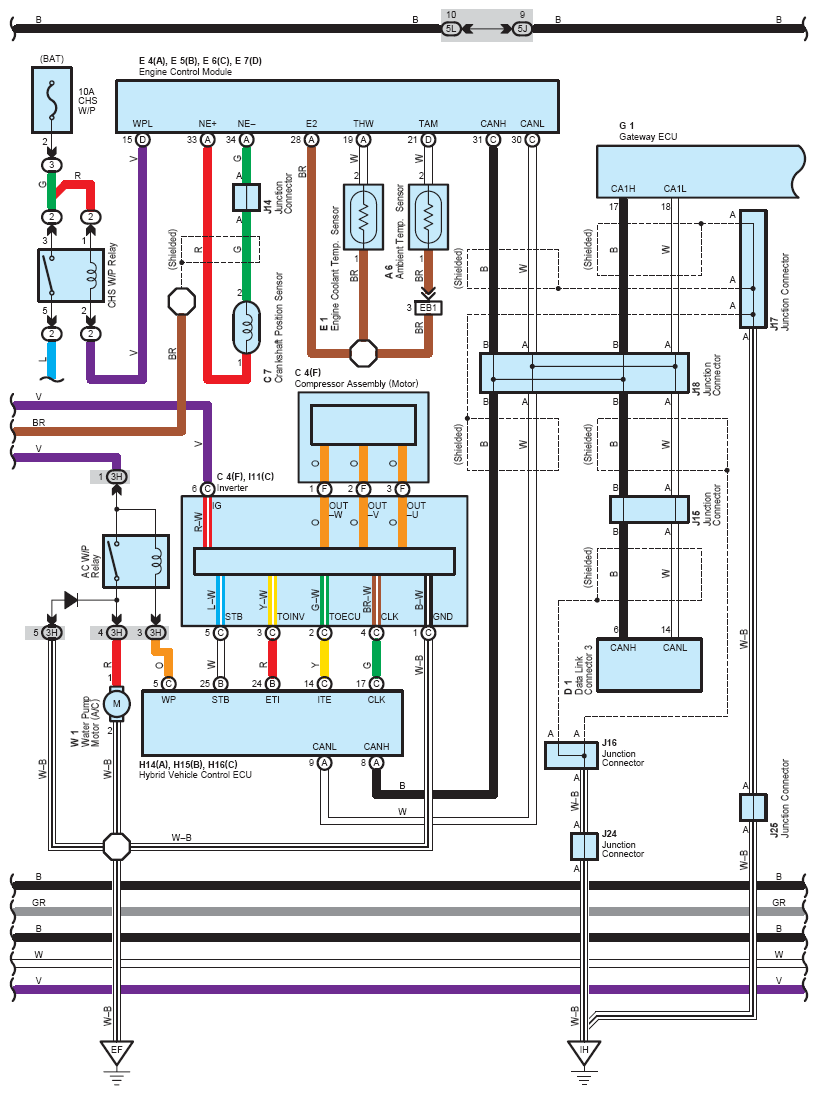

Fig 7: Air conditioning system wiring diagram (7 of 7)
