Combination Meter: Notes

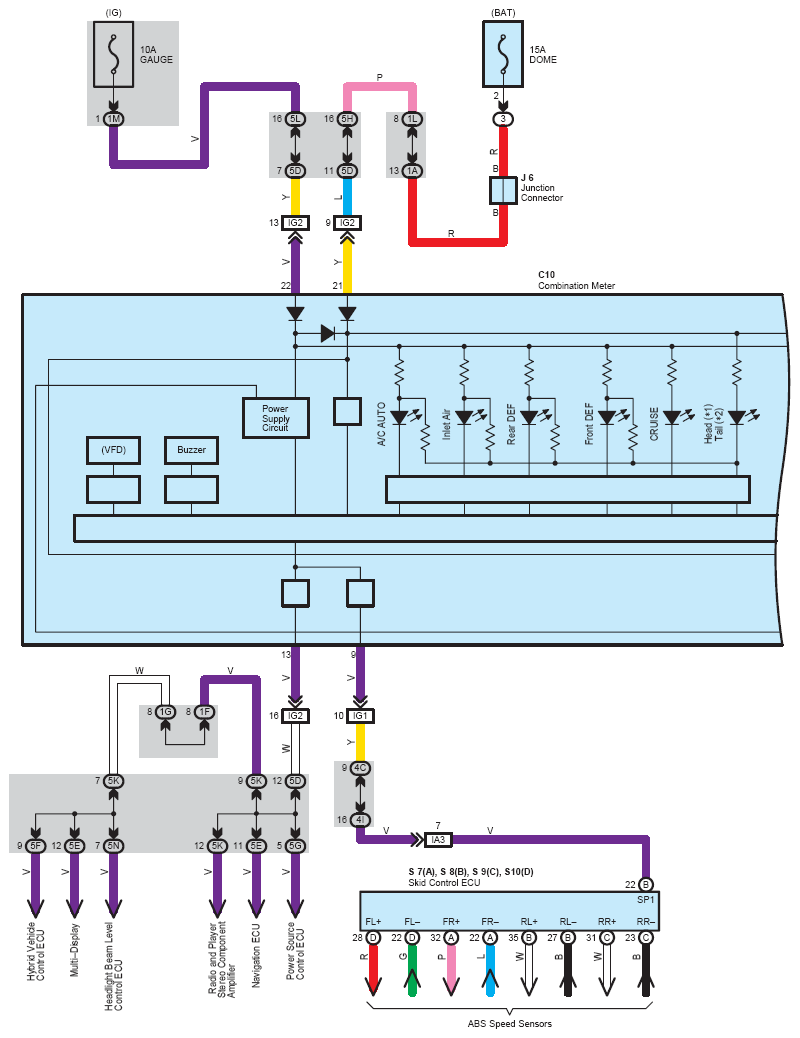

Fig 1: Combination meter system wiring diagram (1 of 4)
G08866171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

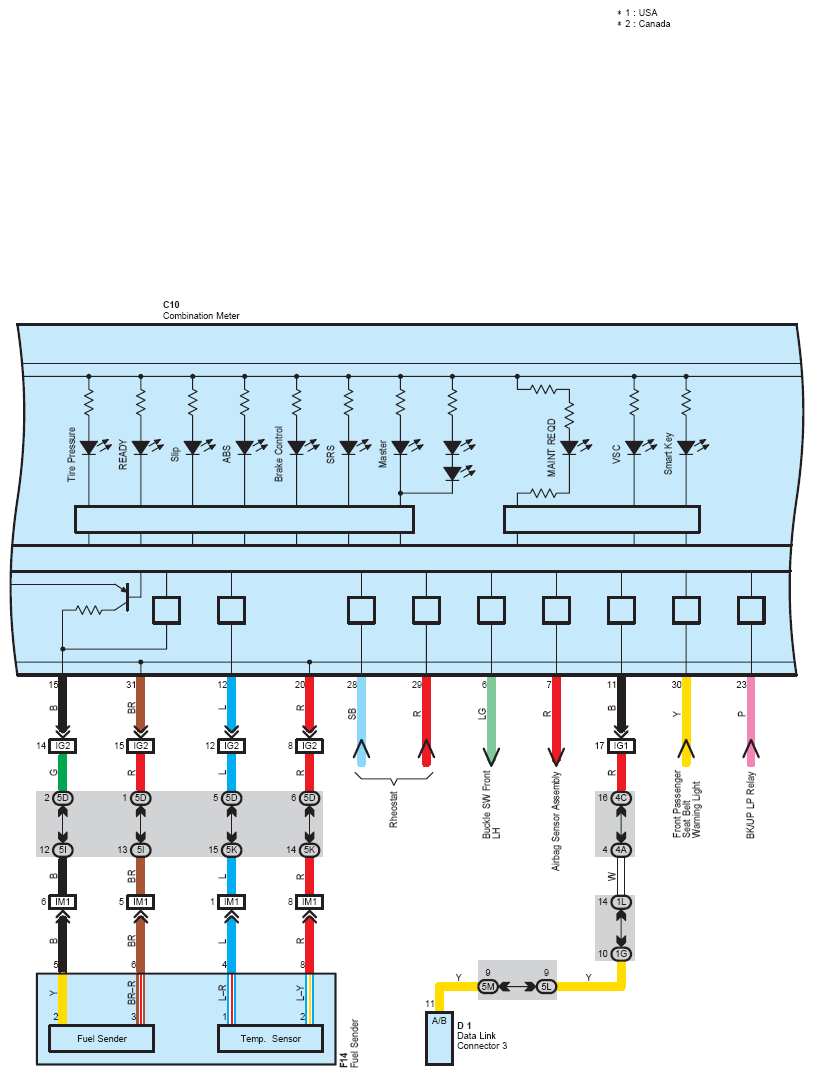

Fig 2: Combination meter system wiring diagram (2 of 4)
G08866172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

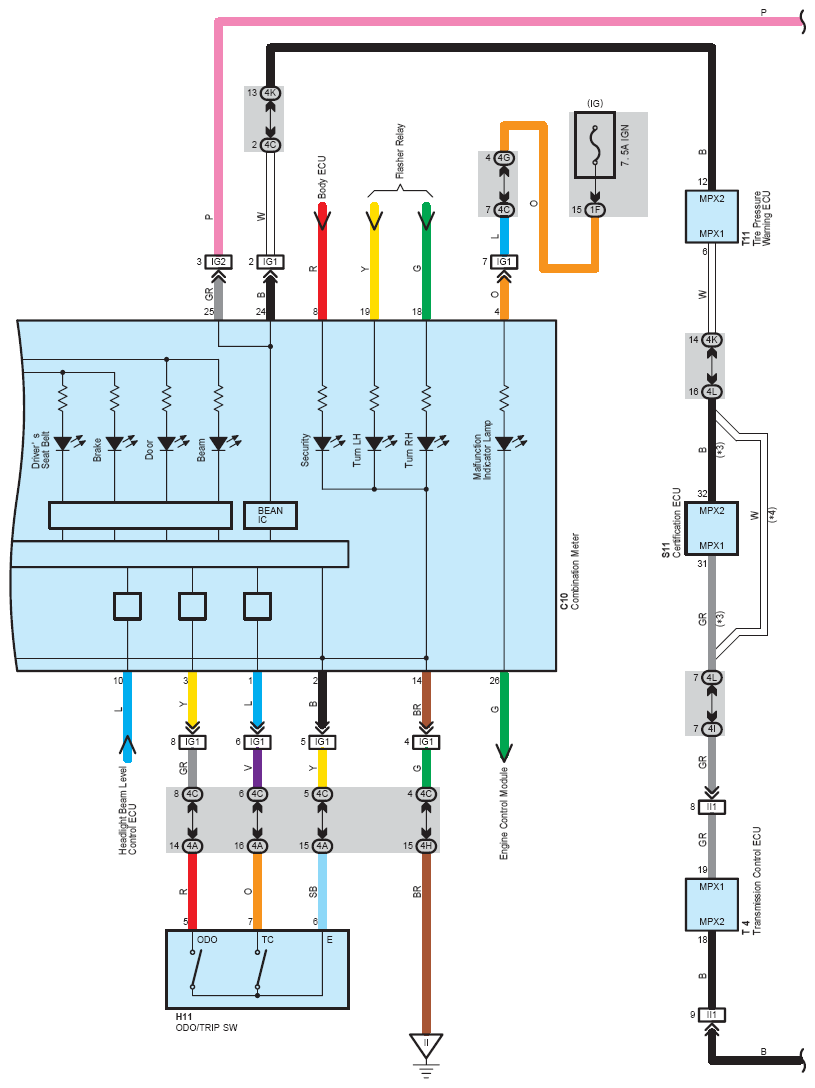

Fig 3: Combination meter system wiring diagram (3 of 4)
G08866173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

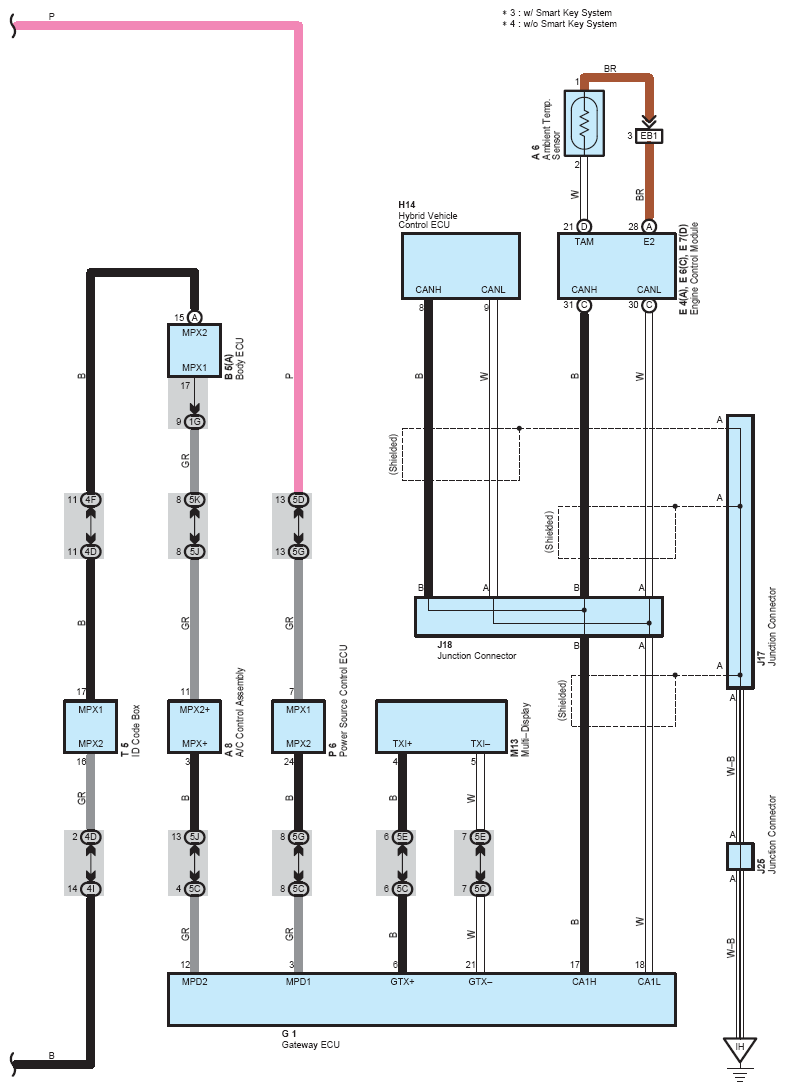

Fig 4: Combination meter system wiring diagram (4 of 4)
G08866174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
