Cruise Control: Notes

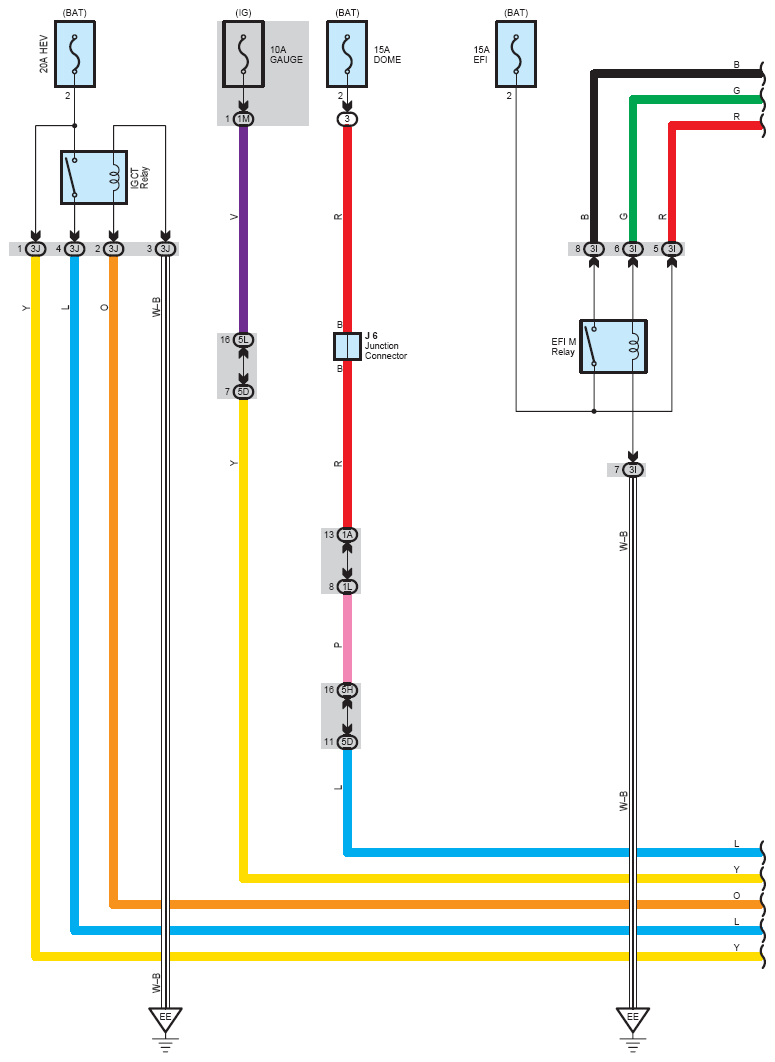

Fig 1: Cruise control system wiring diagram (1 of 10)
G08866119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

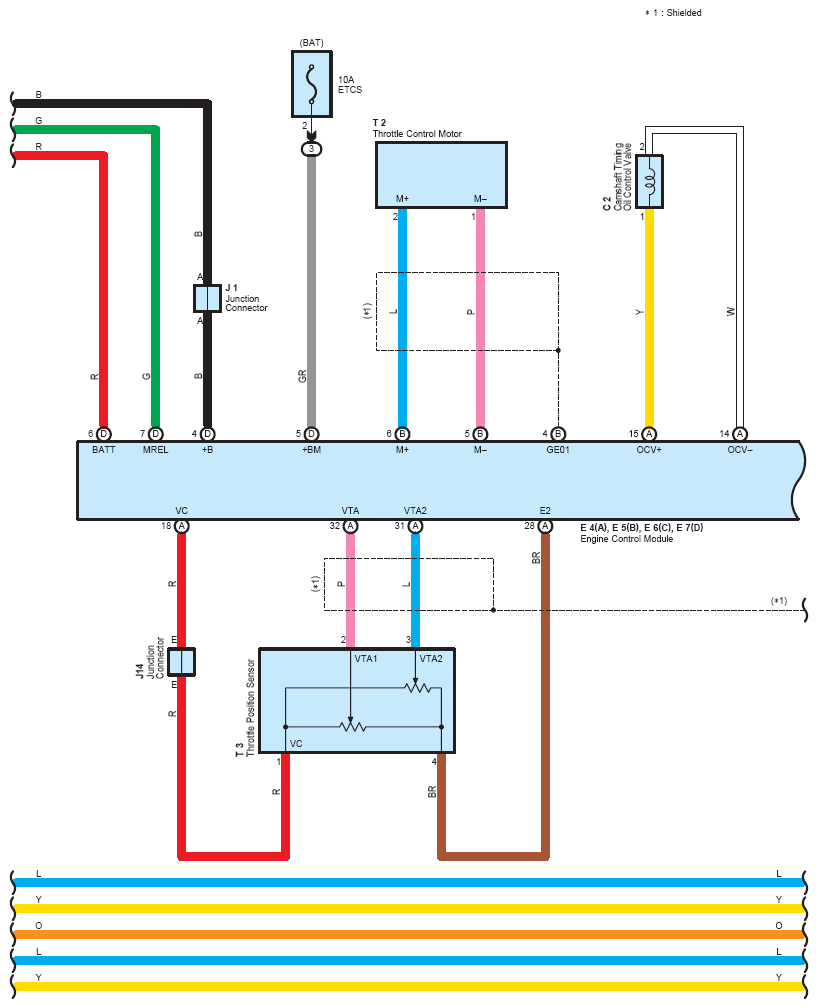

Fig 2: Cruise control system wiring diagram (2 of 10)
G08866120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

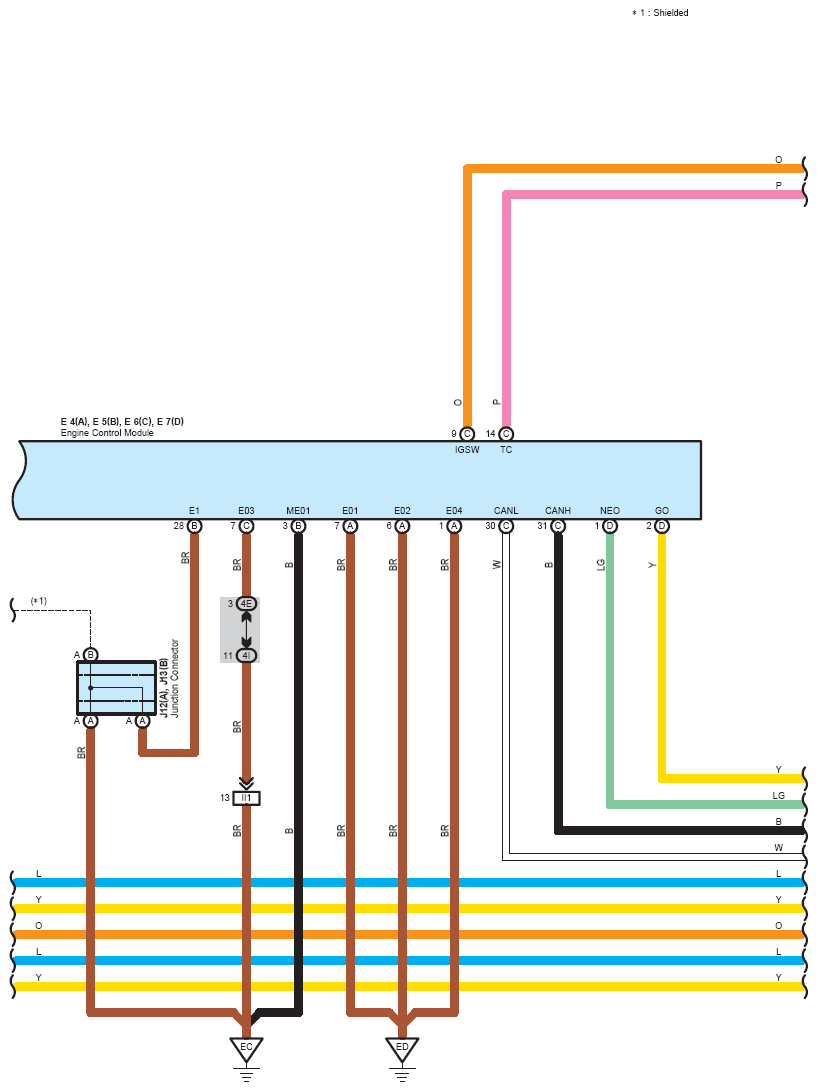

Fig 3: Cruise control system wiring diagram (3 of 10)
G08866121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

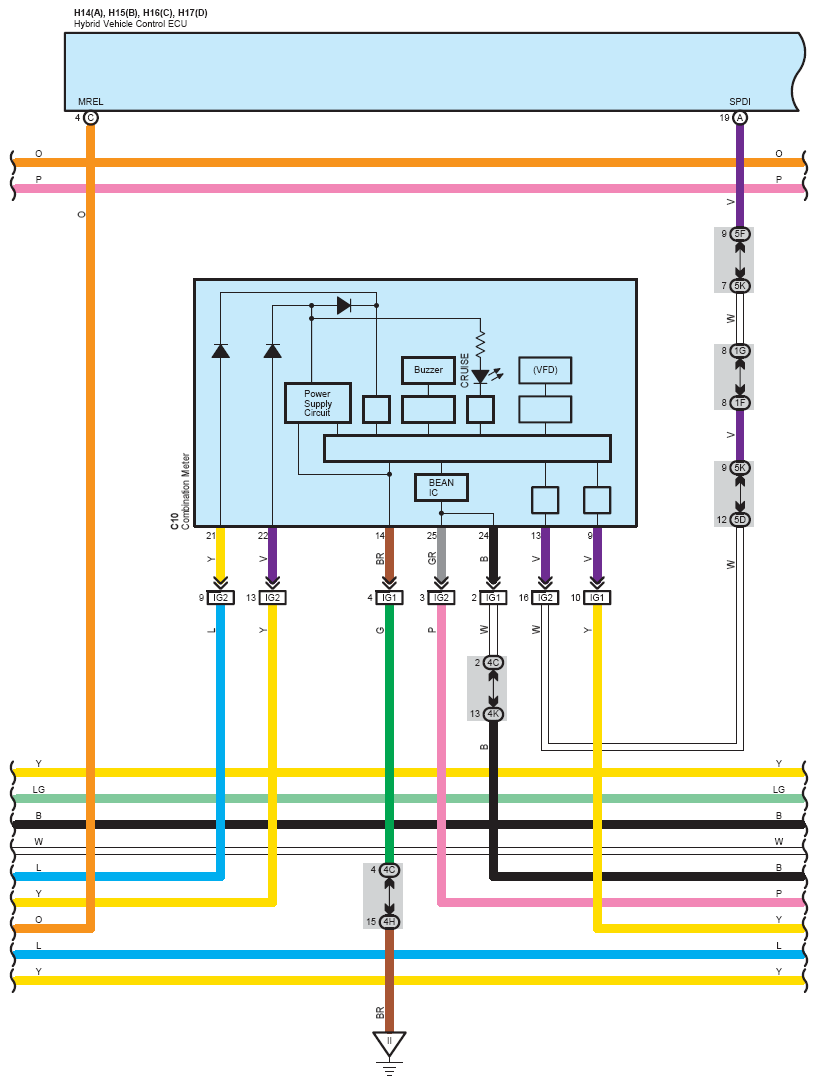

Fig 4: Cruise control system wiring diagram (4 of 10)
G08866122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

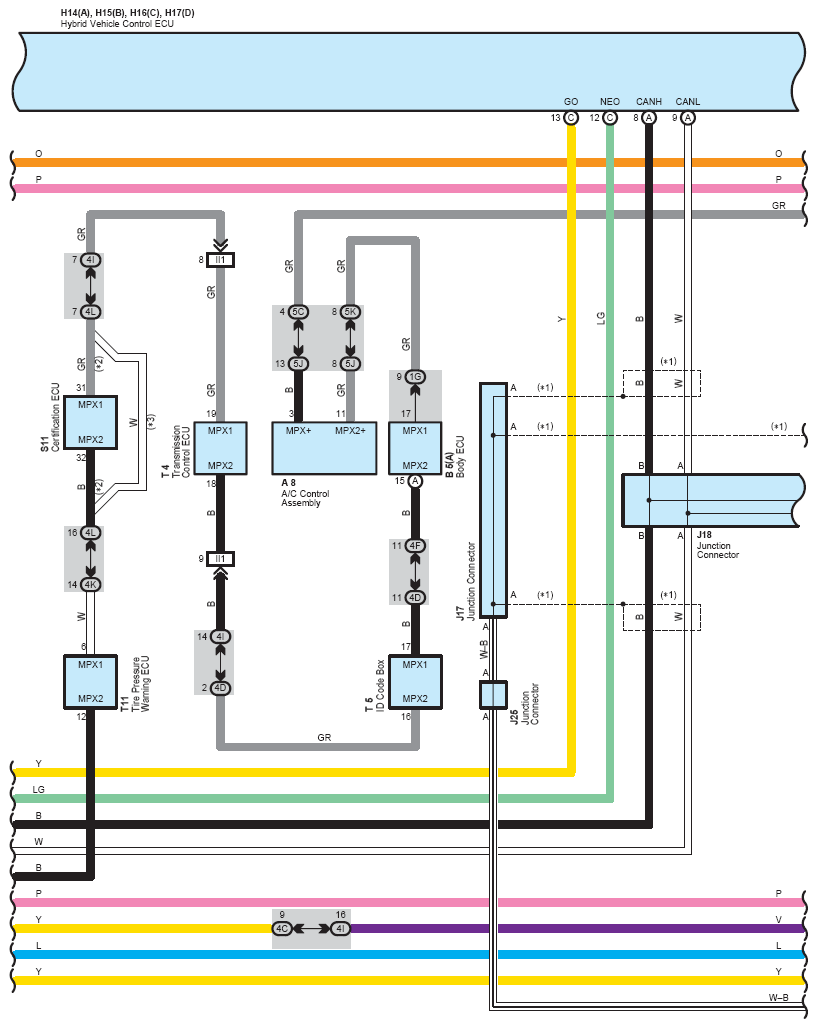

Fig 5: Cruise control system wiring diagram (5 of 10)
G08866123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

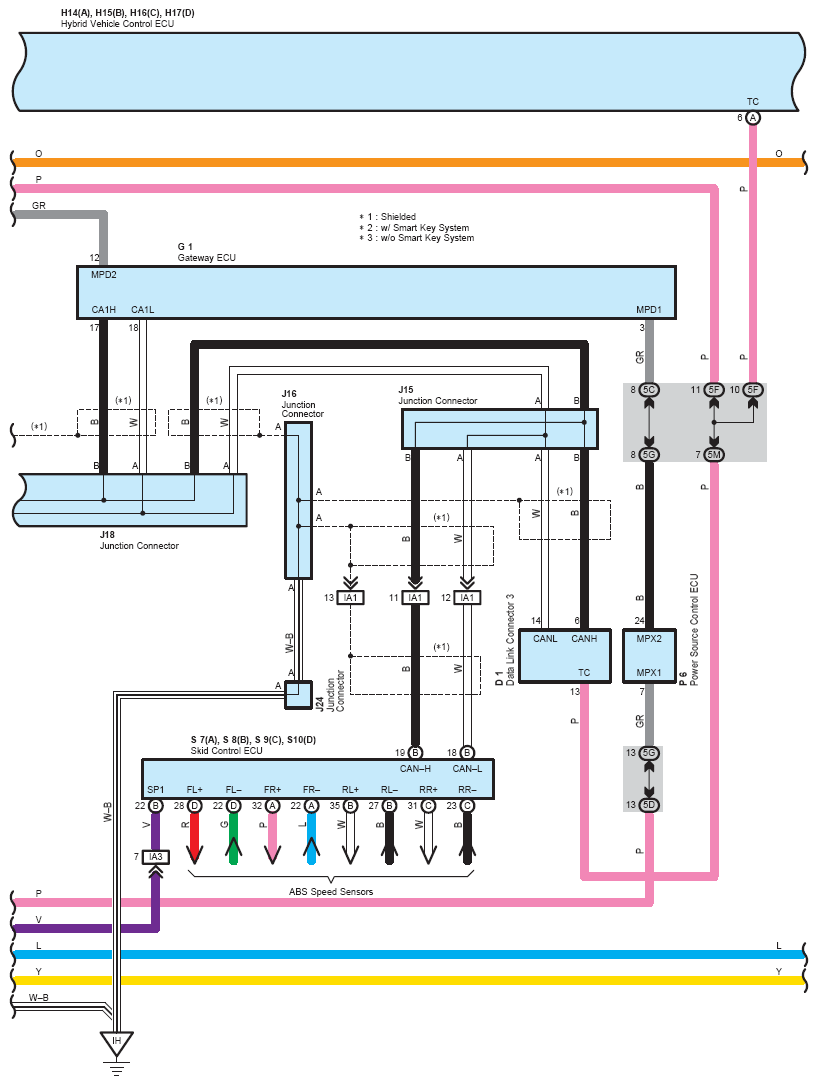

Fig 6: Cruise control system wiring diagram (6 of 10)
G08866124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

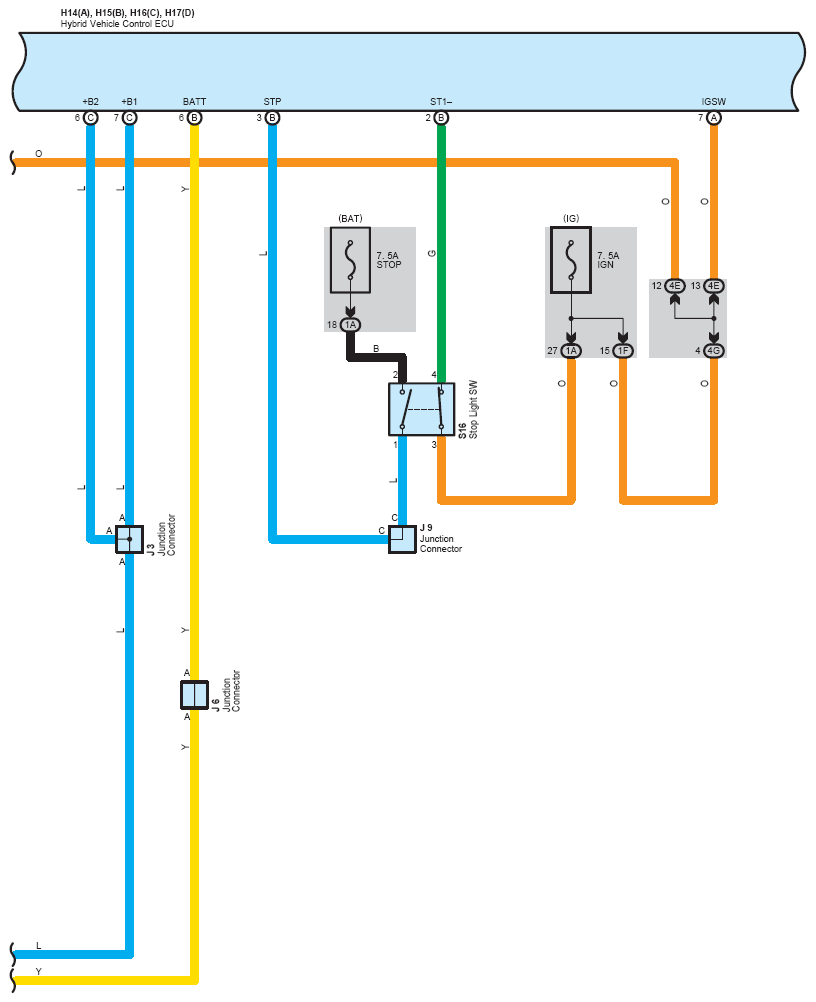

Fig 7: Cruise control system wiring diagram (7 of 10)
G08866125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

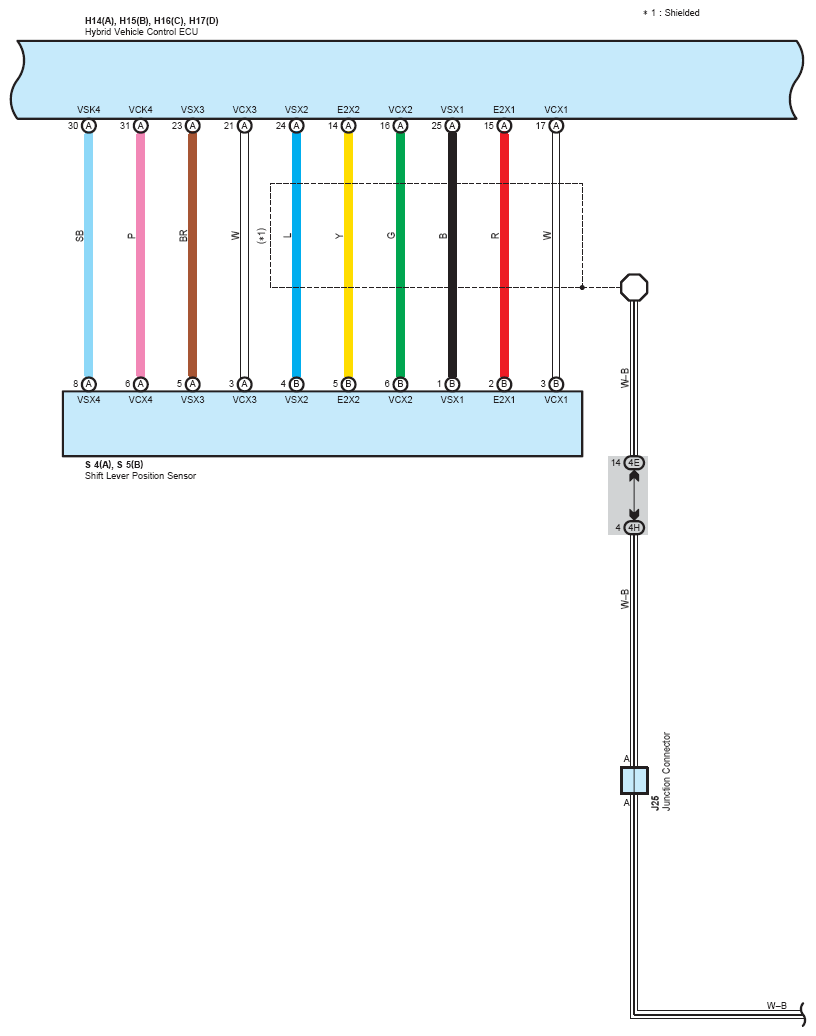

Fig 8: Cruise control system wiring diagram (8 of 10)
G08866126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

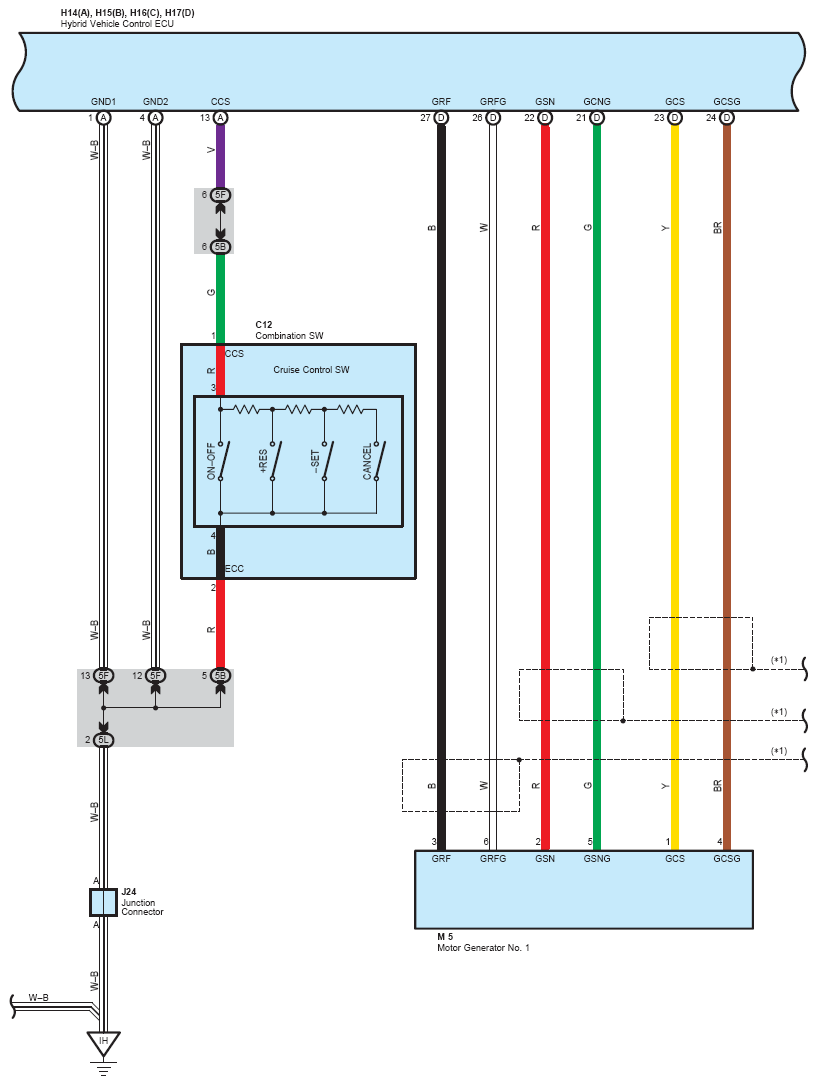

Fig 9: Cruise control system wiring diagram (9 of 10)
G08866127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

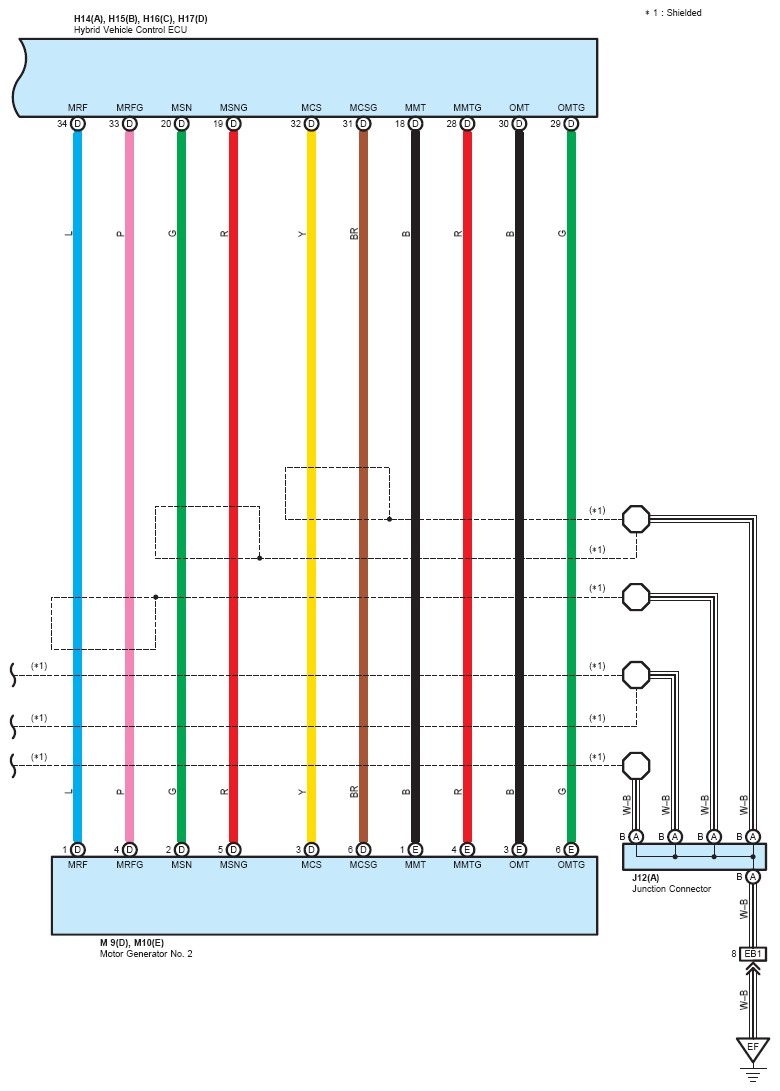

Fig 10: Cruise control system wiring diagram (10 of 10)
G08866128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
