Engine Control: Notes

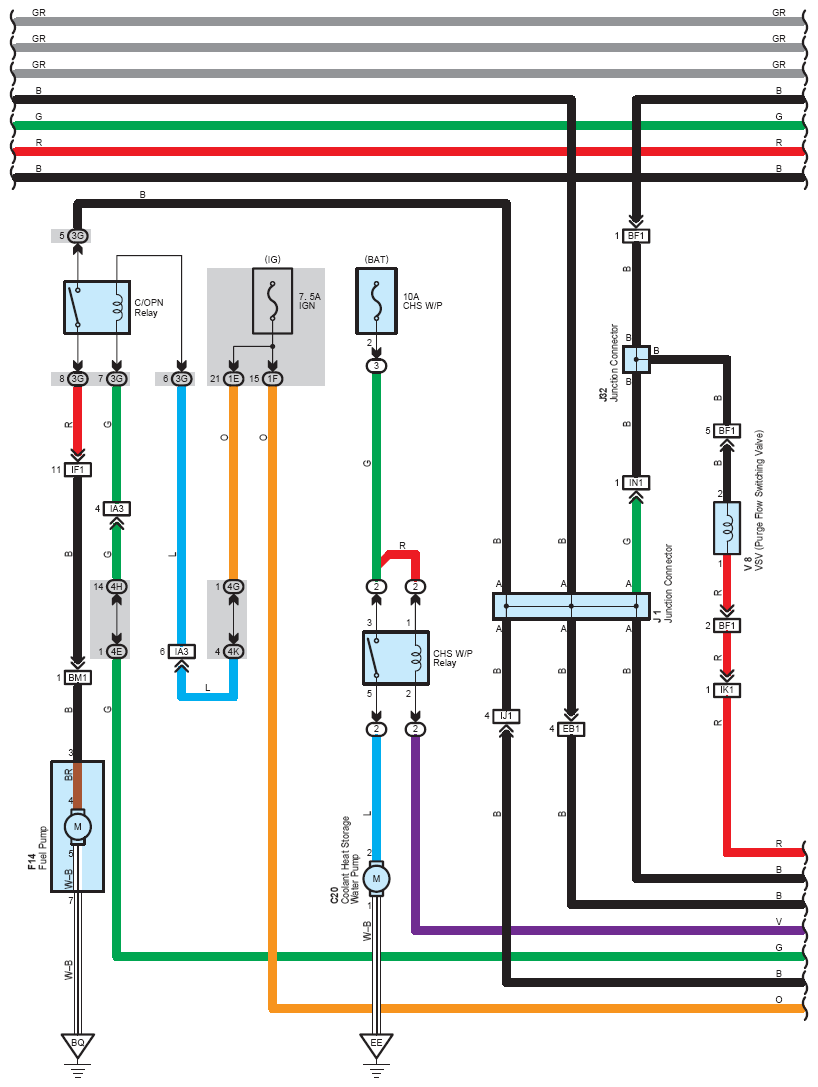

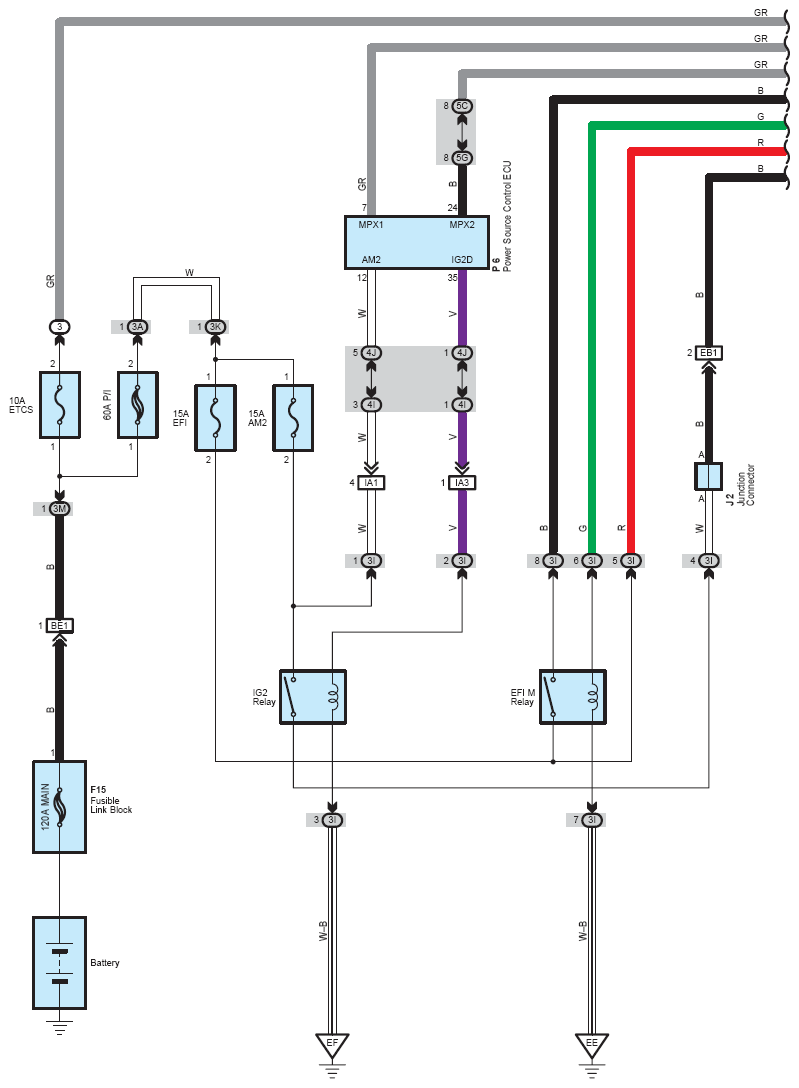

Fig 1: Engine control system wiring diagram (1 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

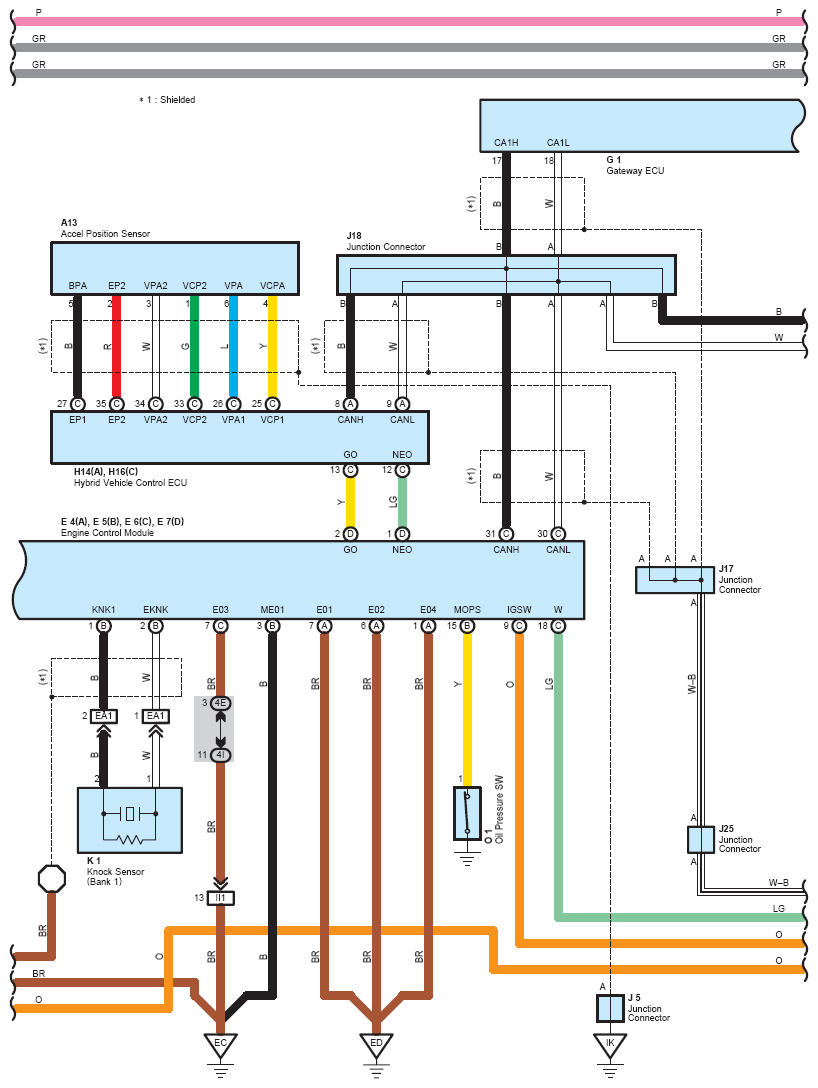

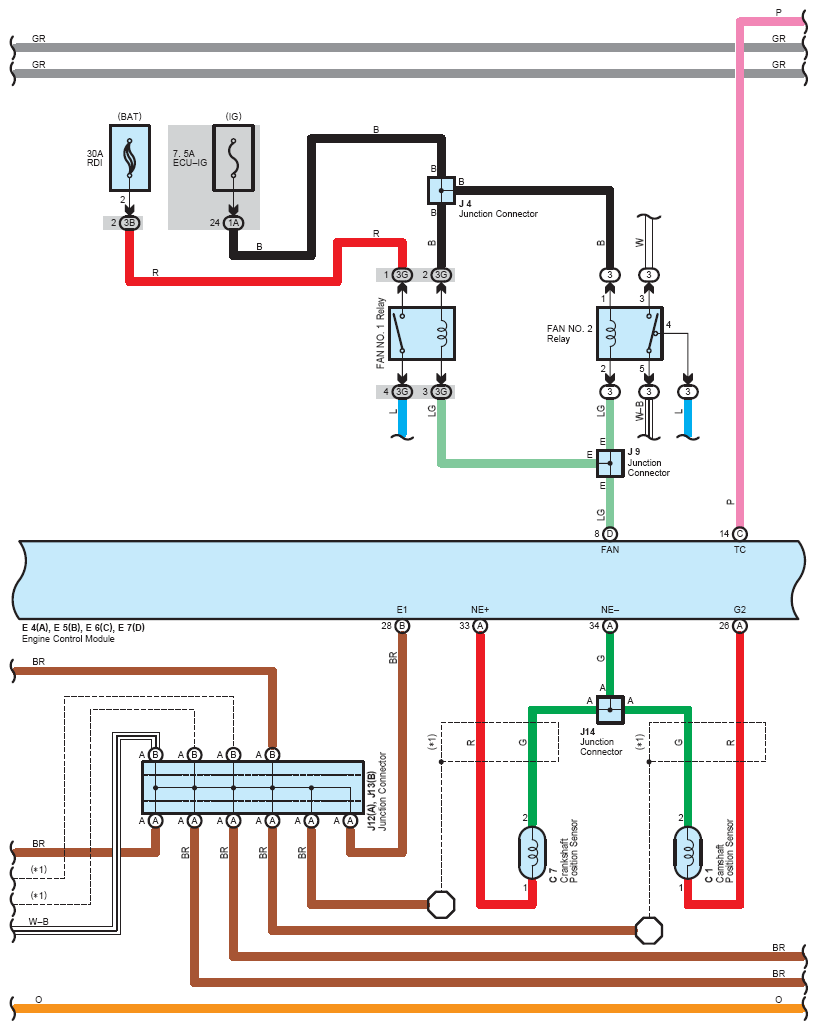

Fig 2: Engine control system wiring diagram (2 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

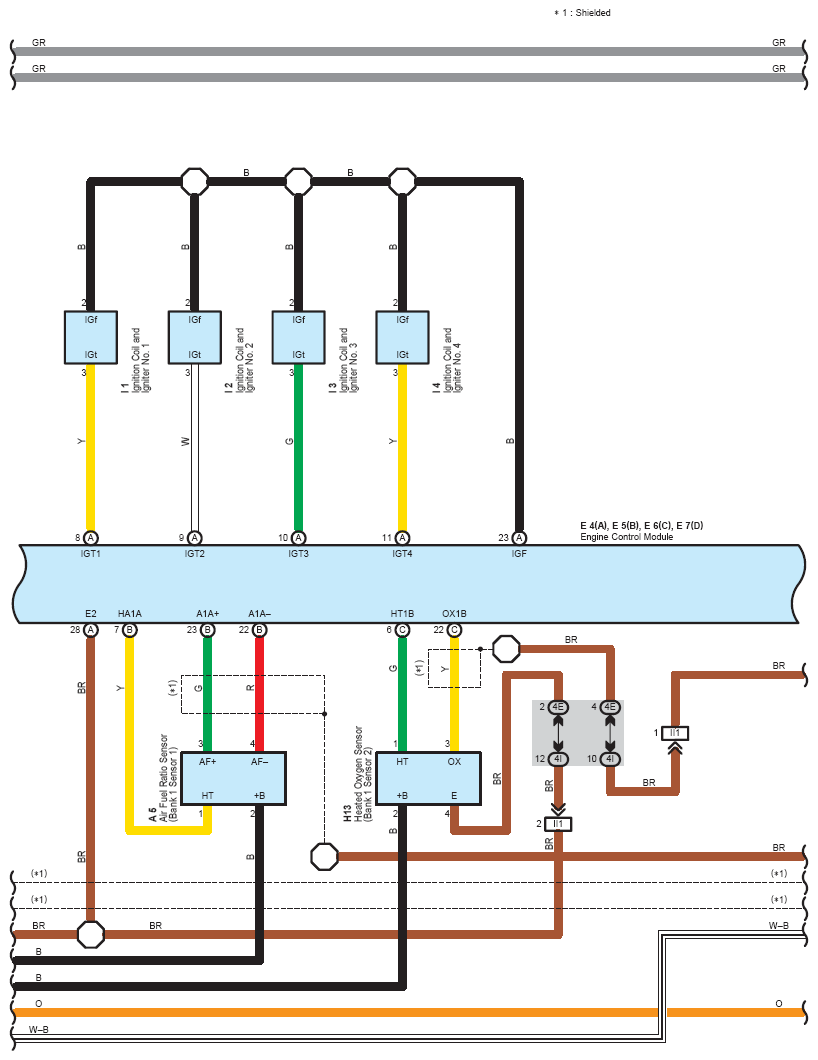

Fig 3: Engine control system wiring diagram (3 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

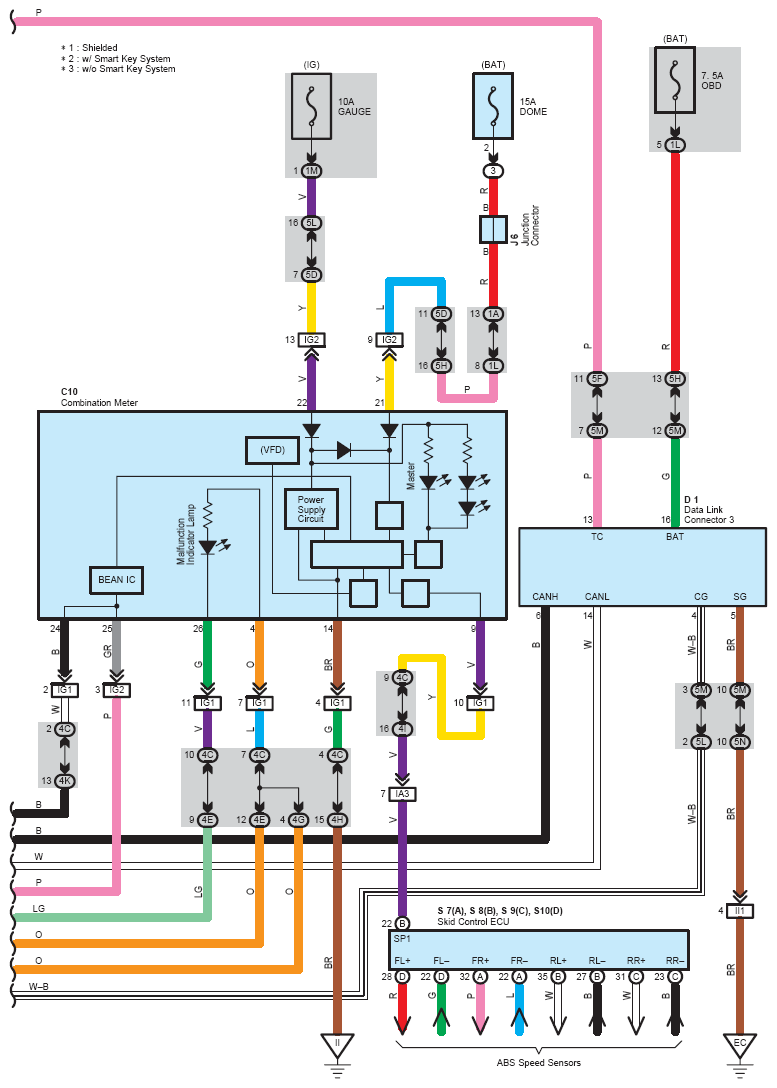

Fig 4: Engine control system wiring diagram (4 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

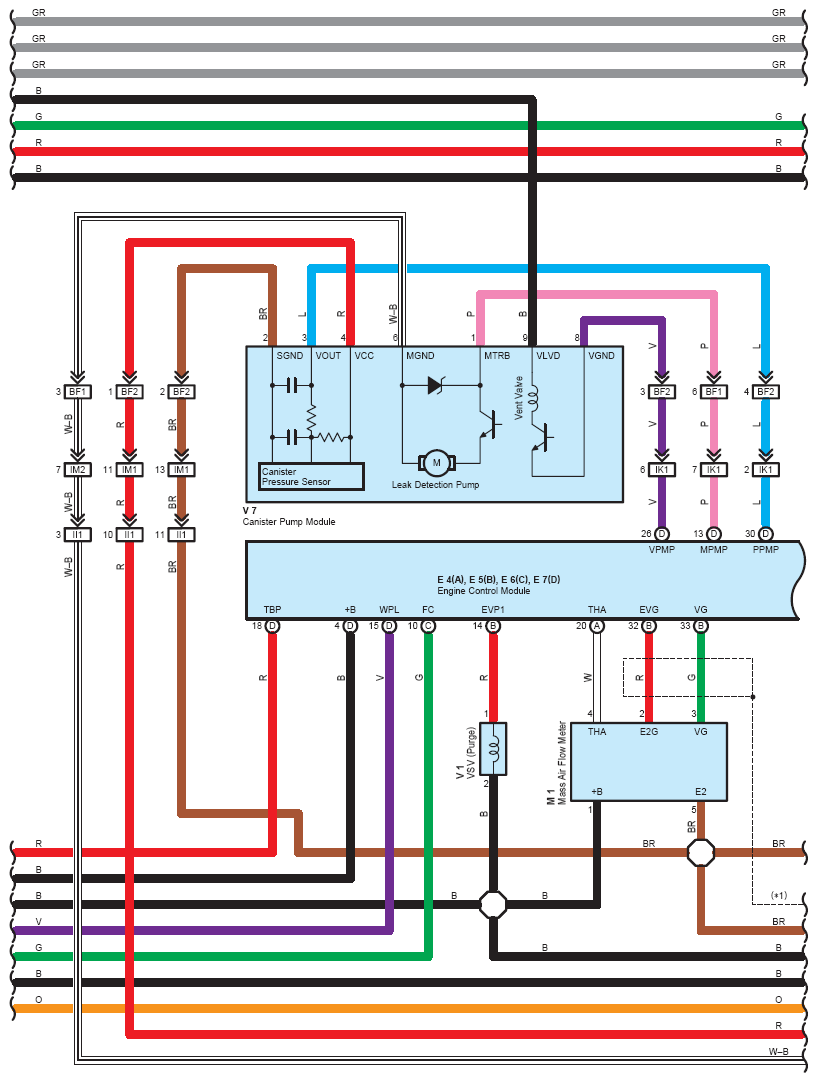

Fig 5: Engine control system wiring diagram (5 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

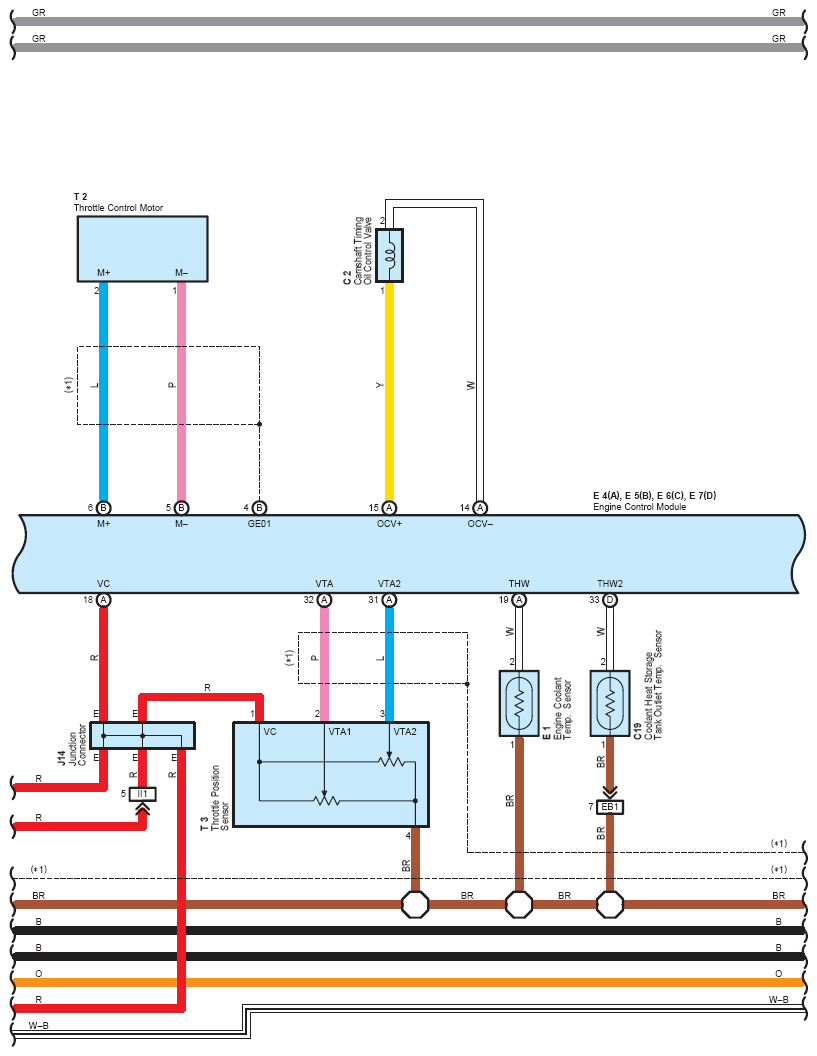

Fig 6: Engine control system wiring diagram (6 of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

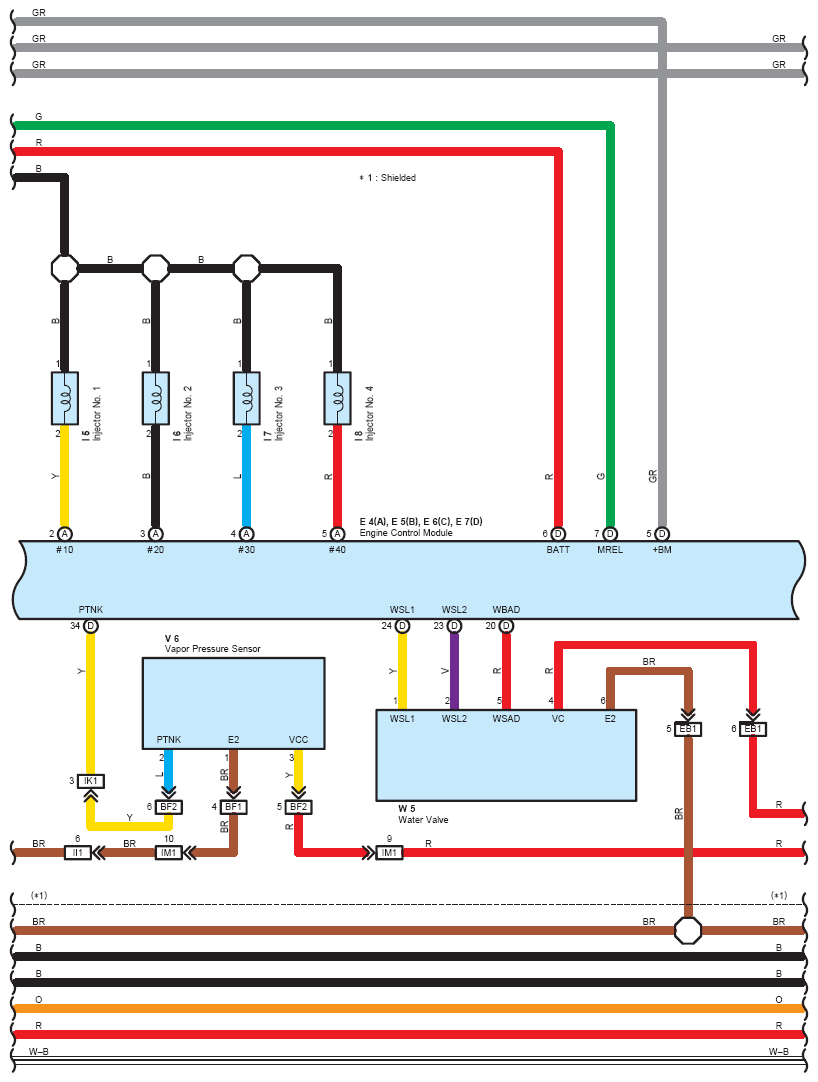

Fig 7: Engine control system wiring diagram (7 of 10)

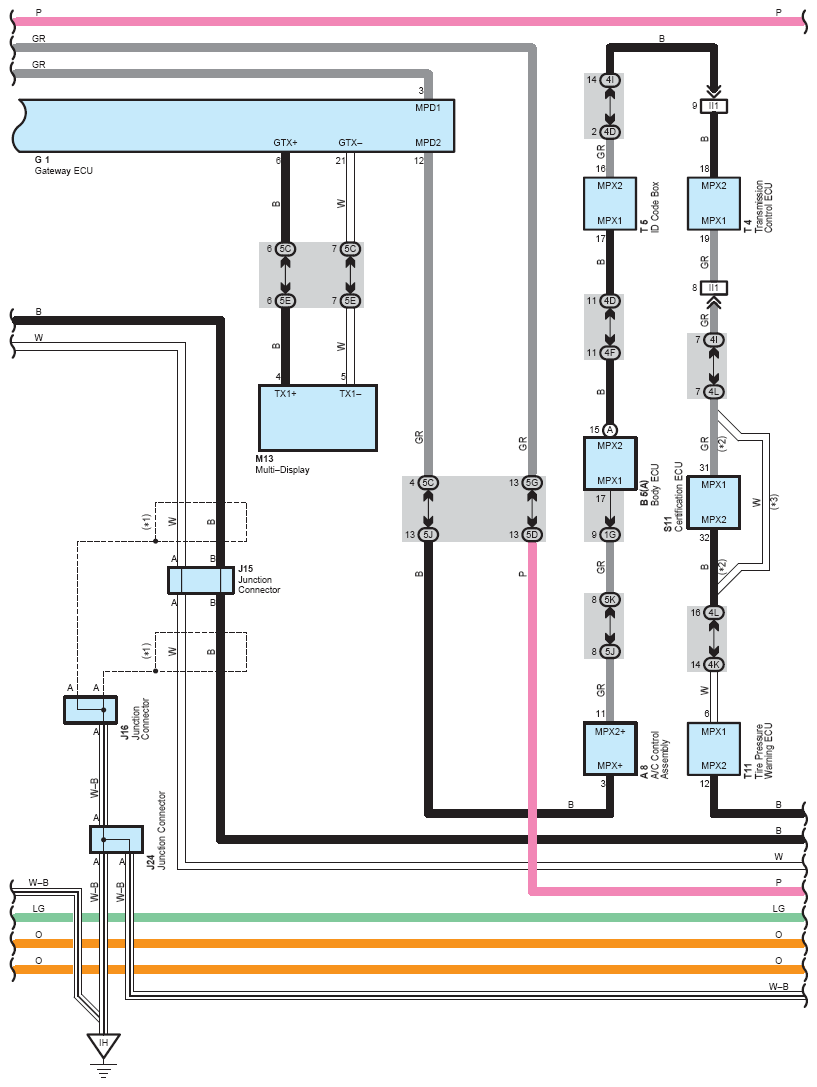

Fig 8: Engine control system wiring diagram (8 of 10)

Fig 9: Engine control system wiring diagram (9 of 10)

Fig 10: Engine control system wiring diagram (10 of 10)
