OEM System Circuits: Headlight: Notes

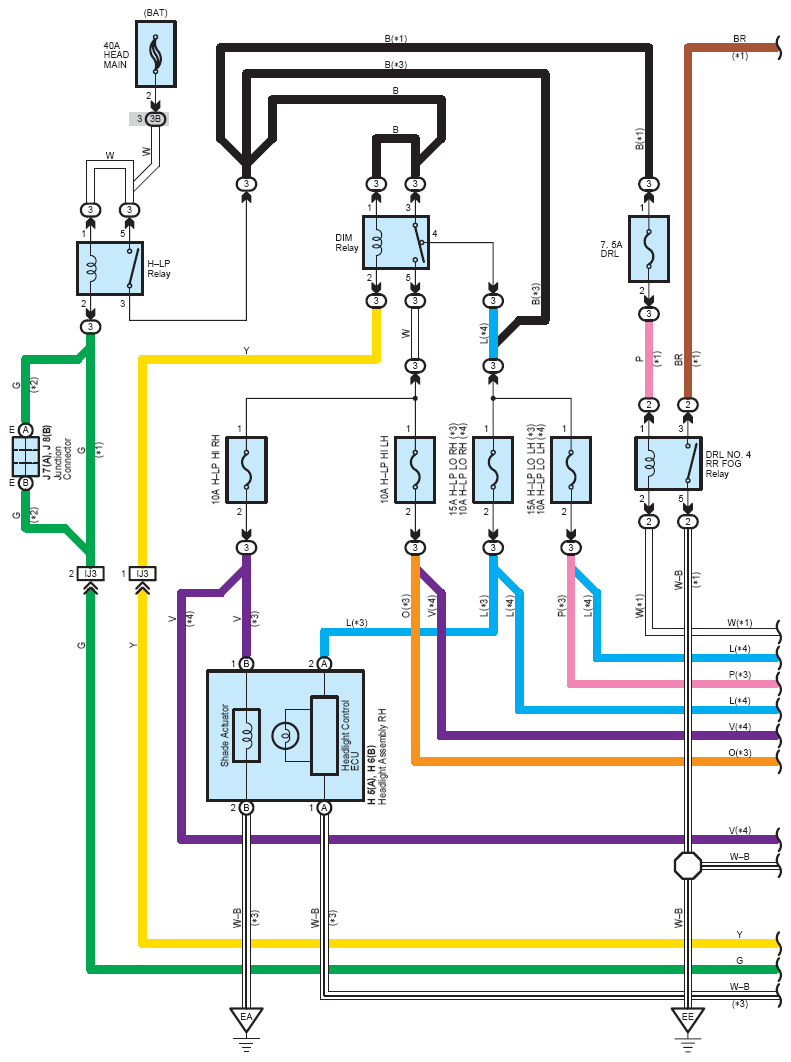

Fig 1: Headlight system wiring diagram (1 of 5)

G08866046

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

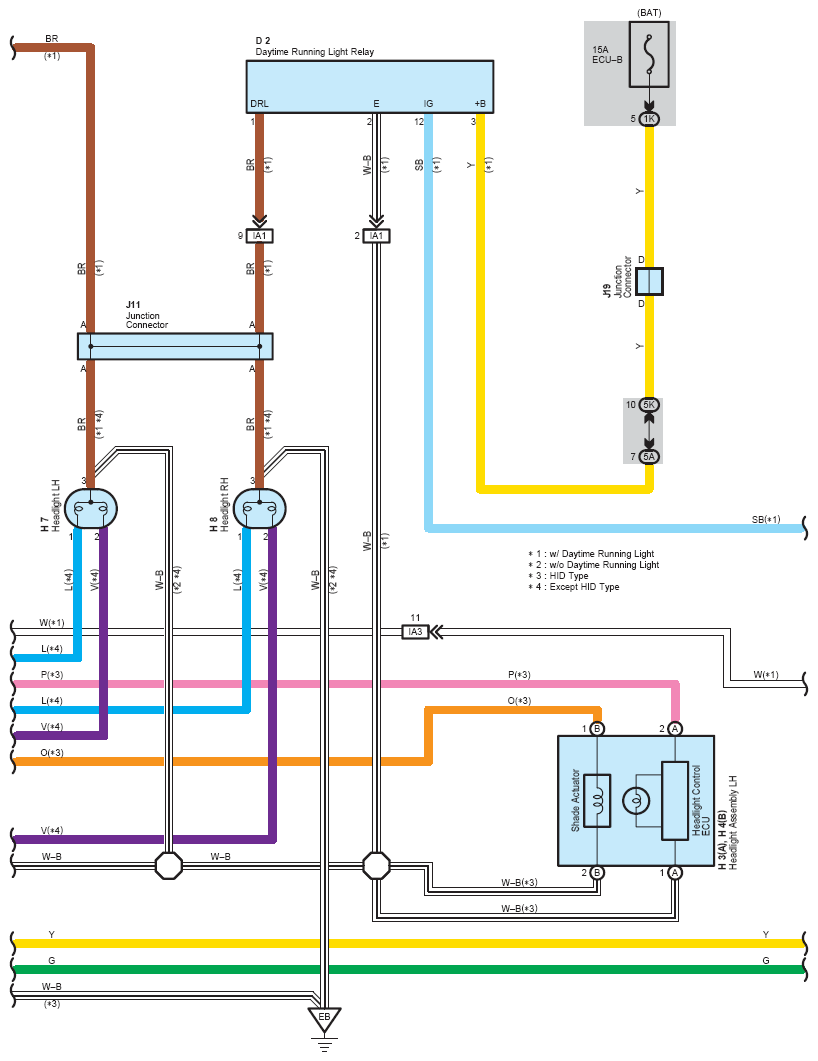

Fig 2: Headlight system wiring diagram (2 of 5)

G08866047

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

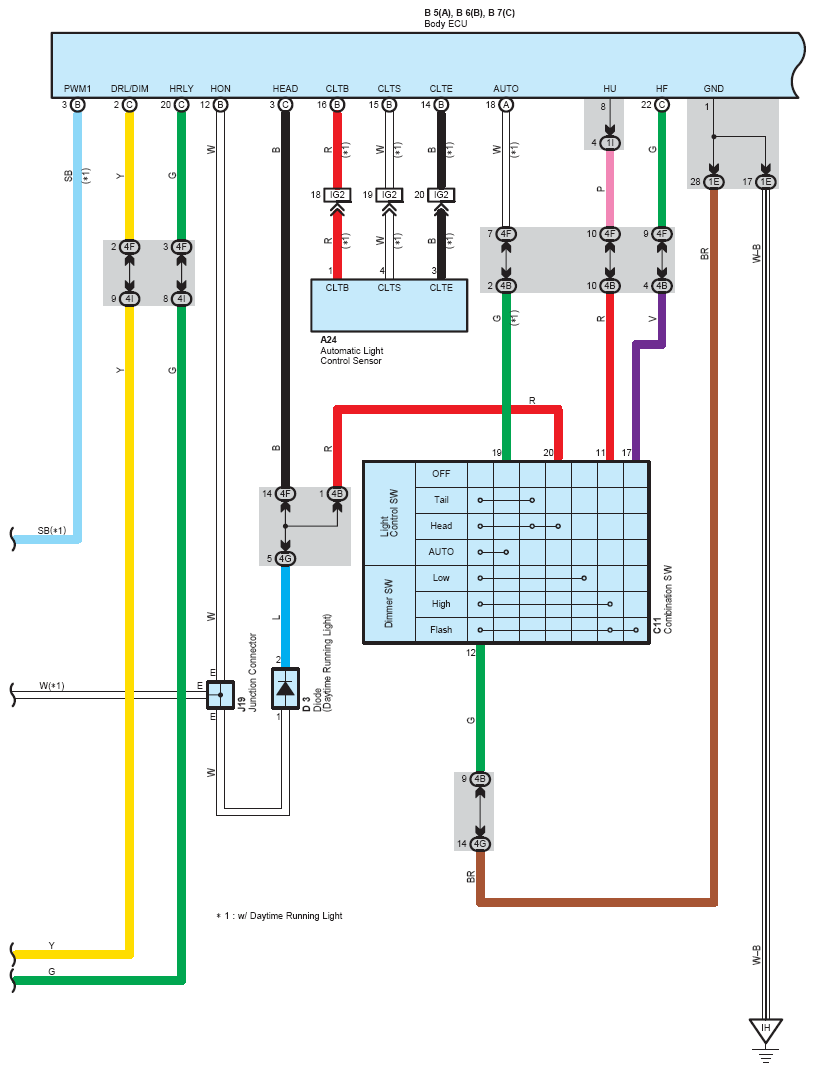

Fig 3: Headlight system wiring diagram (3 of 5)

G08866048

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

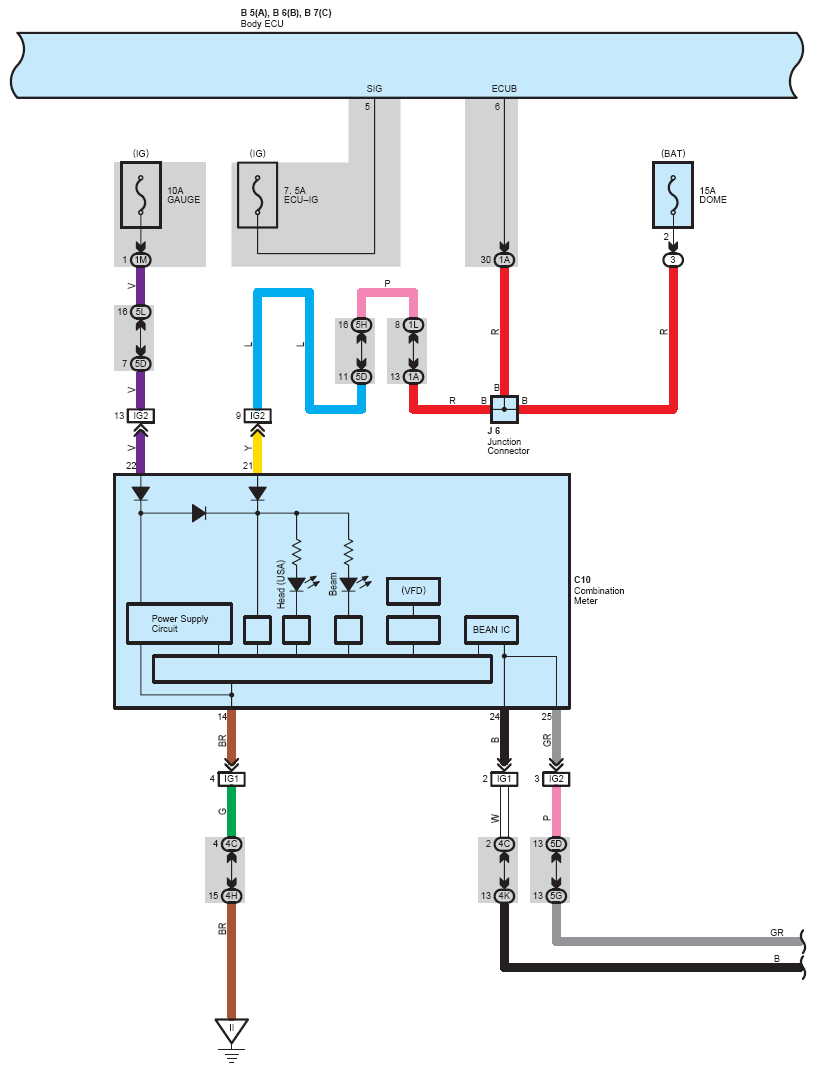

Fig 4: Headlight system wiring diagram (4 of 5)

G08866049

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

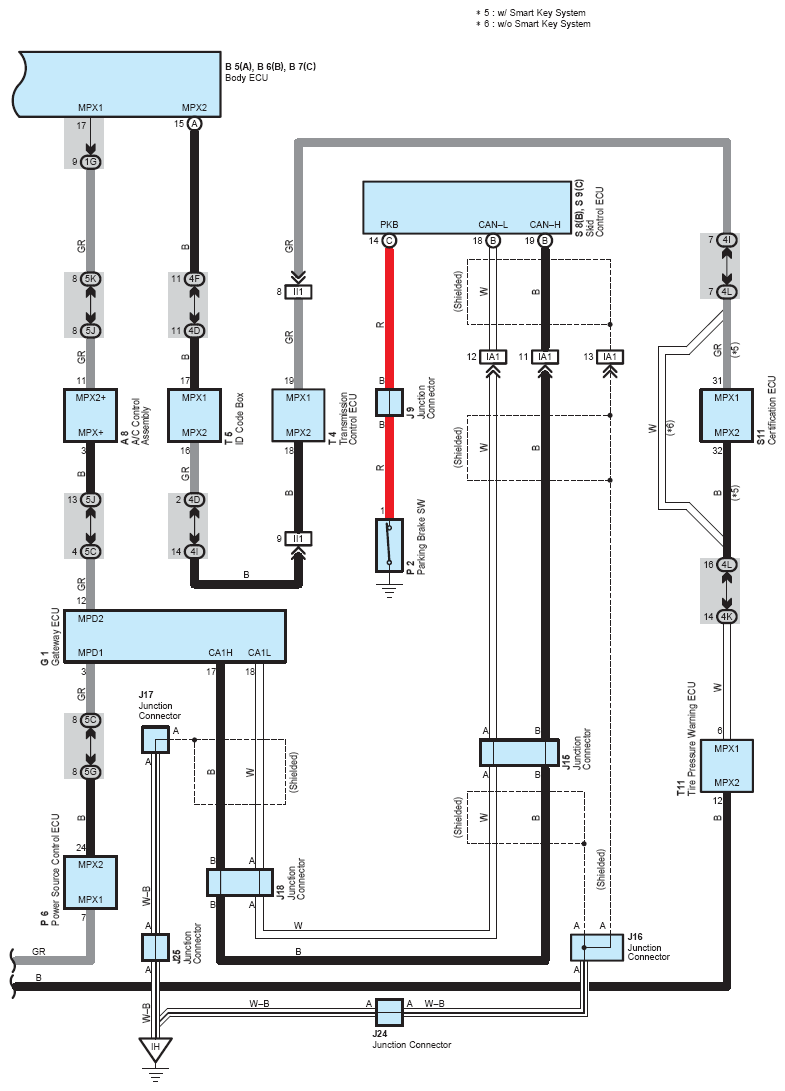

Fig 5: Headlight system wiring diagram (5 of 5)

G08866050

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
