Multiplex Communication System - AVC-LAN Bus: Notes

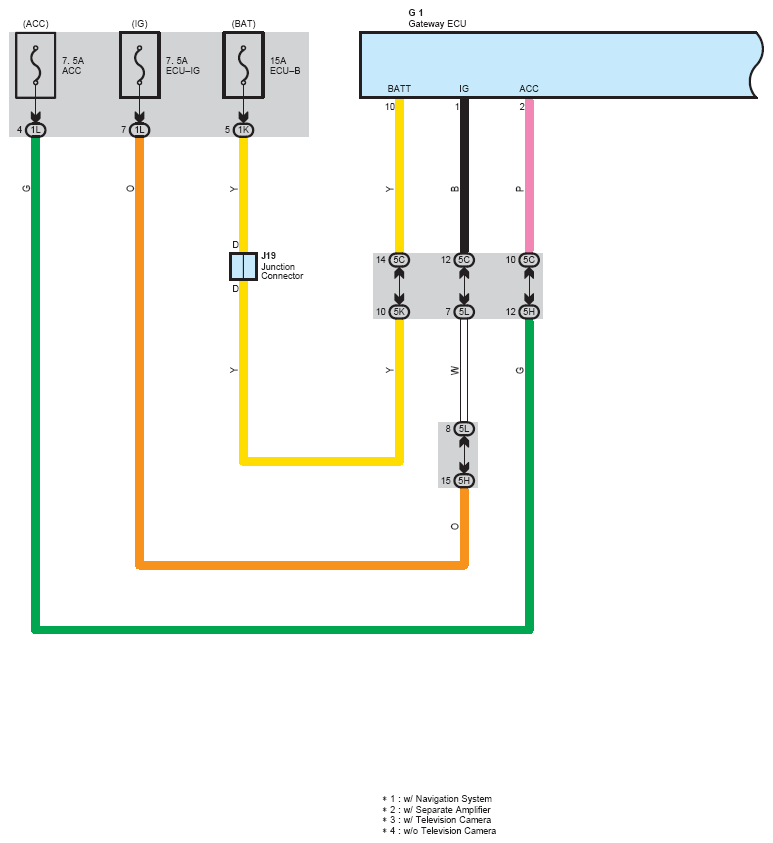

Fig 1: Multiplex communication system - avc-lan bus system wiring diagram (1 of 2)
G08865996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

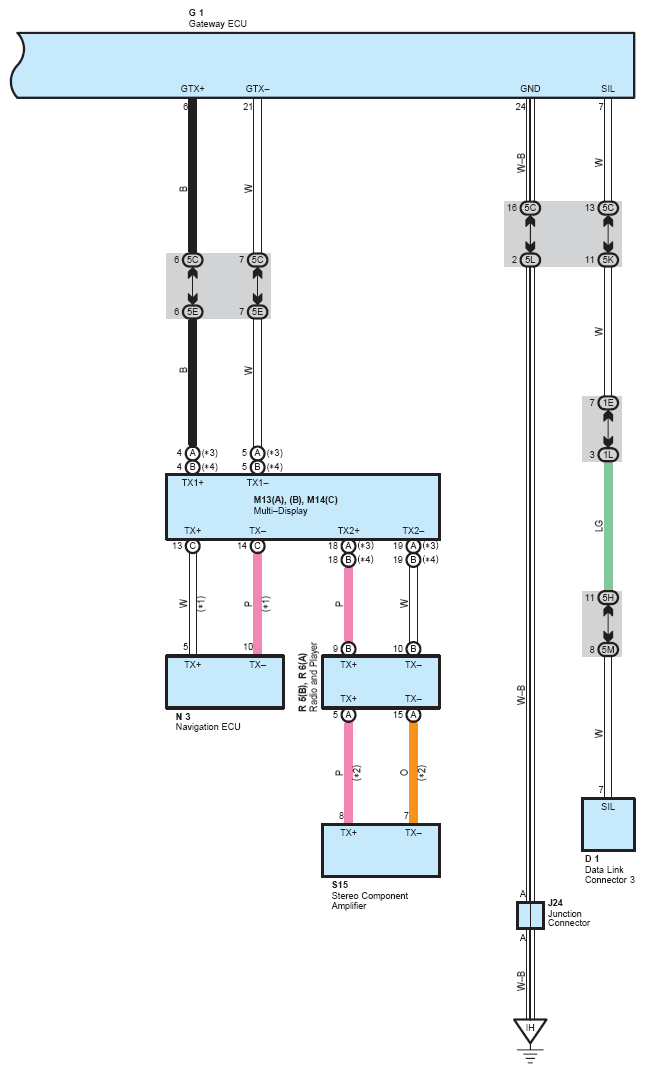

Fig 2: Multiplex communication system - avc-lan bus system wiring diagram (2 of 2)
G08865997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
