Power Source: Notes

Fig 1: Power source system wiring diagram (1 of 3)
G08865989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

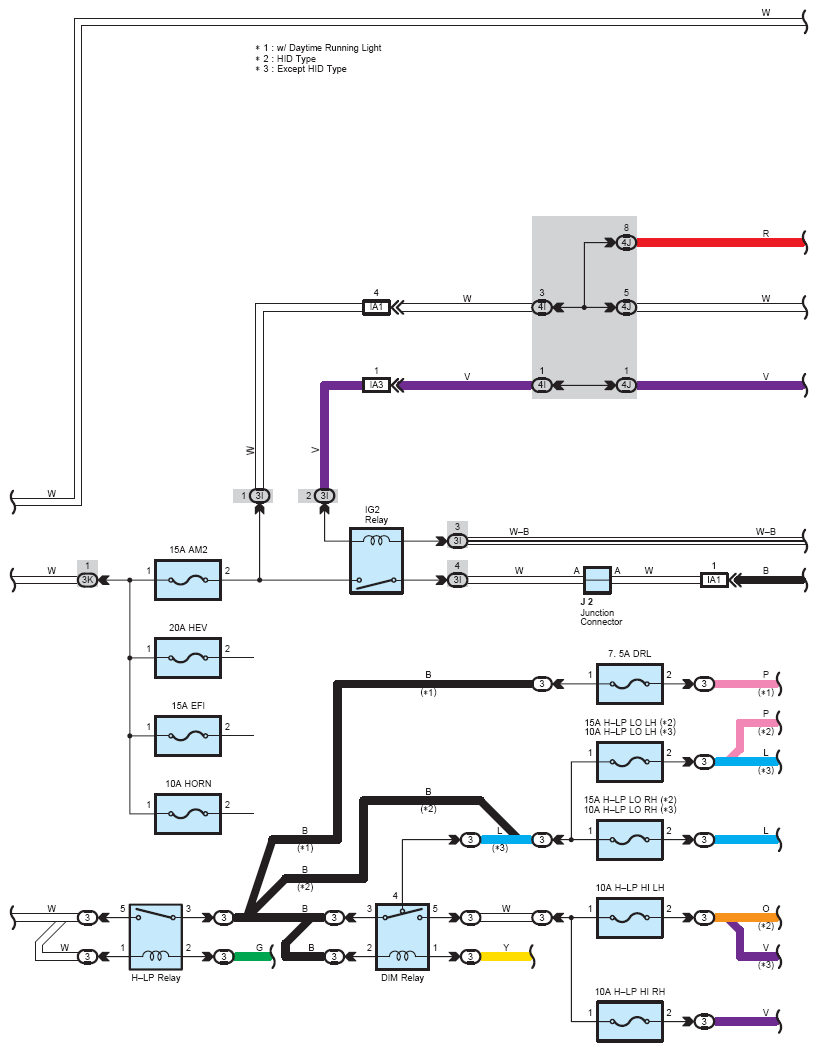

Fig 2: Power source system wiring diagram (2 of 3)
G08865990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

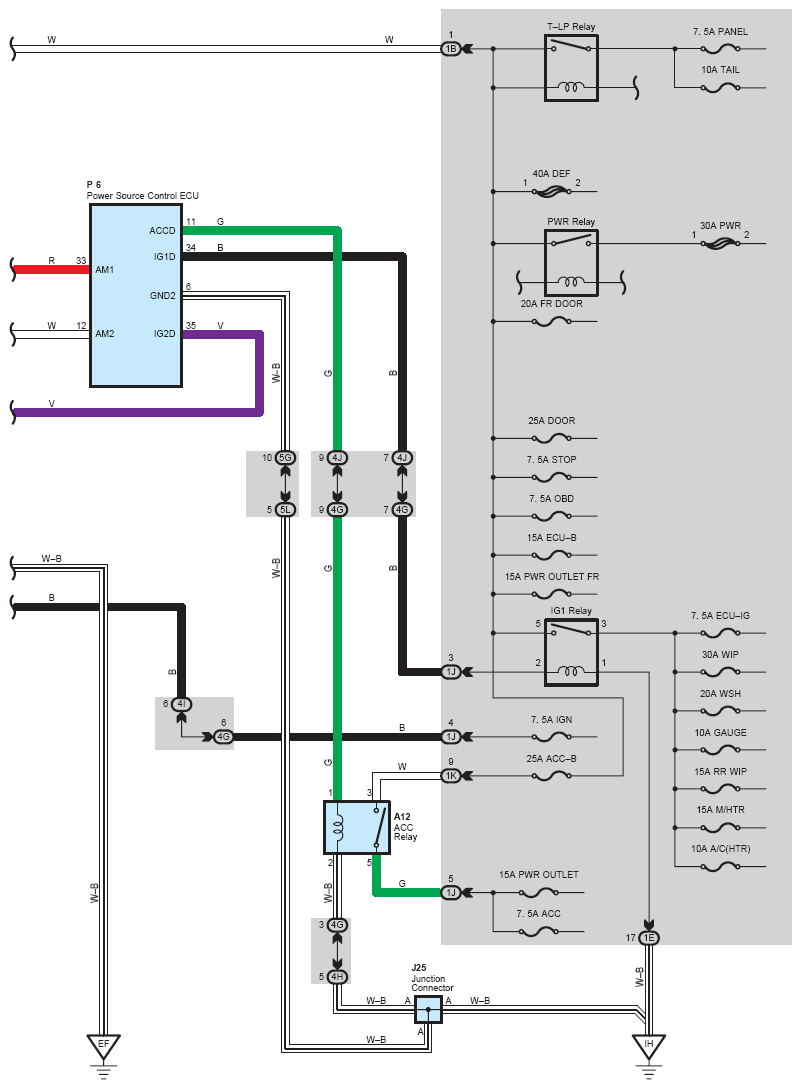

Fig 3: Power source system wiring diagram (3 of 3)
G08865991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
