TOYOTA Hybrid System: Notes

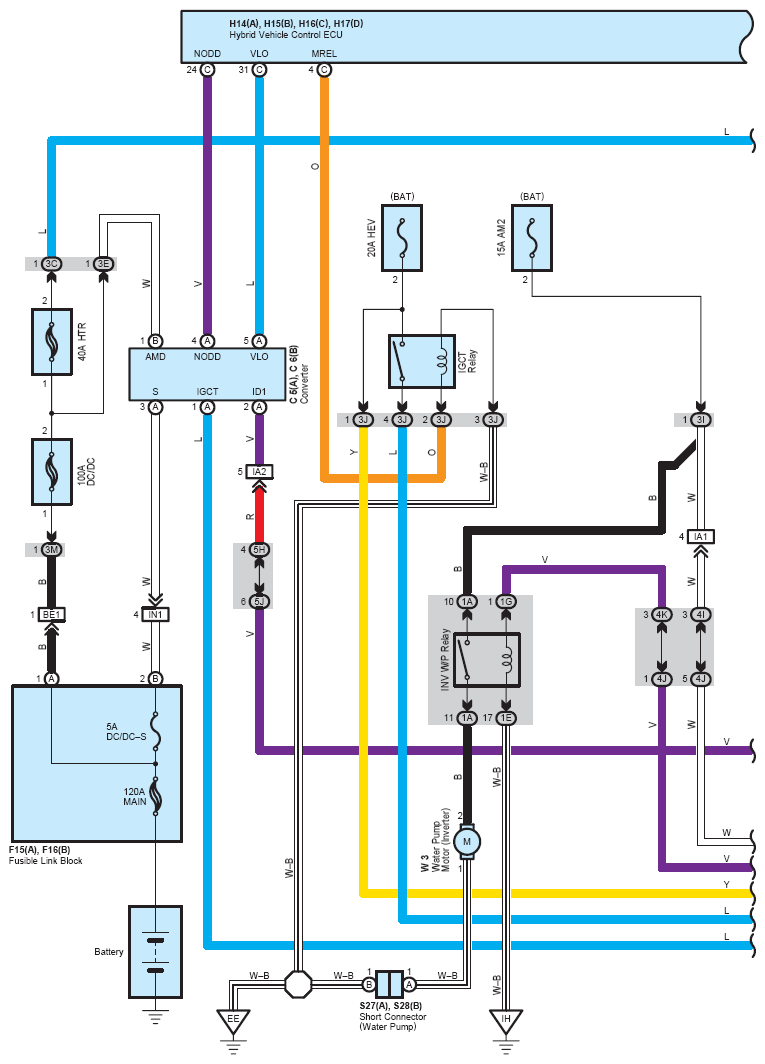

Fig 1: Toyota hybrid system wiring diagram (1 of 27)

G08866007

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

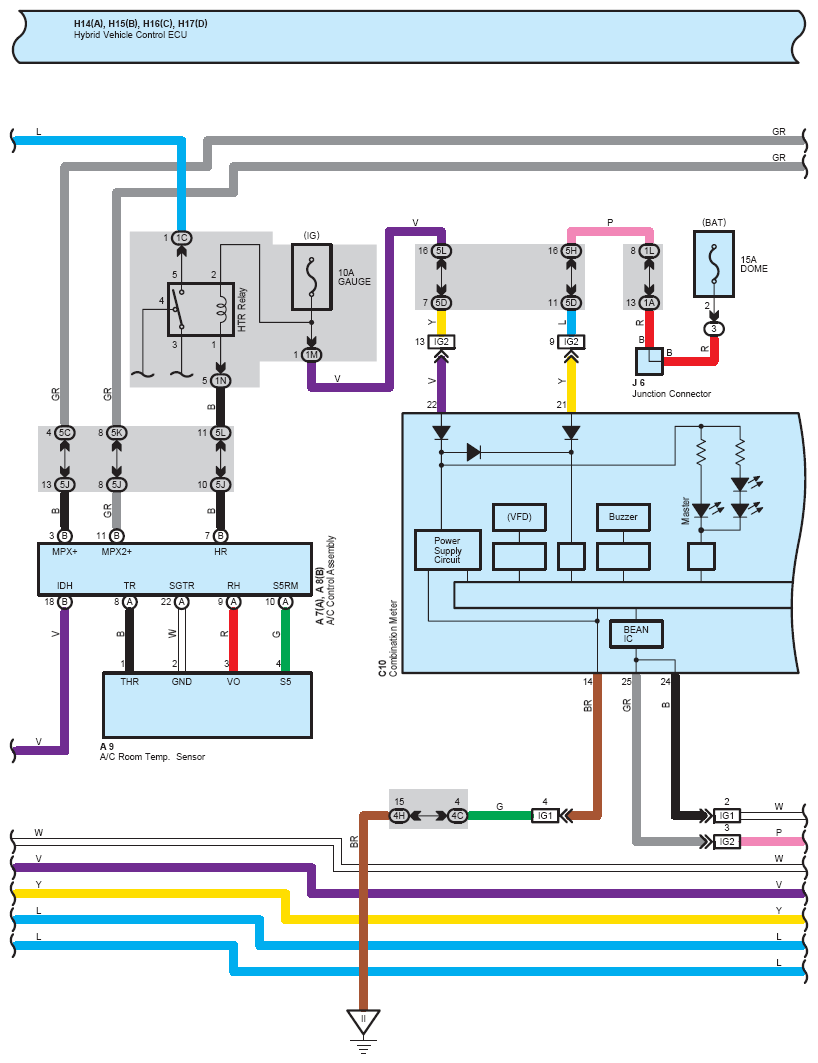

Fig 2: Toyota hybrid system wiring diagram (2 of 27)

G08866008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

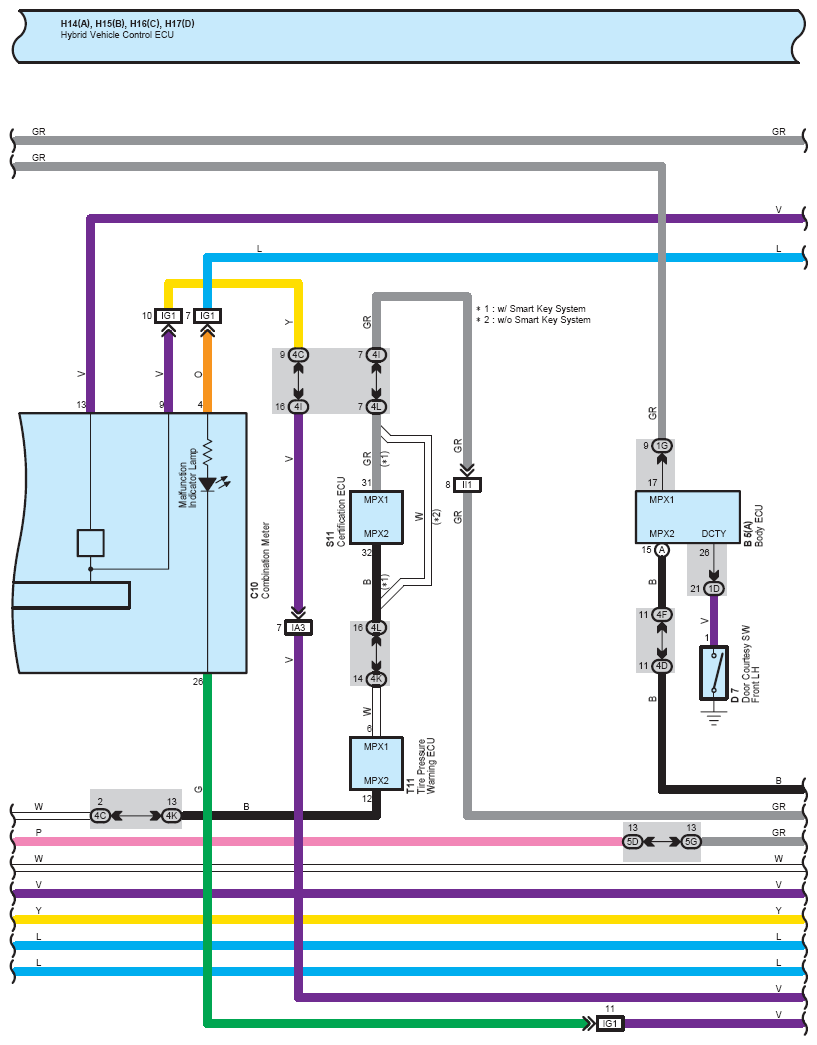

Fig 3: Toyota hybrid system wiring diagram (3 of 27)

G08866009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

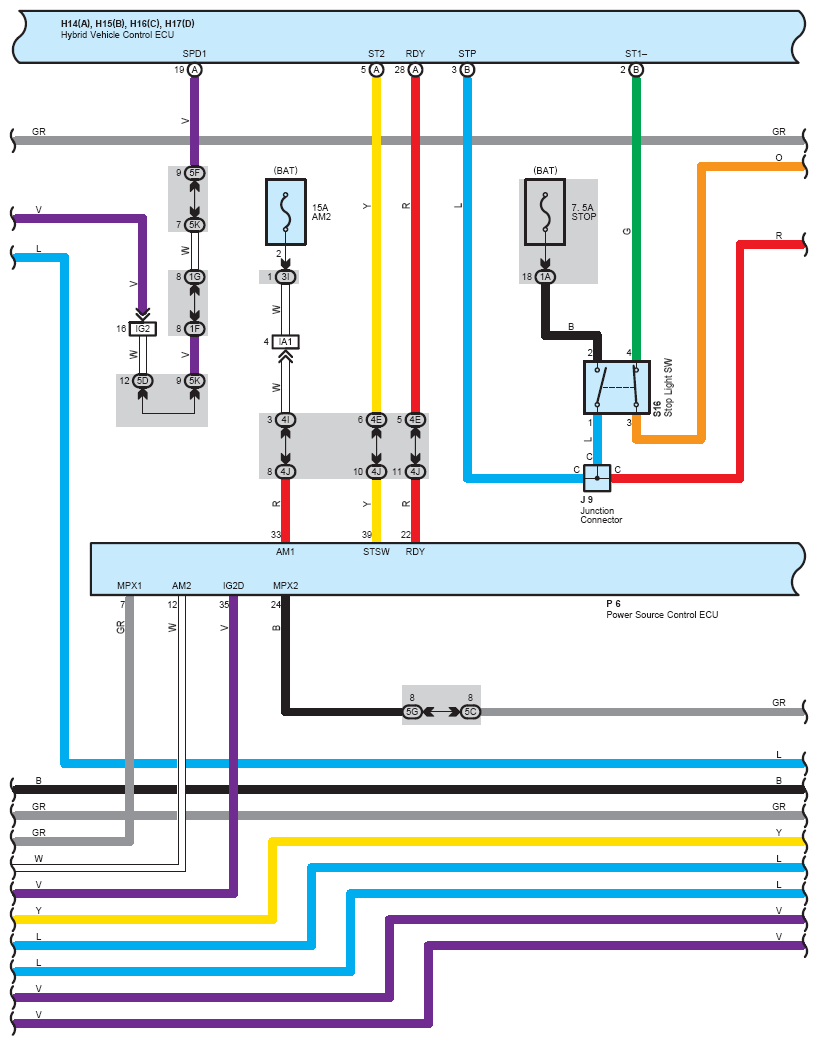

Fig 4: Toyota hybrid system wiring diagram (4 of 27)

G08866010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

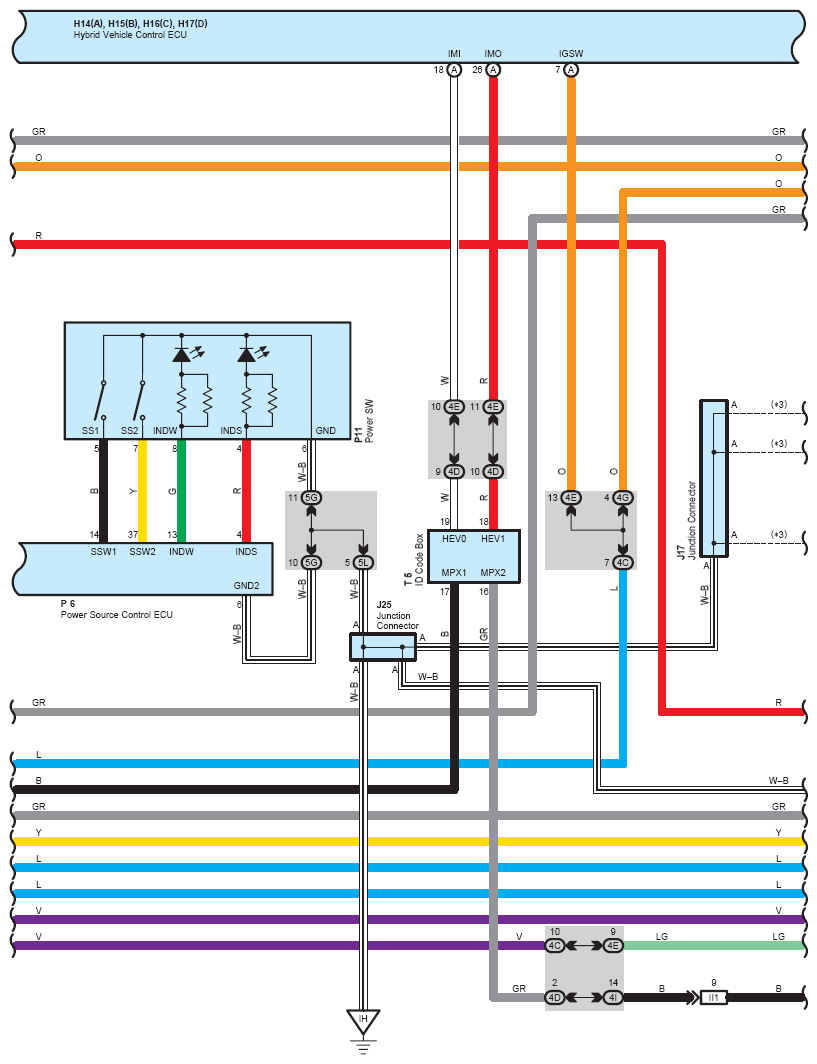

Fig 5: Toyota hybrid system wiring diagram (5 of 27)

G08866011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

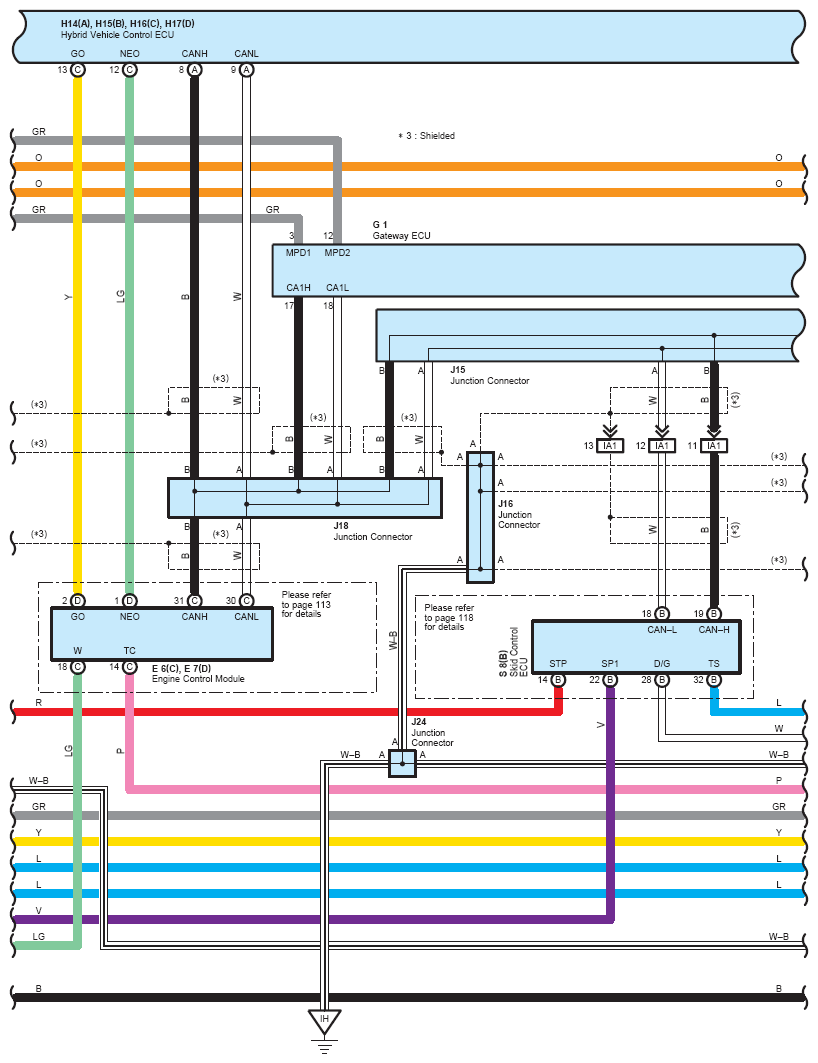

Fig 6: Toyota hybrid system wiring diagram (6 of 27)

G08866012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

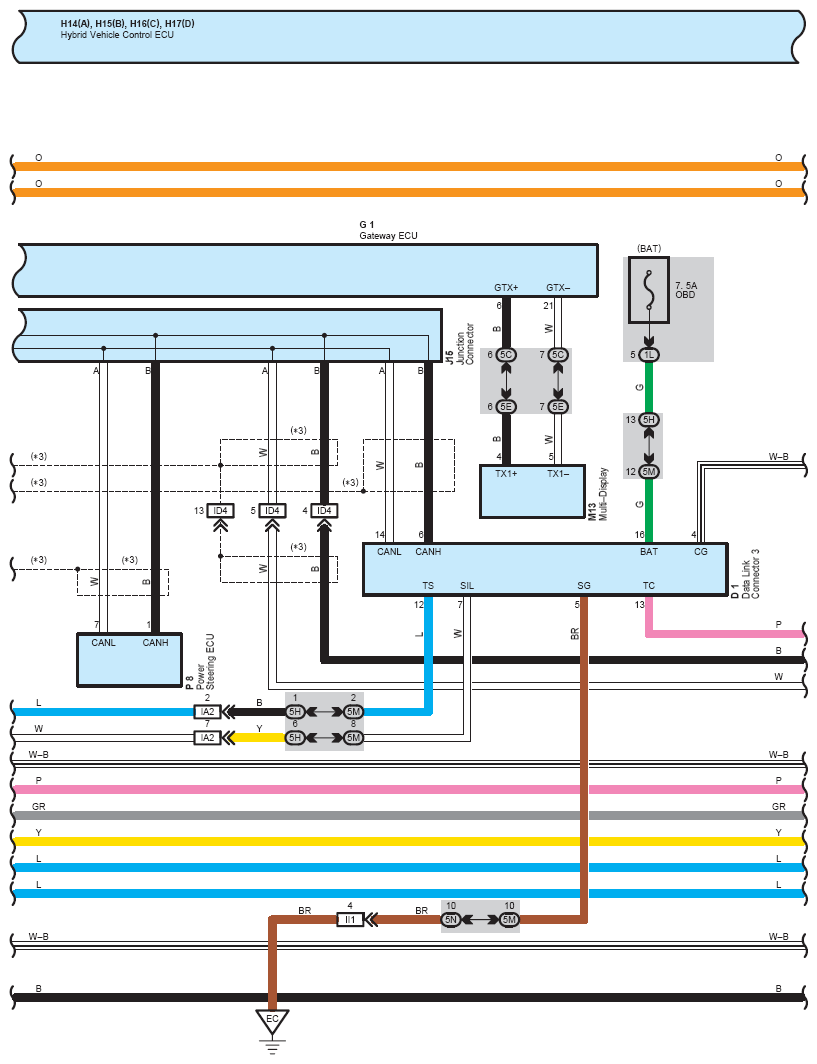

Fig 7: Toyota hybrid system wiring diagram (7 of 27)

G08866013

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

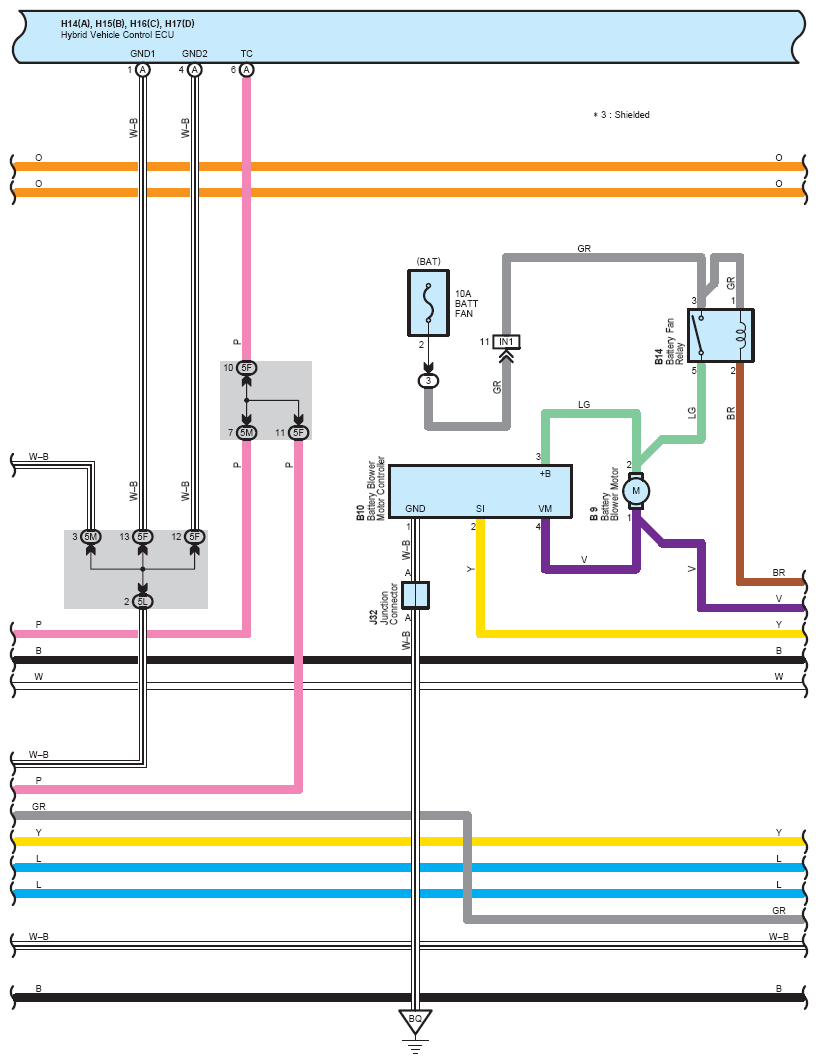

Fig 8: Toyota hybrid system wiring diagram (8 of 27)

G08866014

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

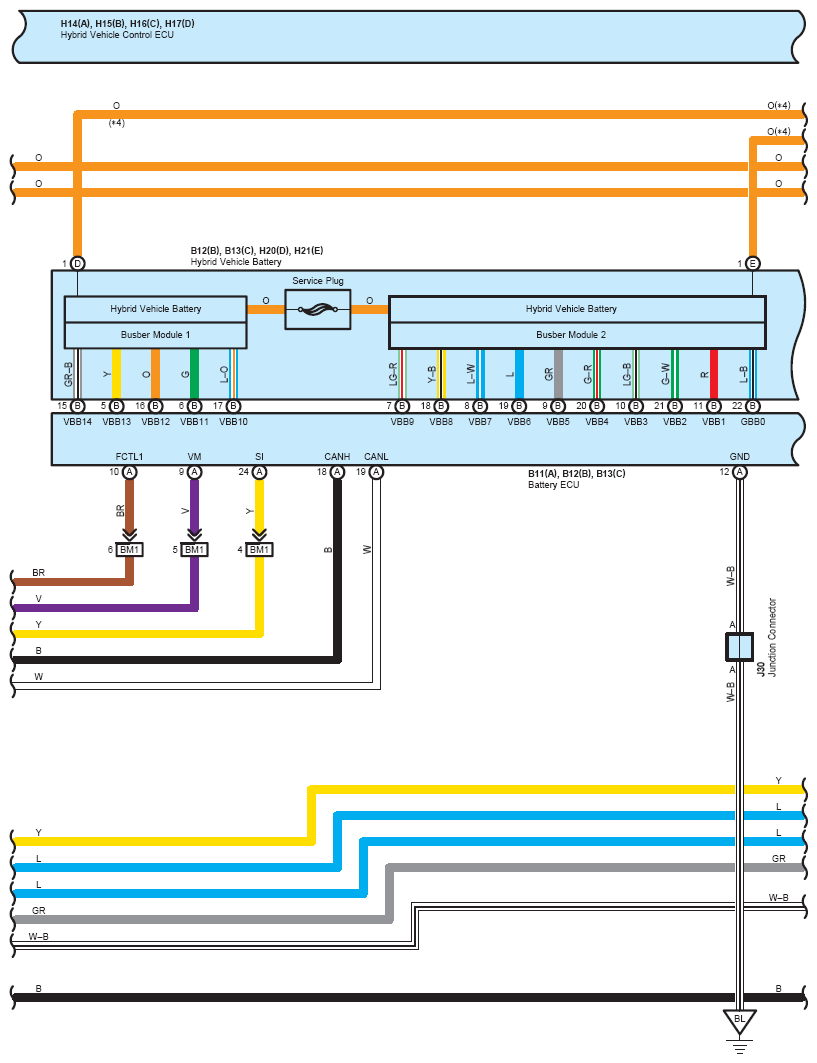

Fig 9: Toyota hybrid system wiring diagram (9 of 27)

G08866015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

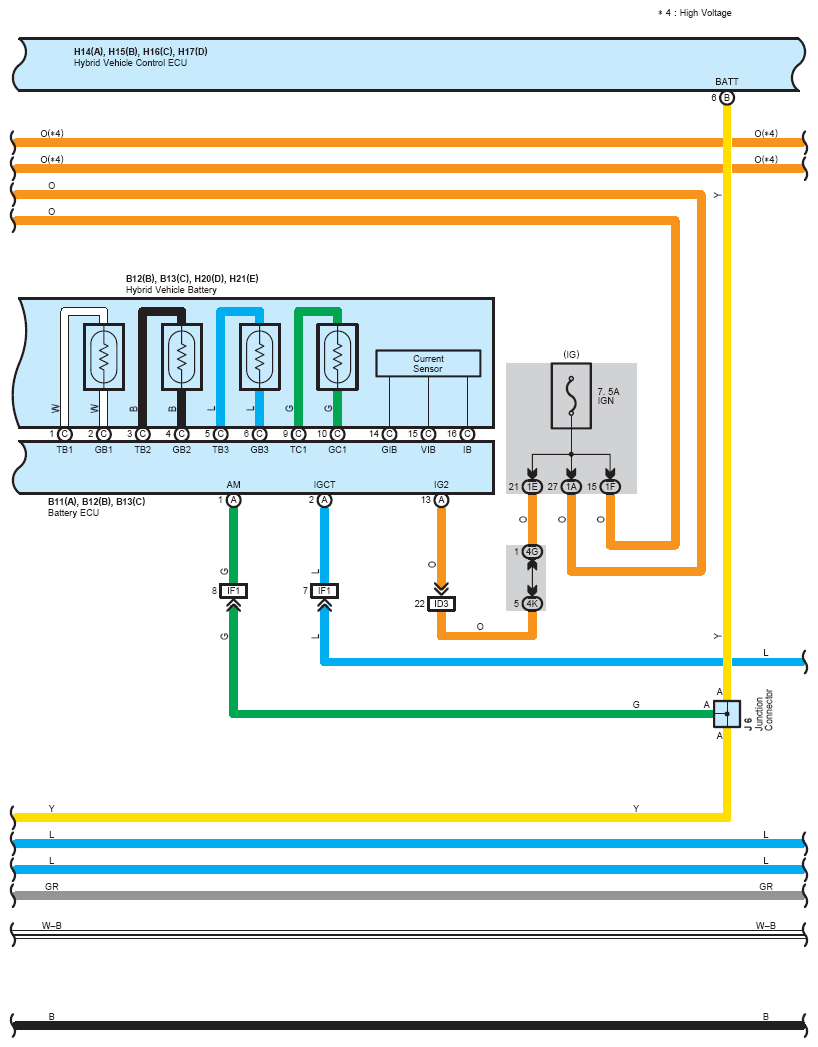

Fig 10: Toyota hybrid system wiring diagram (10 of 27)

G08866016

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Toyota hybrid system wiring diagram (11 of 27)

G08866017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

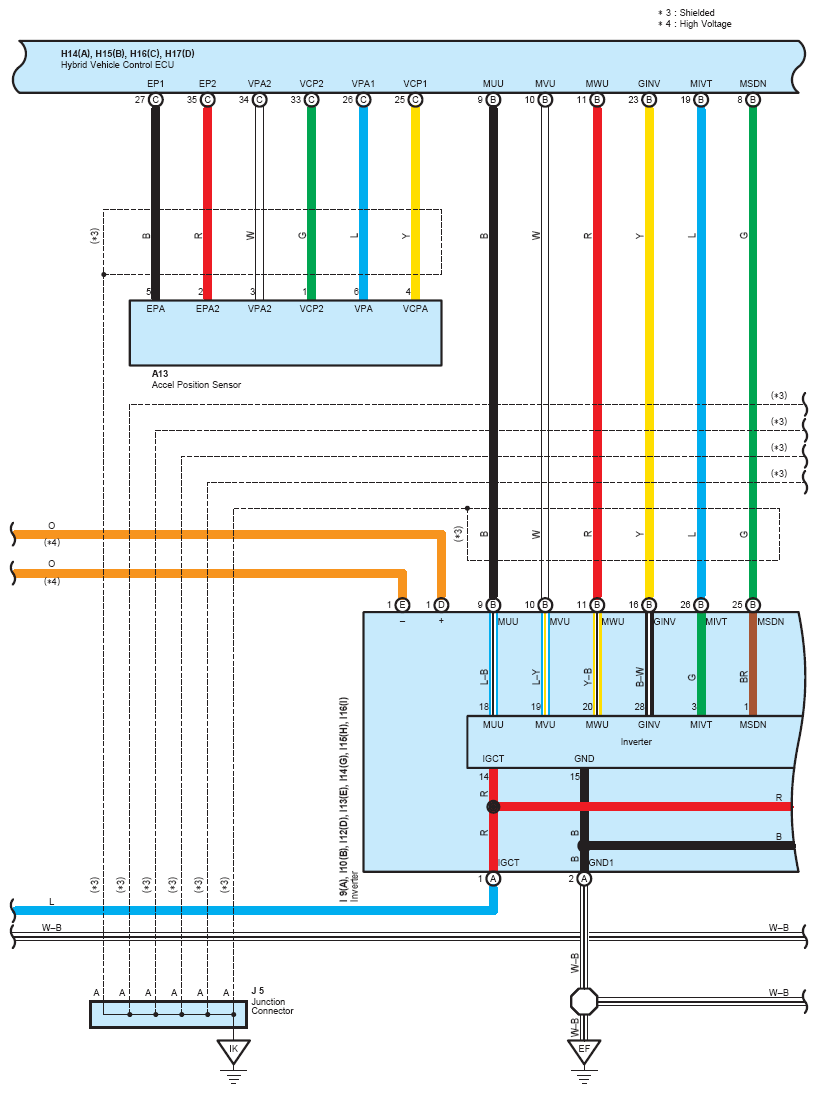

Fig 12: Toyota hybrid system wiring diagram (12 of 27)

G08866018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

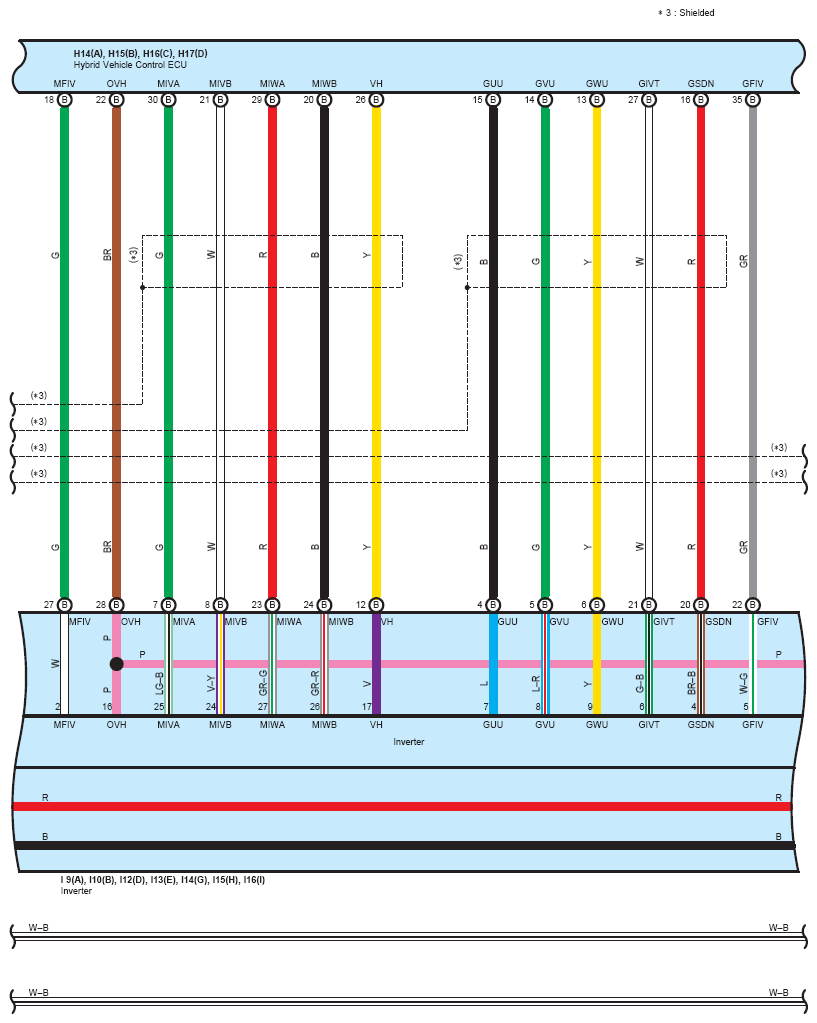

Fig 13: Toyota hybrid system wiring diagram (13 of 27)

G08866019

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

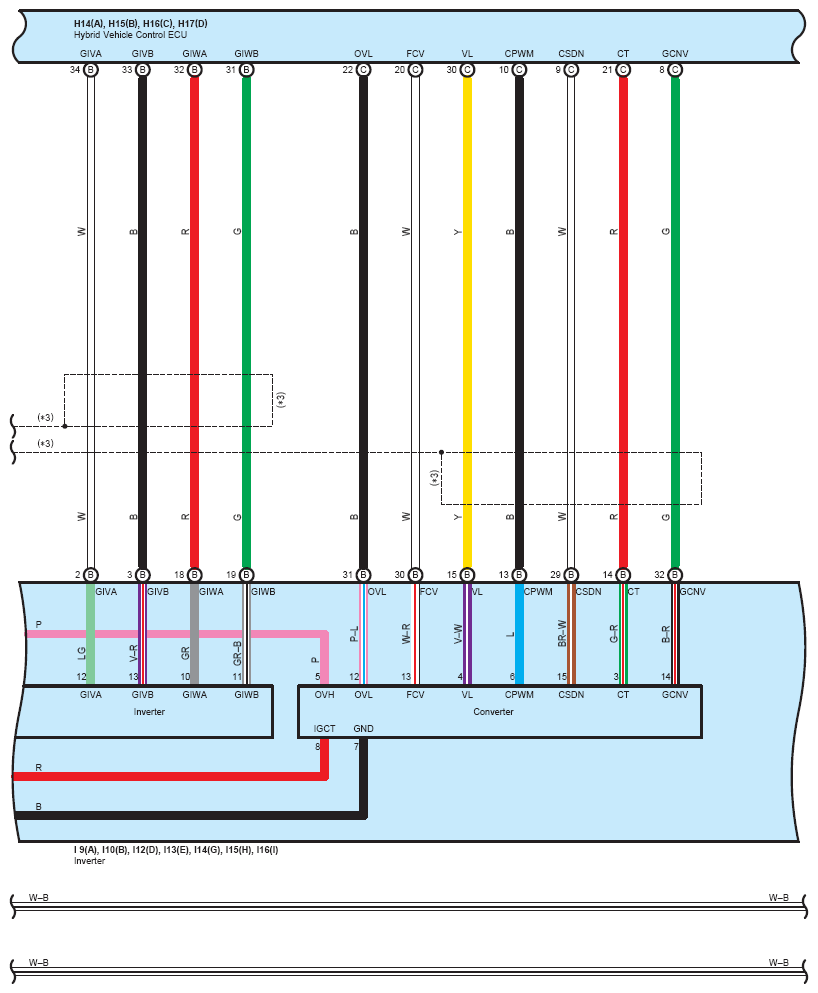

Fig 14: Toyota hybrid system wiring diagram (14 of 27)

G08866020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

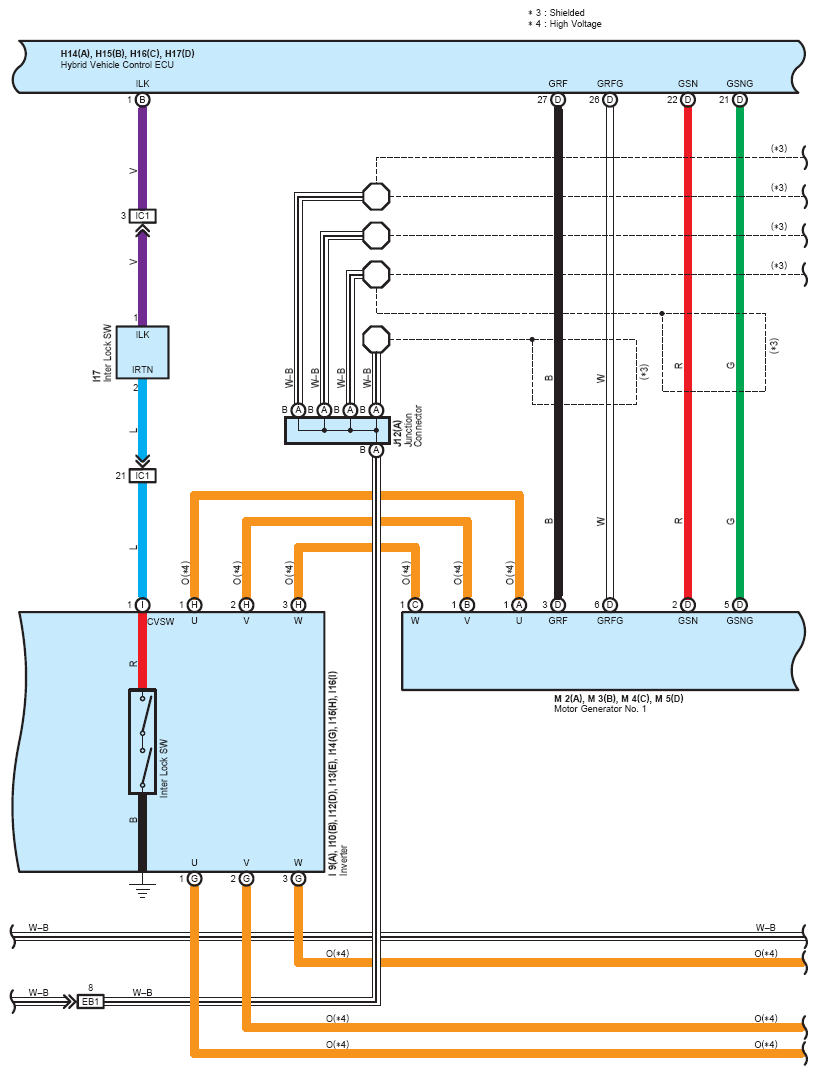

Fig 15: Toyota hybrid system wiring diagram (15 of 27)

G08866021

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

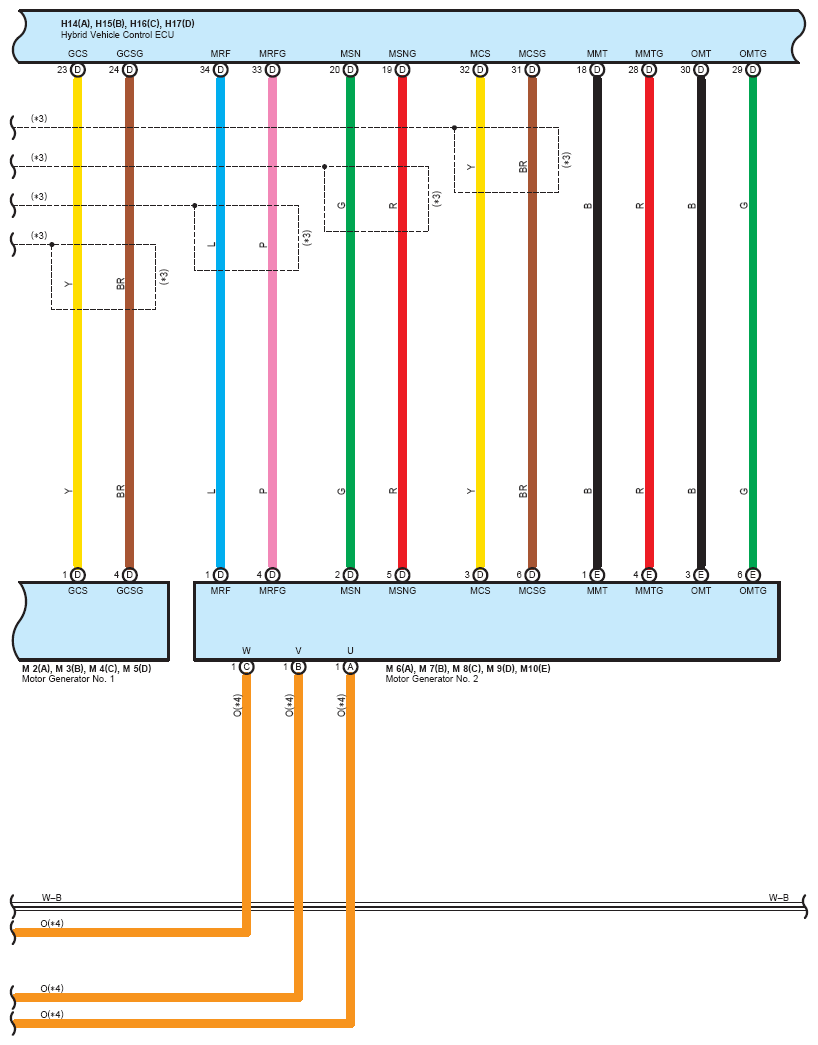

Fig 16: Toyota hybrid system wiring diagram (16 of 27)

G08866022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

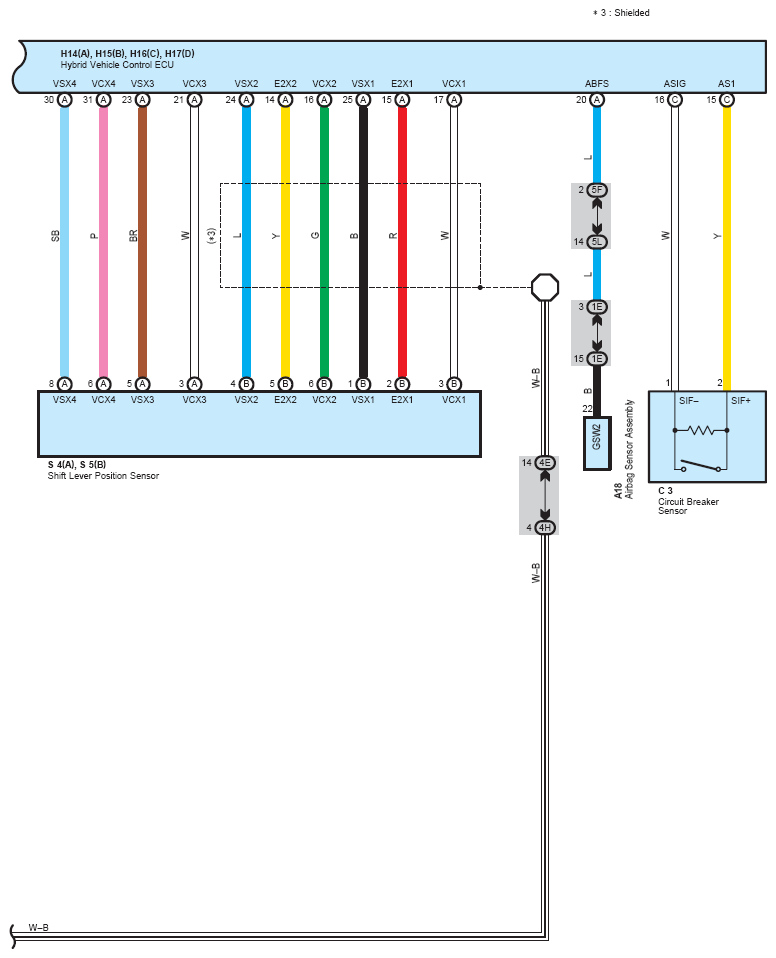

Fig 17: Toyota hybrid system wiring diagram (17 of 27)

G08866023

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

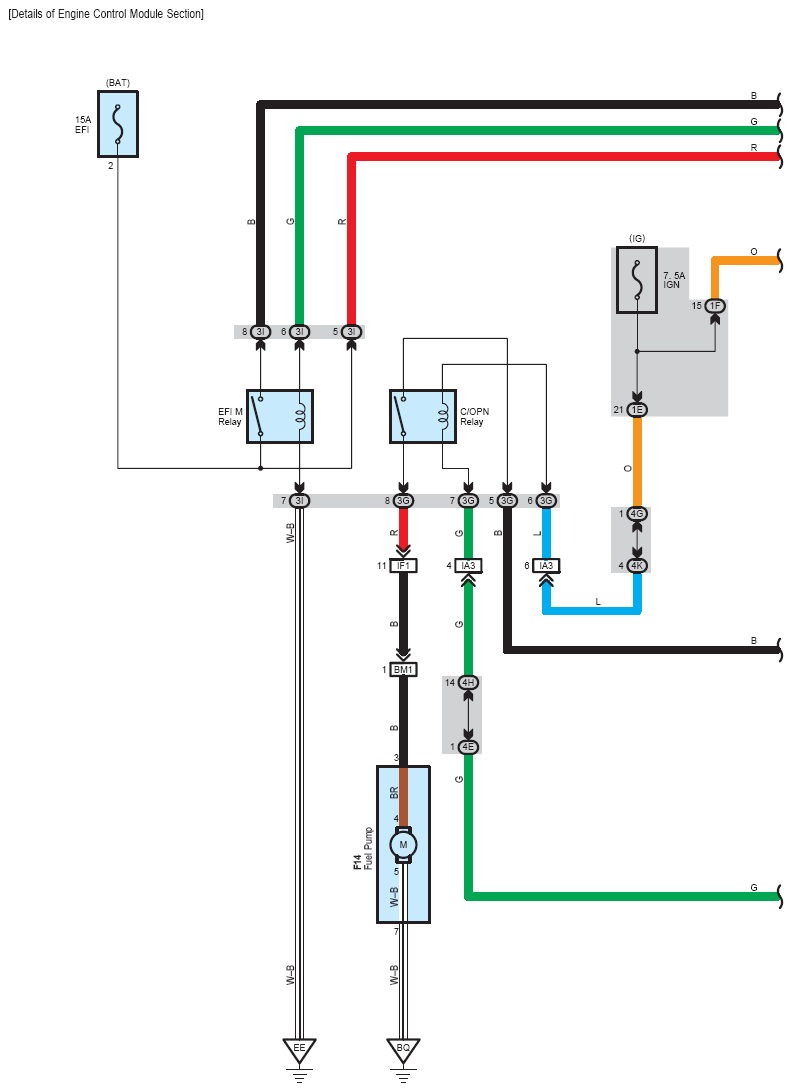

Fig 18: Toyota hybrid system wiring diagram (18 of 27)

G08866024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

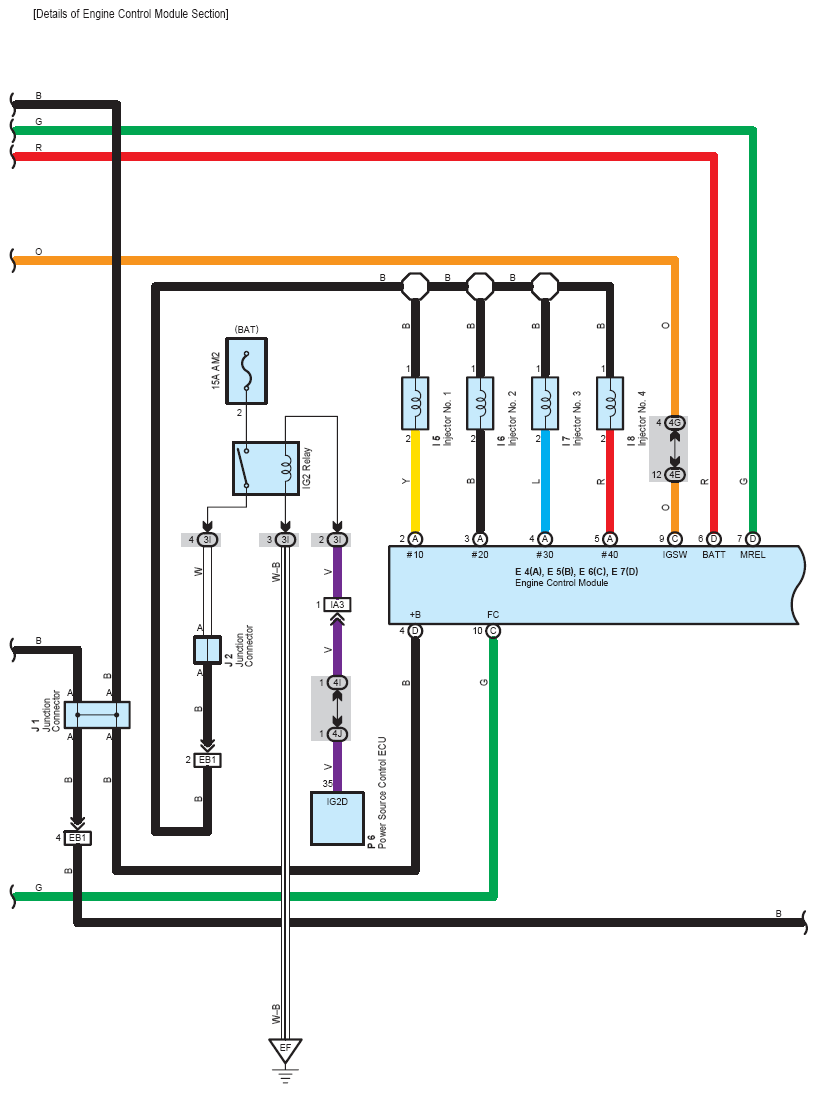

Fig 19: Toyota hybrid system wiring diagram (19 of 27)

G08866025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

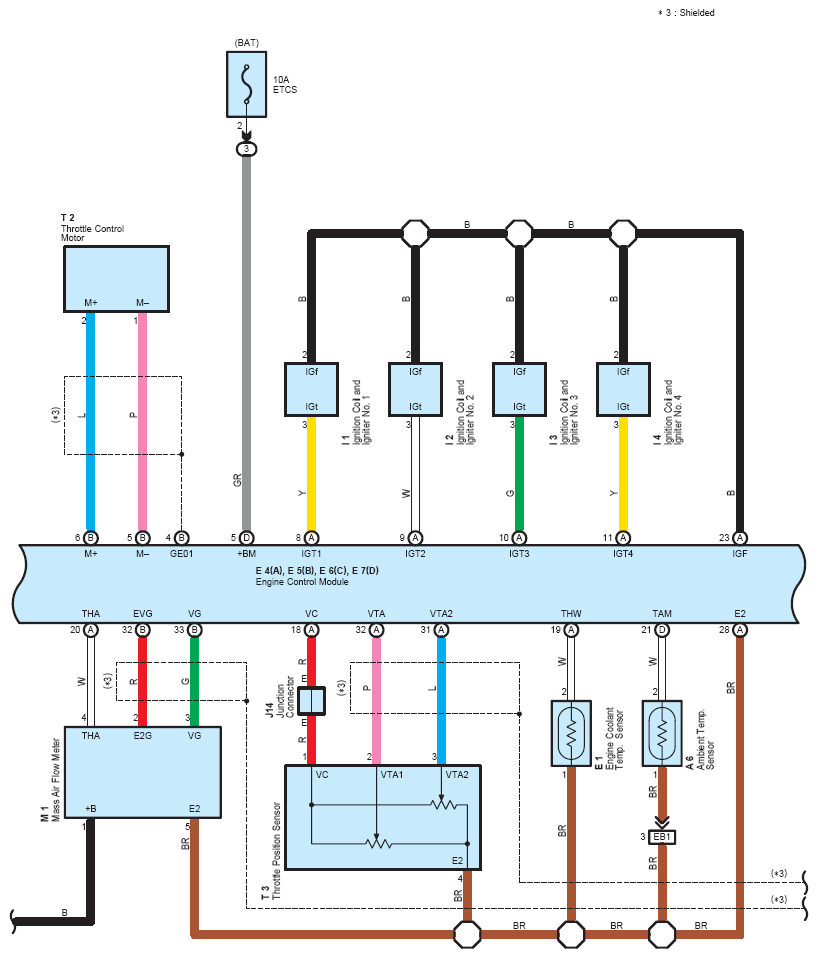

Fig 20: Toyota hybrid system wiring diagram (20 of 27)

G08866026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

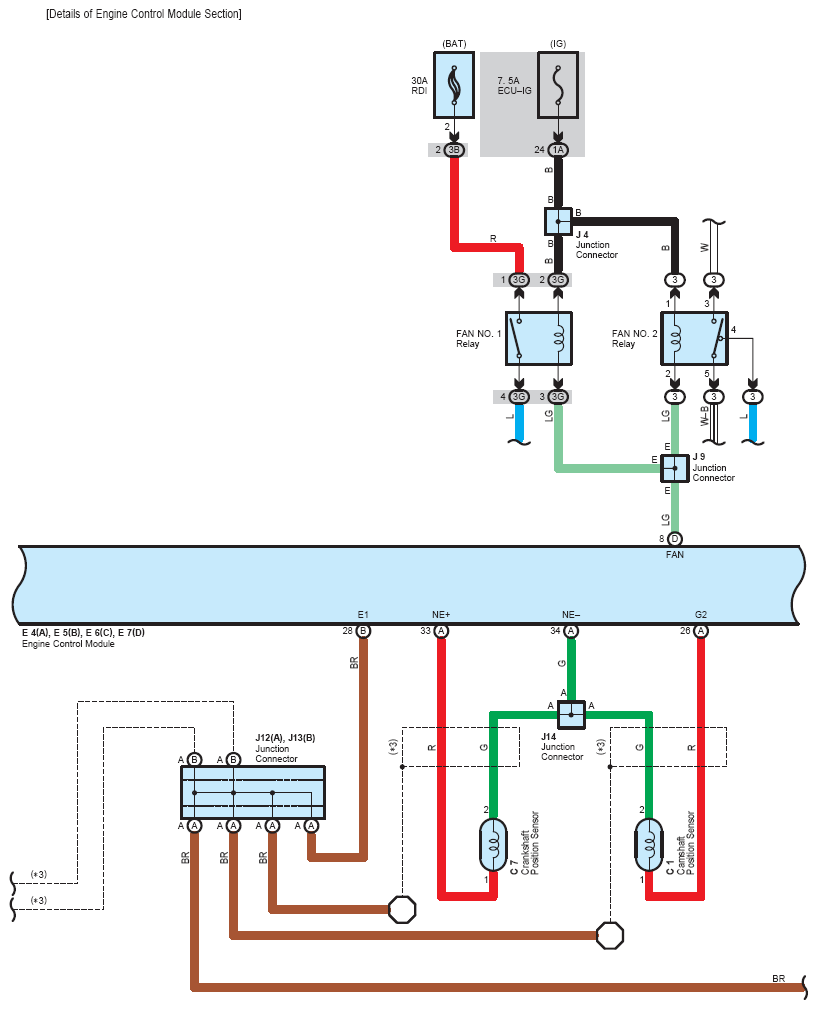

Fig 21: Toyota hybrid system wiring diagram (21 of 27)

G08866027

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

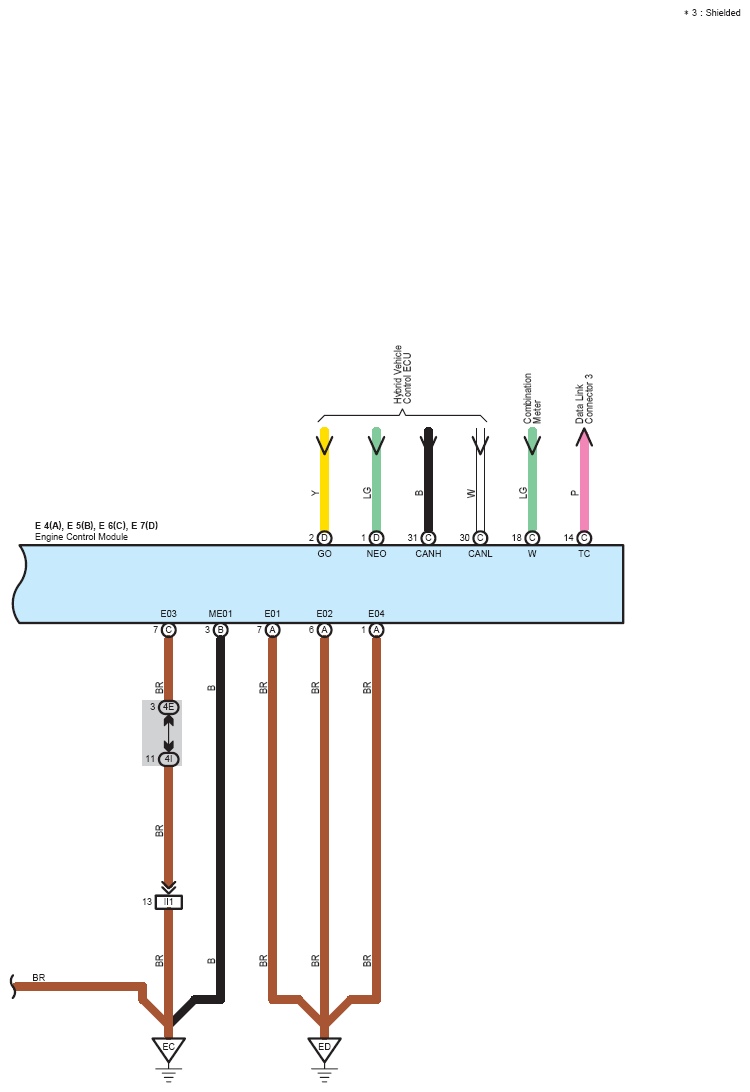

Fig 22: Toyota hybrid system wiring diagram (22 of 27)

G08866028

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

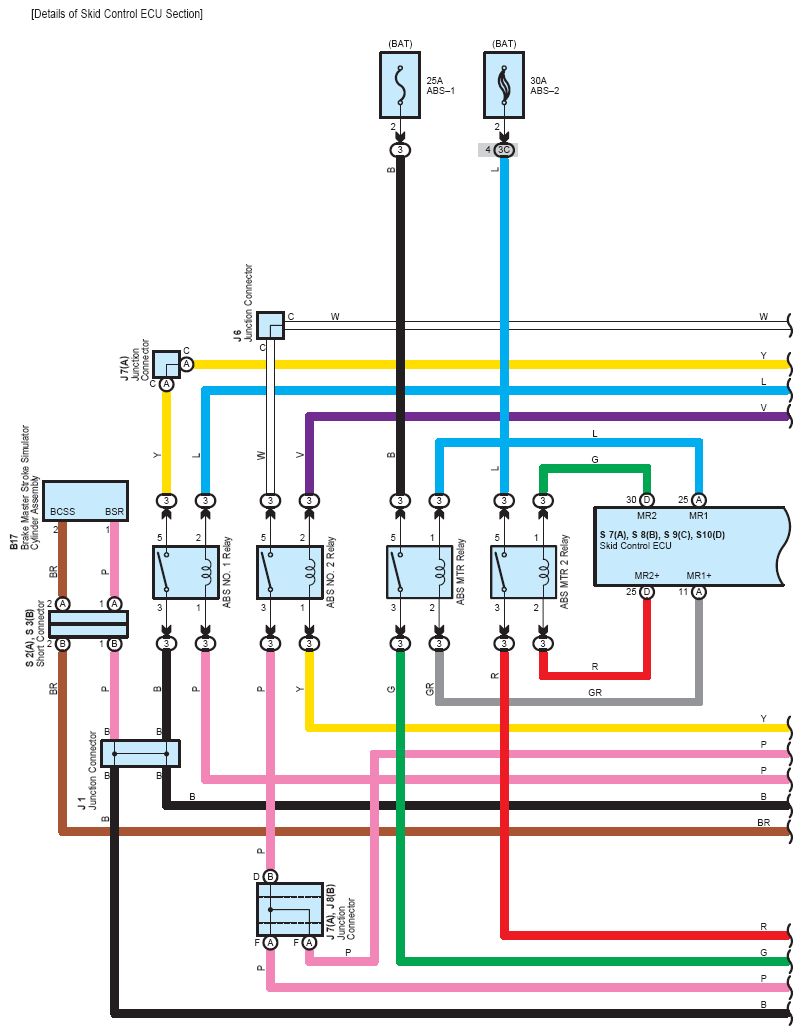

Fig 23: Toyota hybrid system wiring diagram (23 of 27)

G08866029

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

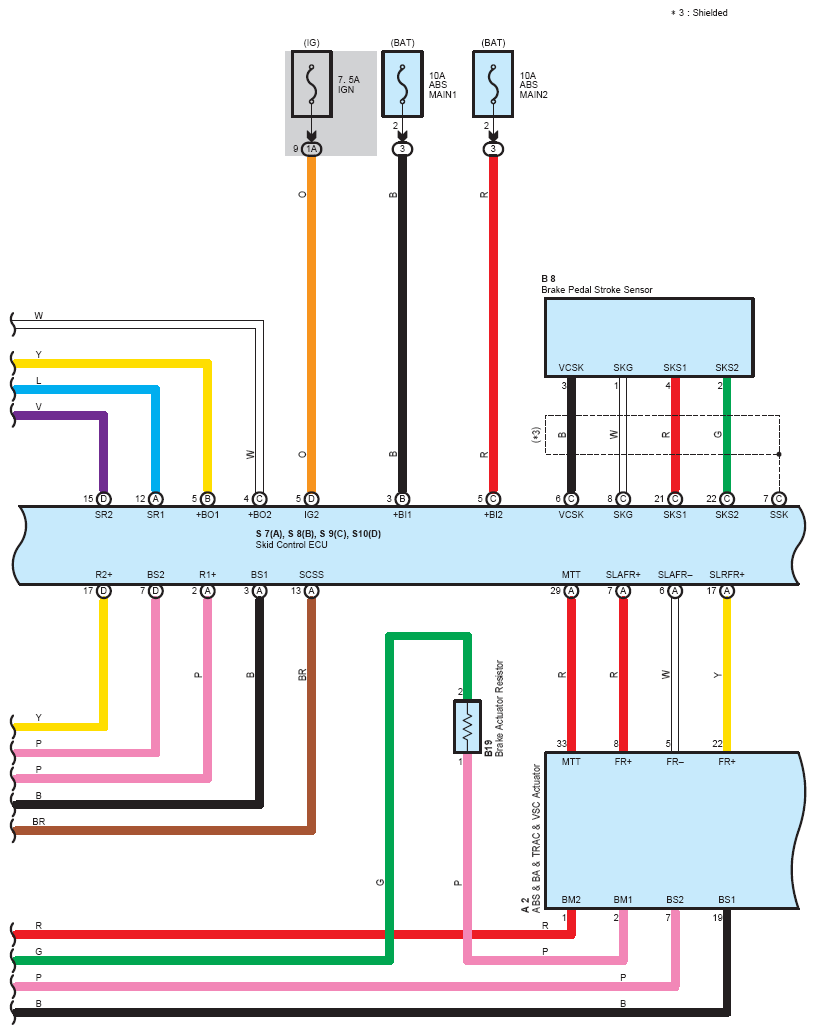

Fig 24: Toyota hybrid system wiring diagram (24 of 27)

G08866030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

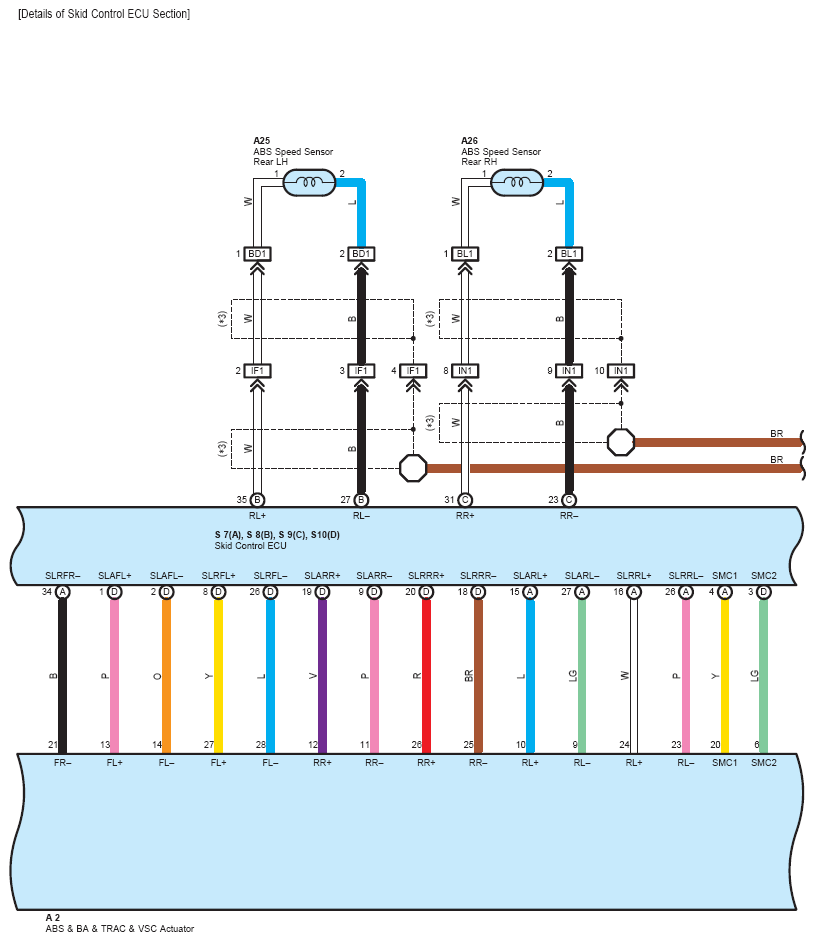

Fig 25: Toyota hybrid system wiring diagram (25 of 27)

G08866031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

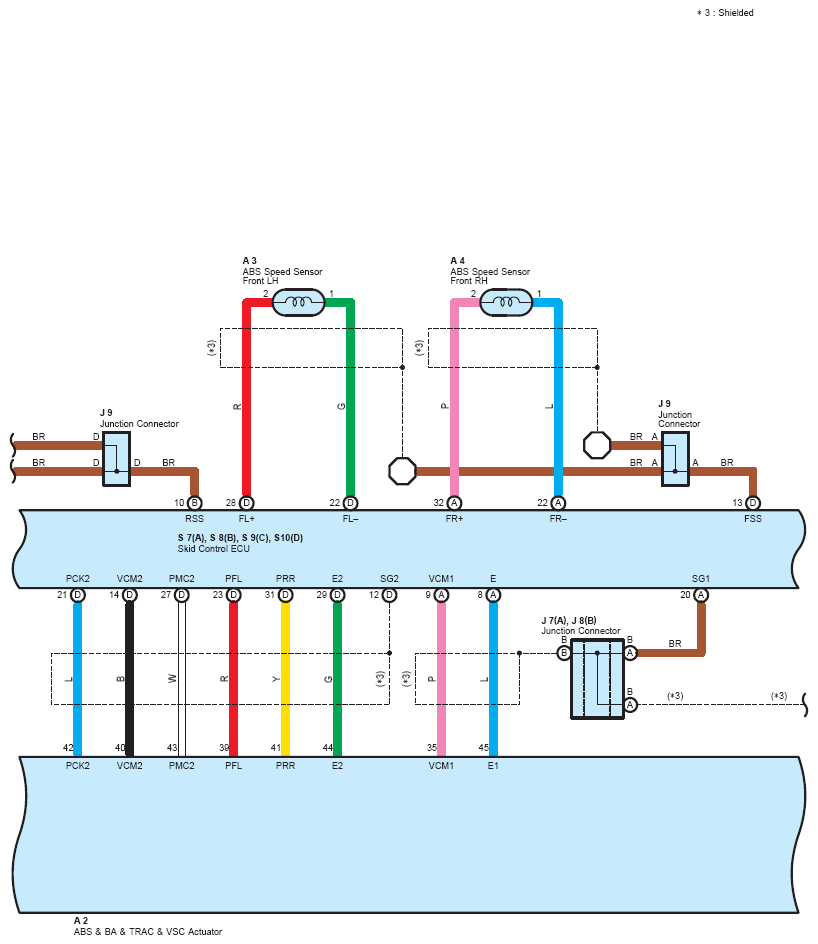

Fig 26: Toyota hybrid system wiring diagram (26 of 27)

G08866032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

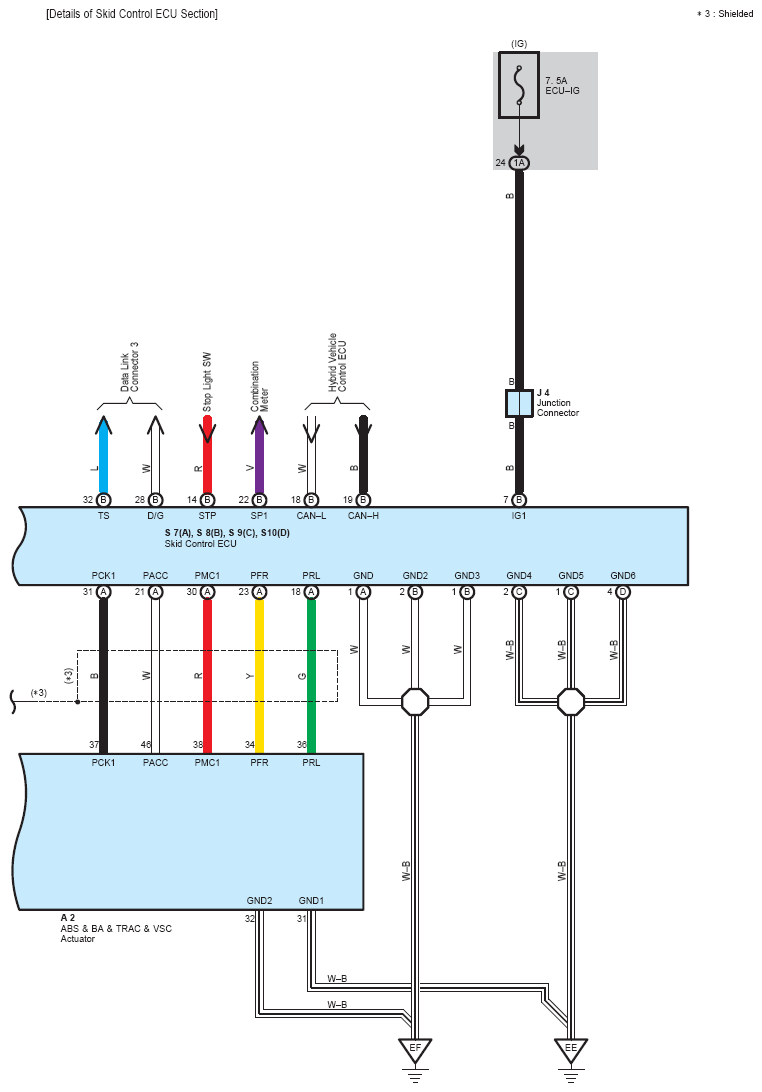

Fig 27: Toyota hybrid system wiring diagram (27 of 27)

G08866033

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
