Taillight And Illumination: Notes

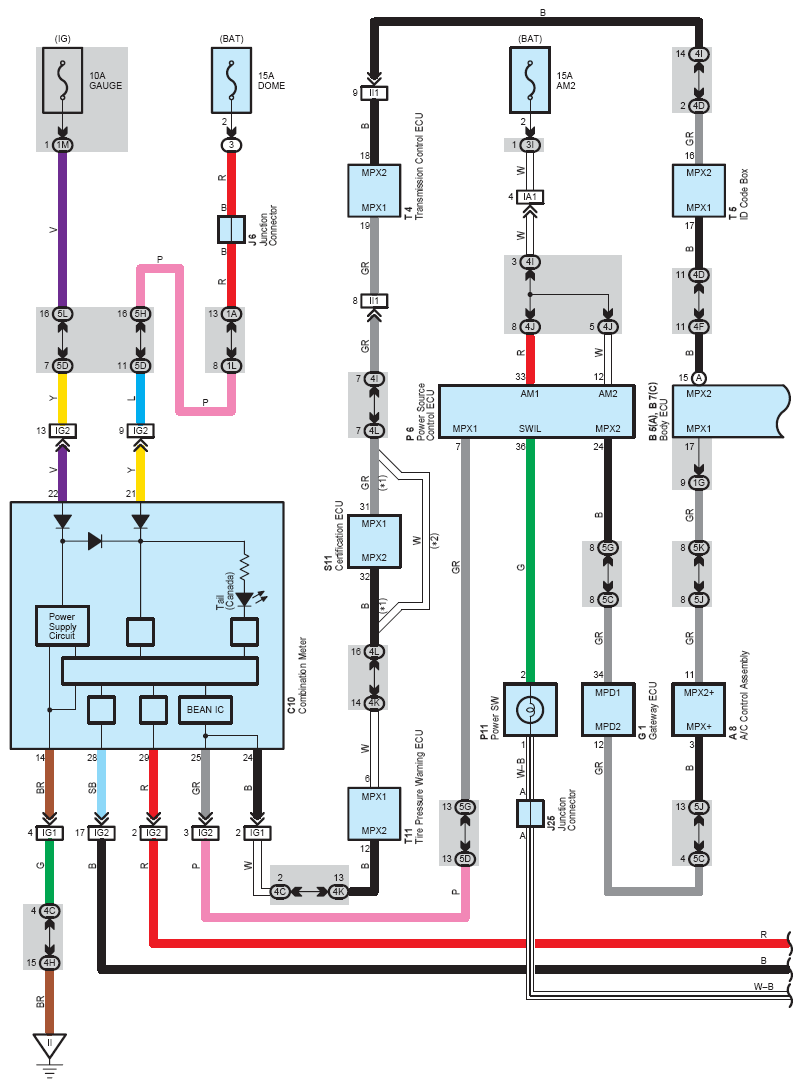

Fig 1: Taillight and illumination system wiring diagram (1 of 4)
G08866064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

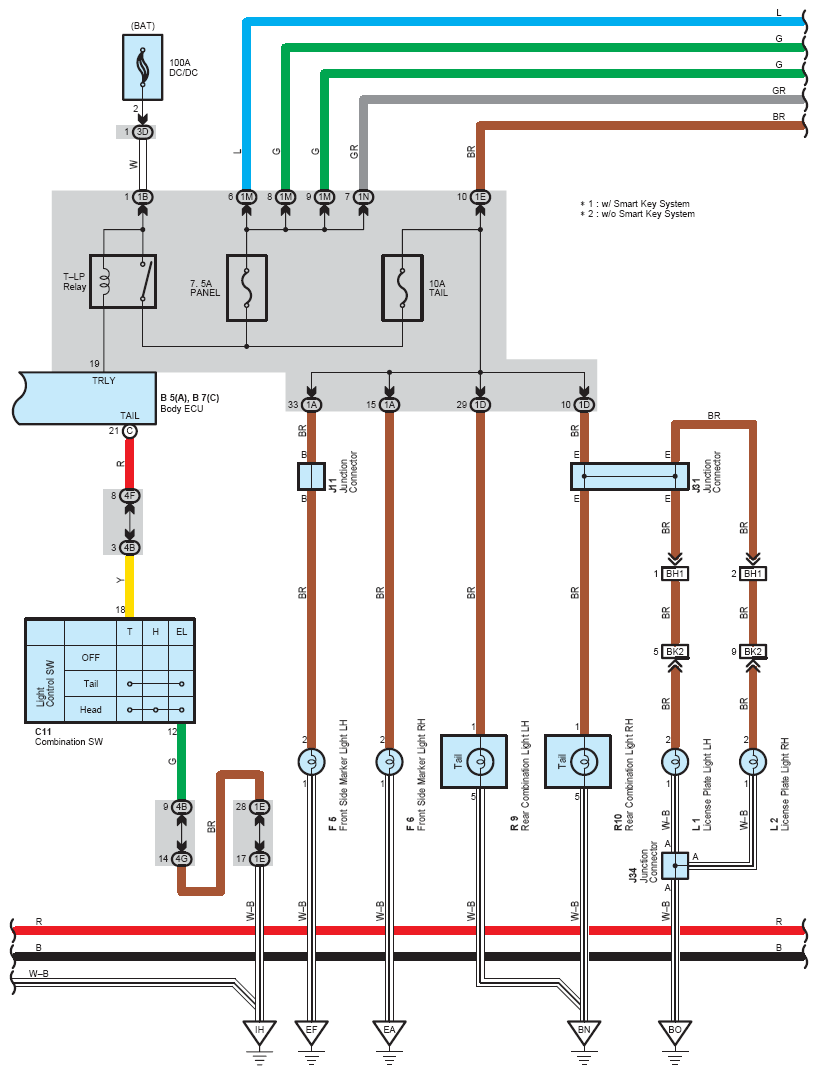

Fig 2: Taillight and illumination system wiring diagram (2 of 4)
G08866065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

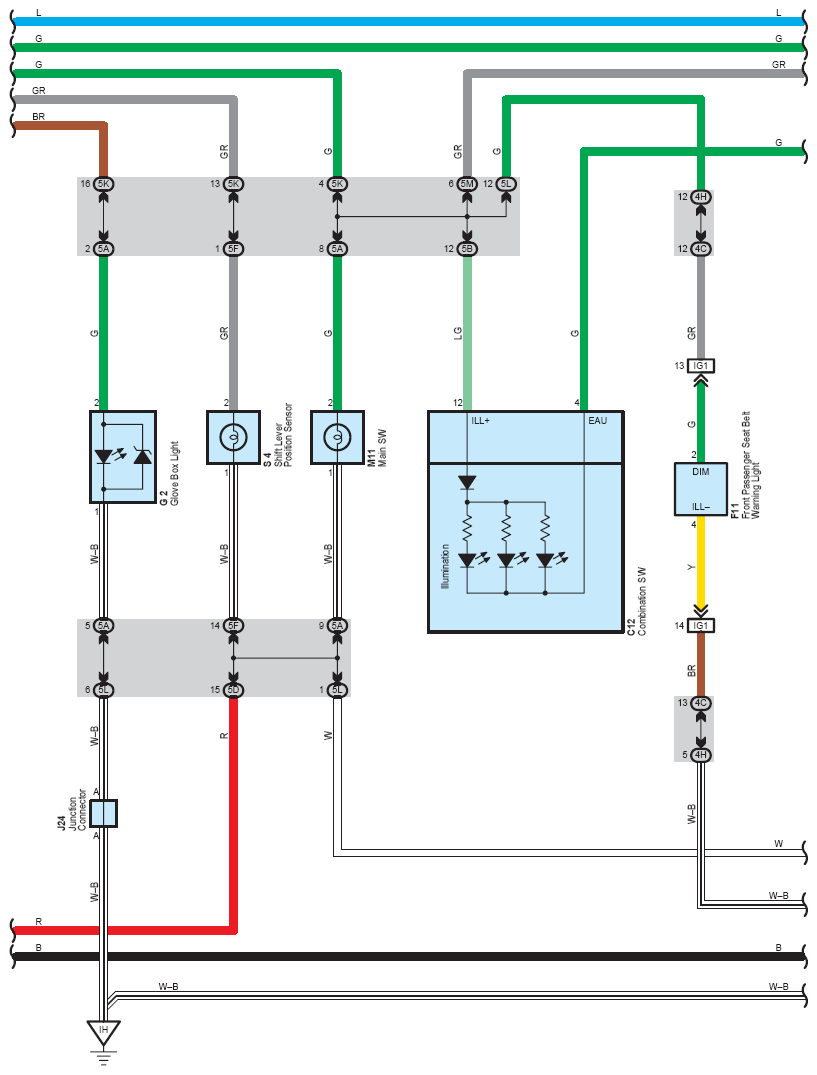

Fig 3: Taillight and illumination system wiring diagram (3 of 4)
G08866066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

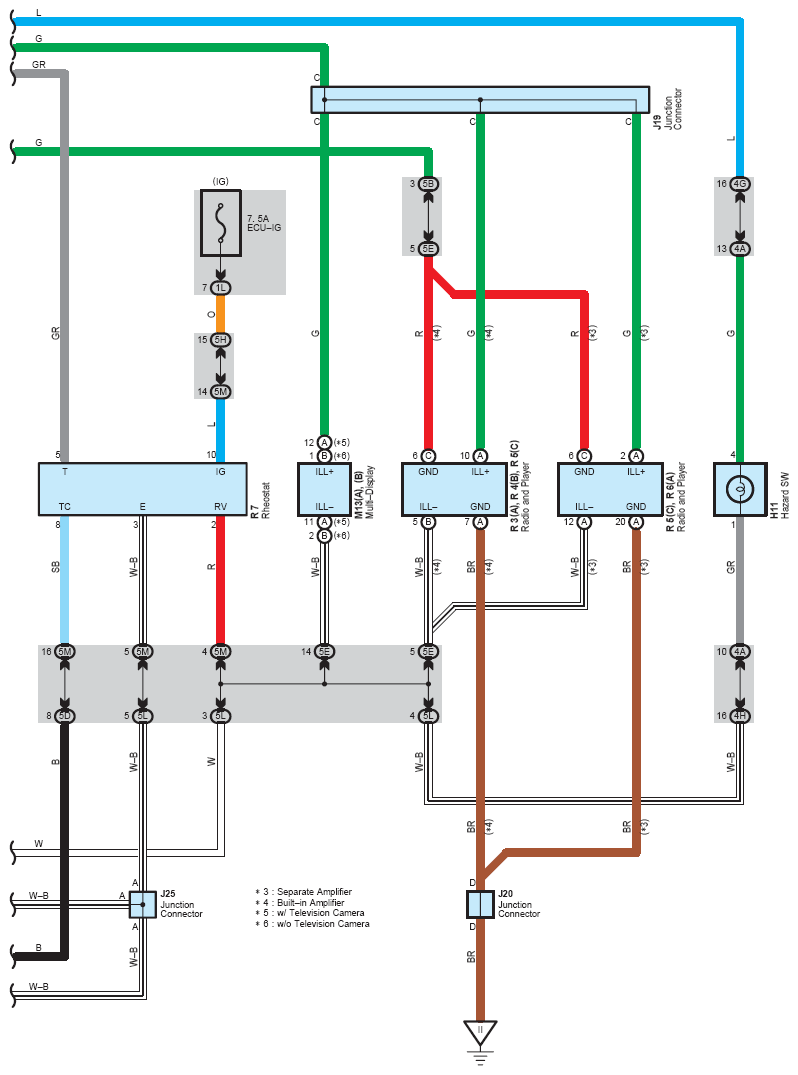

Fig 4: Taillight and illumination system wiring diagram (4 of 4)
G08866067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
