Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

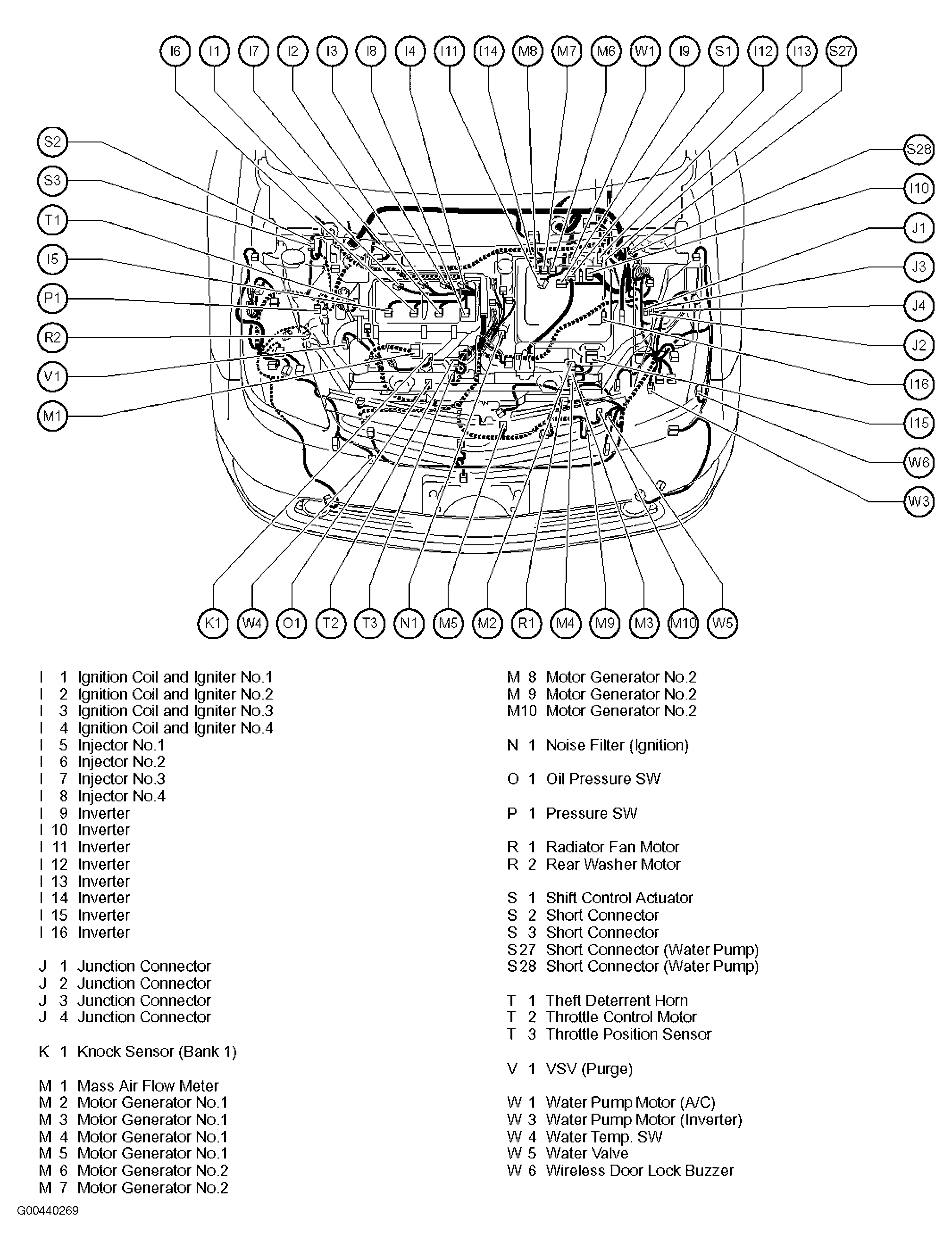

Fig 1: Engine Compartment

G00440269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

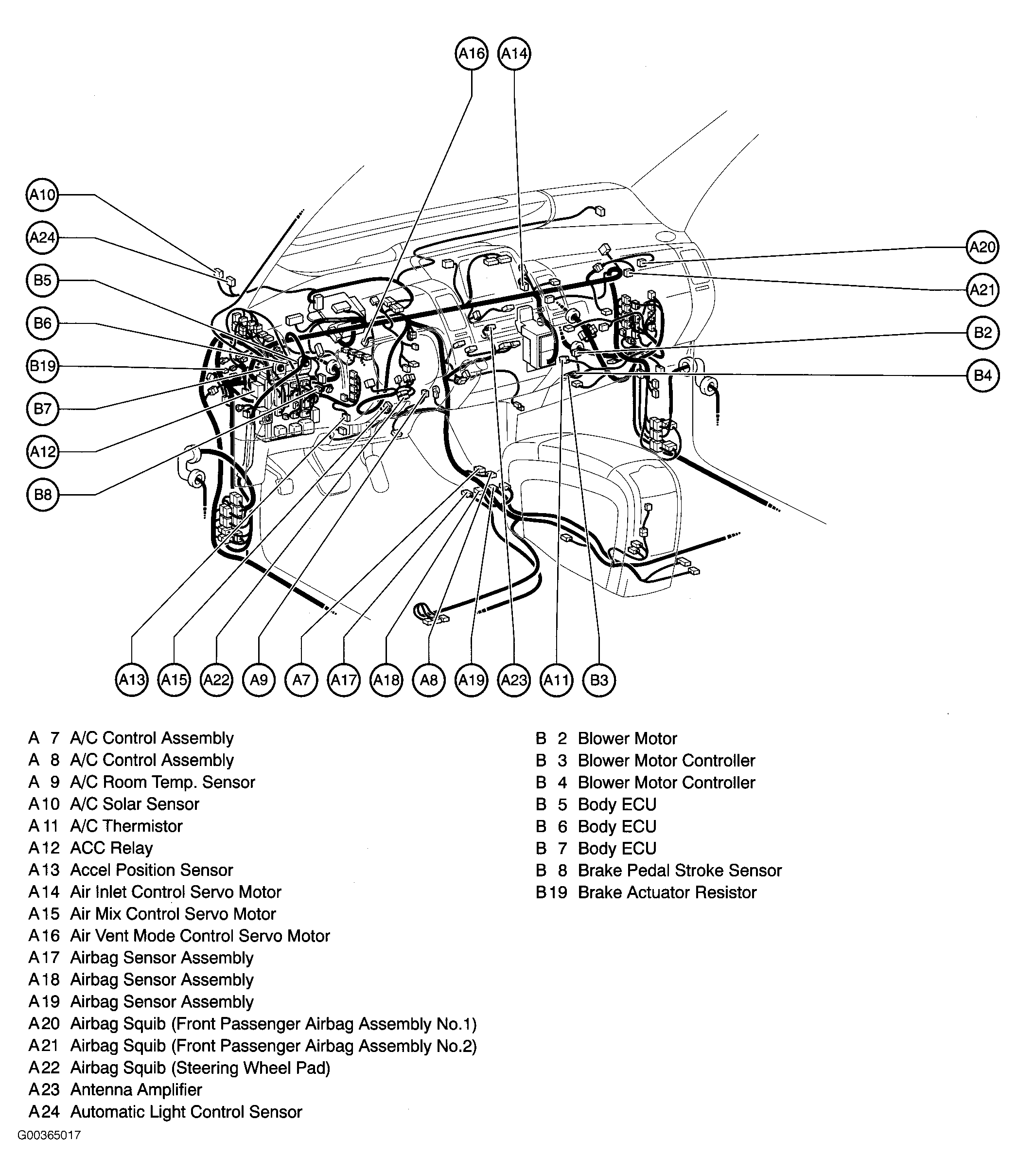

Fig 2: Dash

G00365017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Dash

G00365018

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

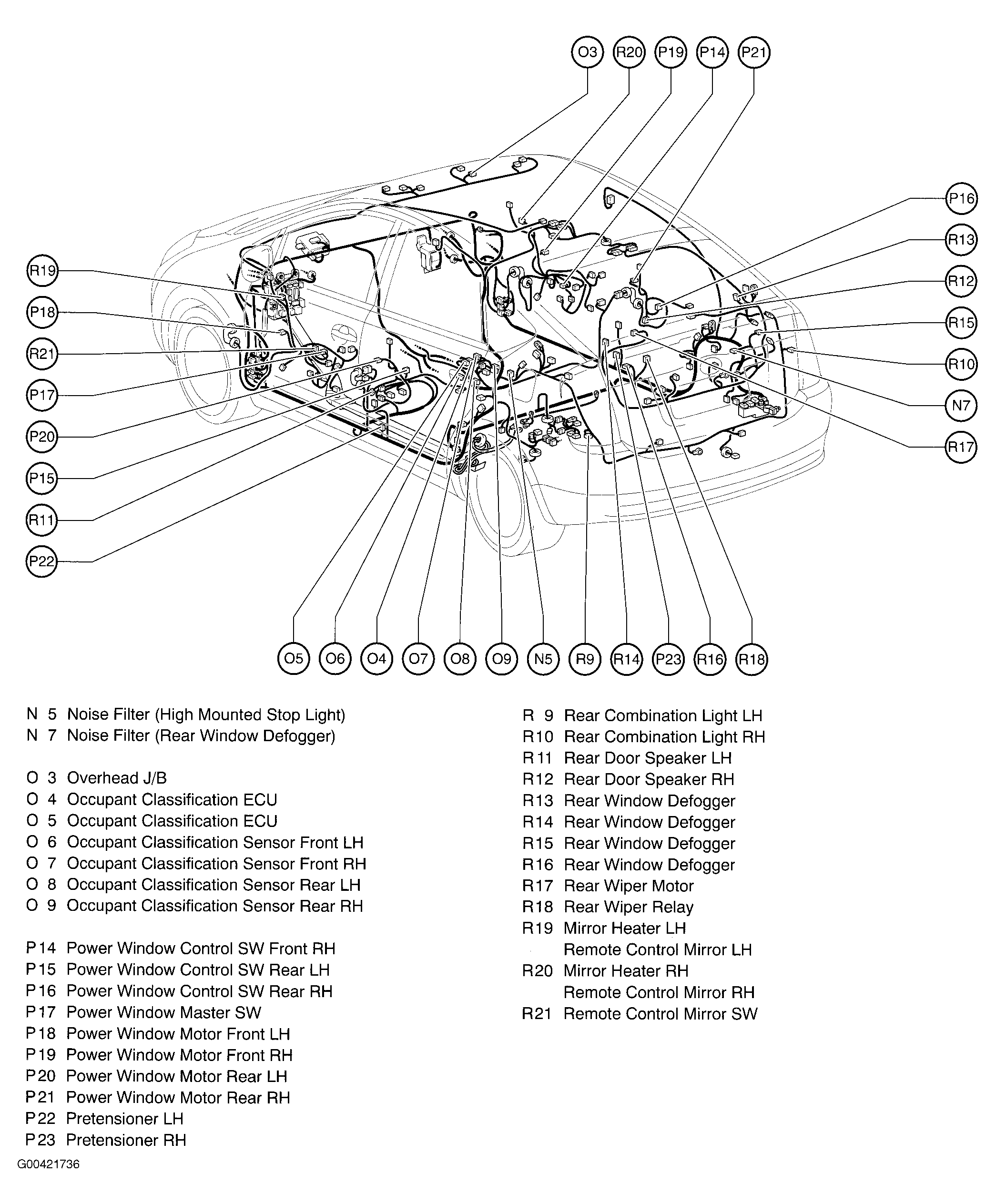

Fig 4: Vehicle Overview

G00421736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

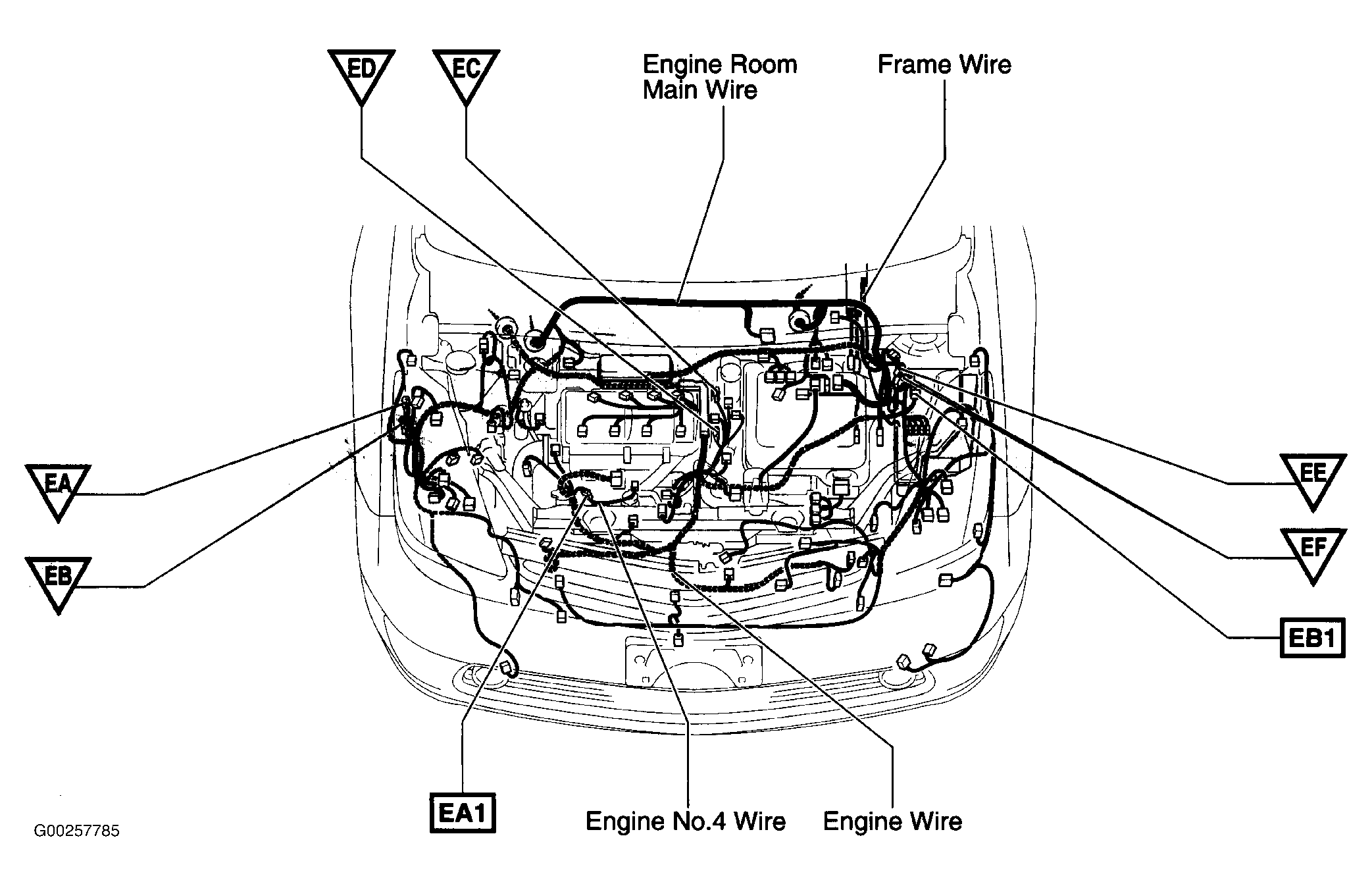

Fig 5: Engine Compartment

G00257785

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

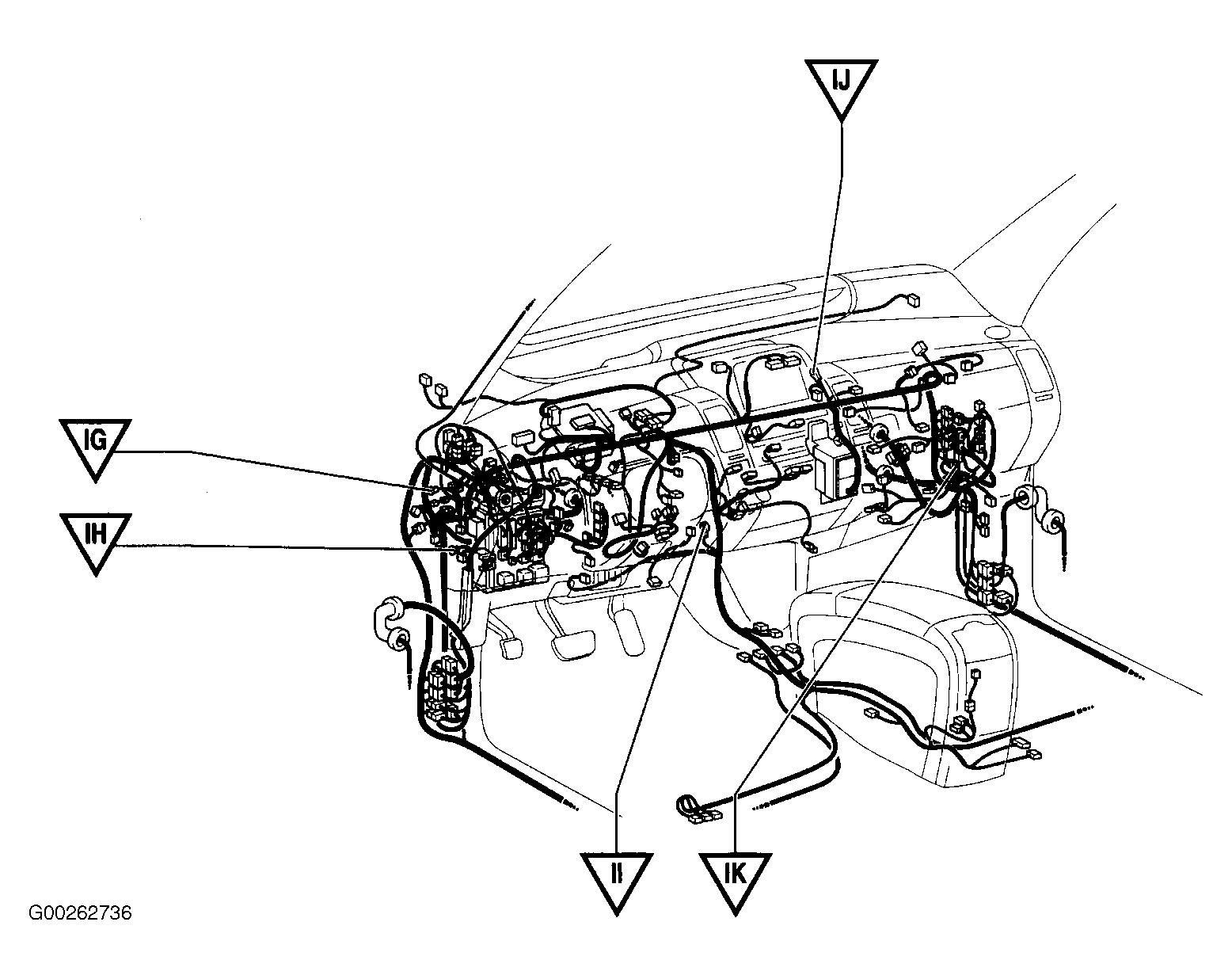

Fig 6: Dash

G00262736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

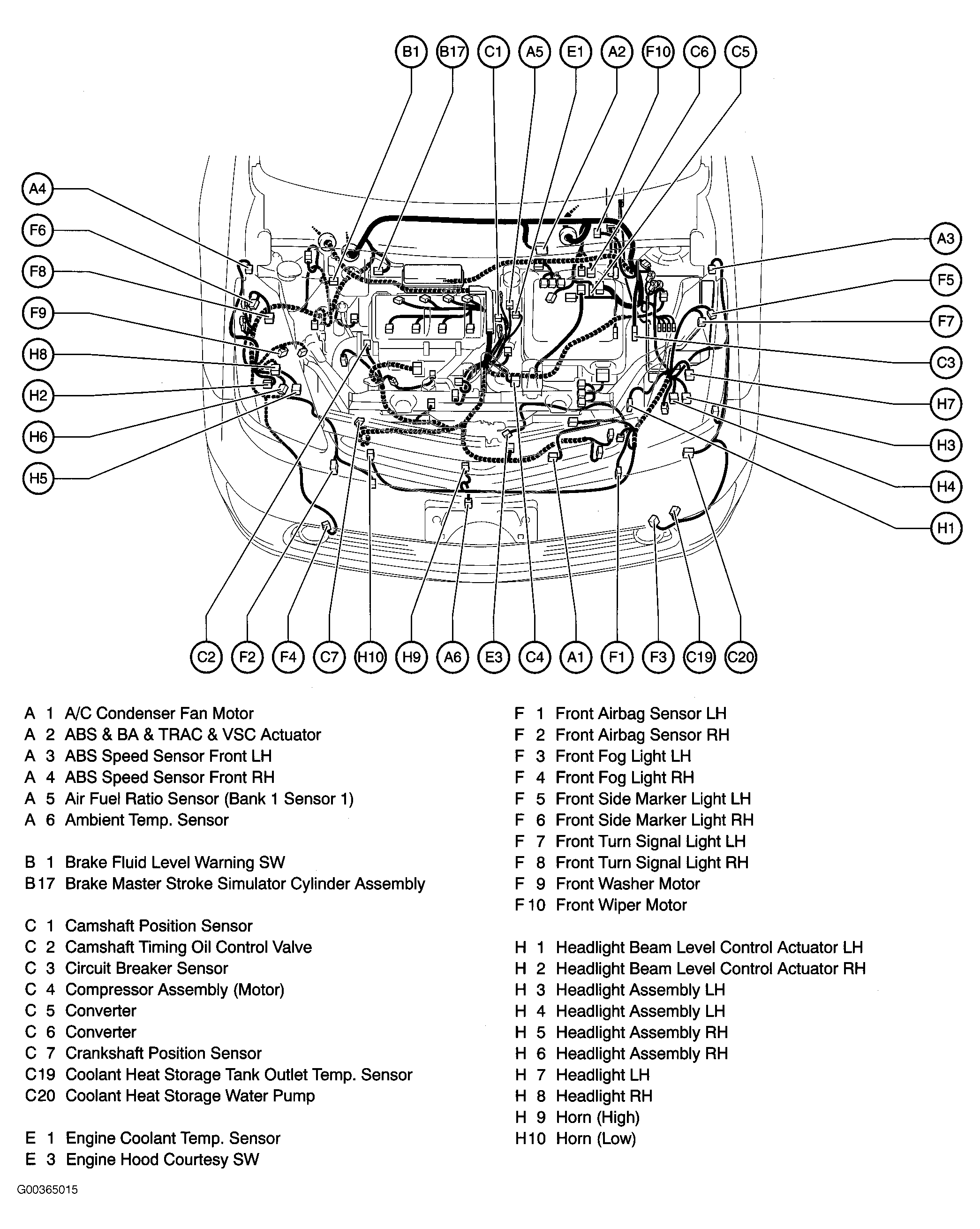

Fig 7: Engine Compartment

G00365015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

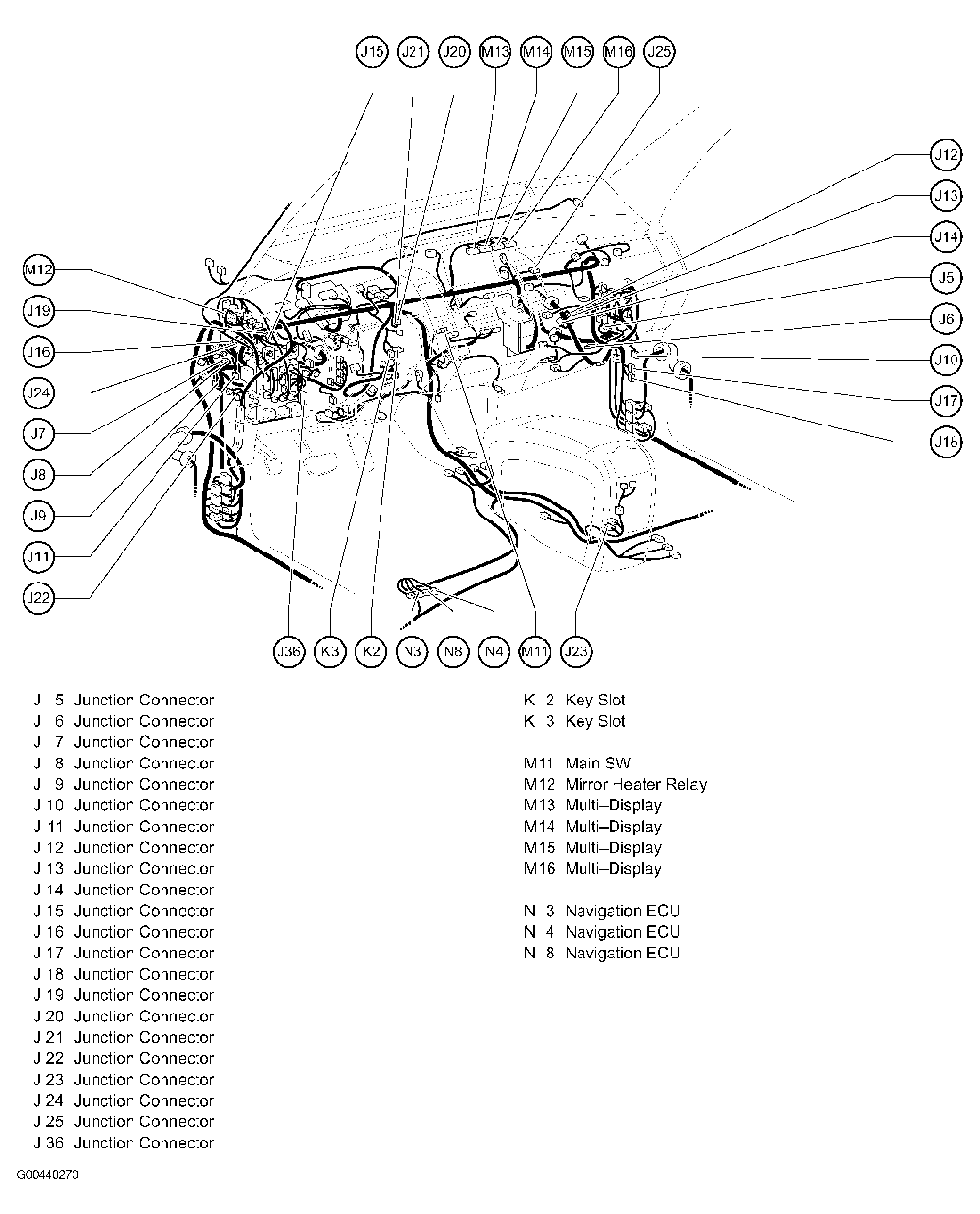

Fig 8: Dash

G00440270

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

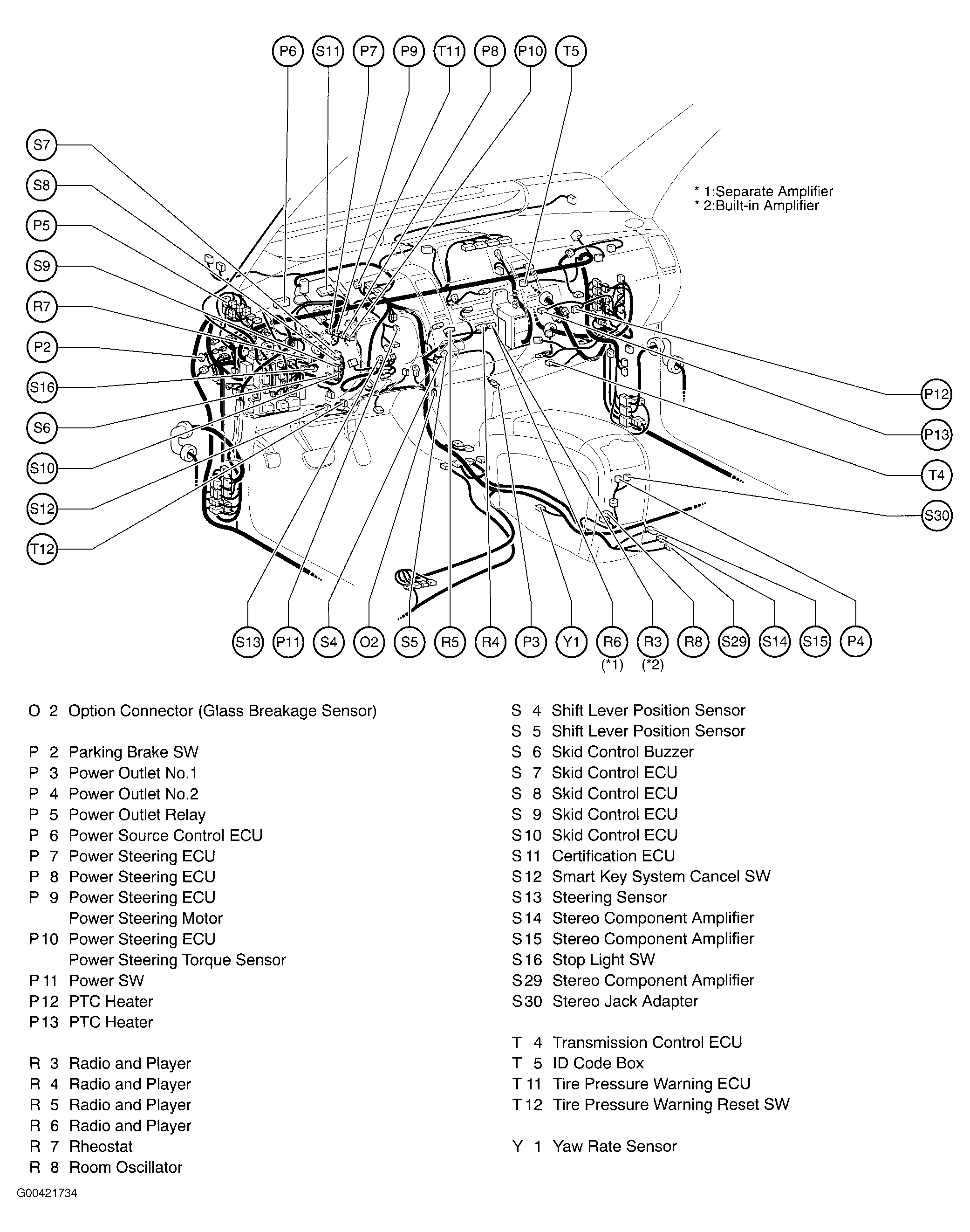

Fig 9: Dash

G00421734

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

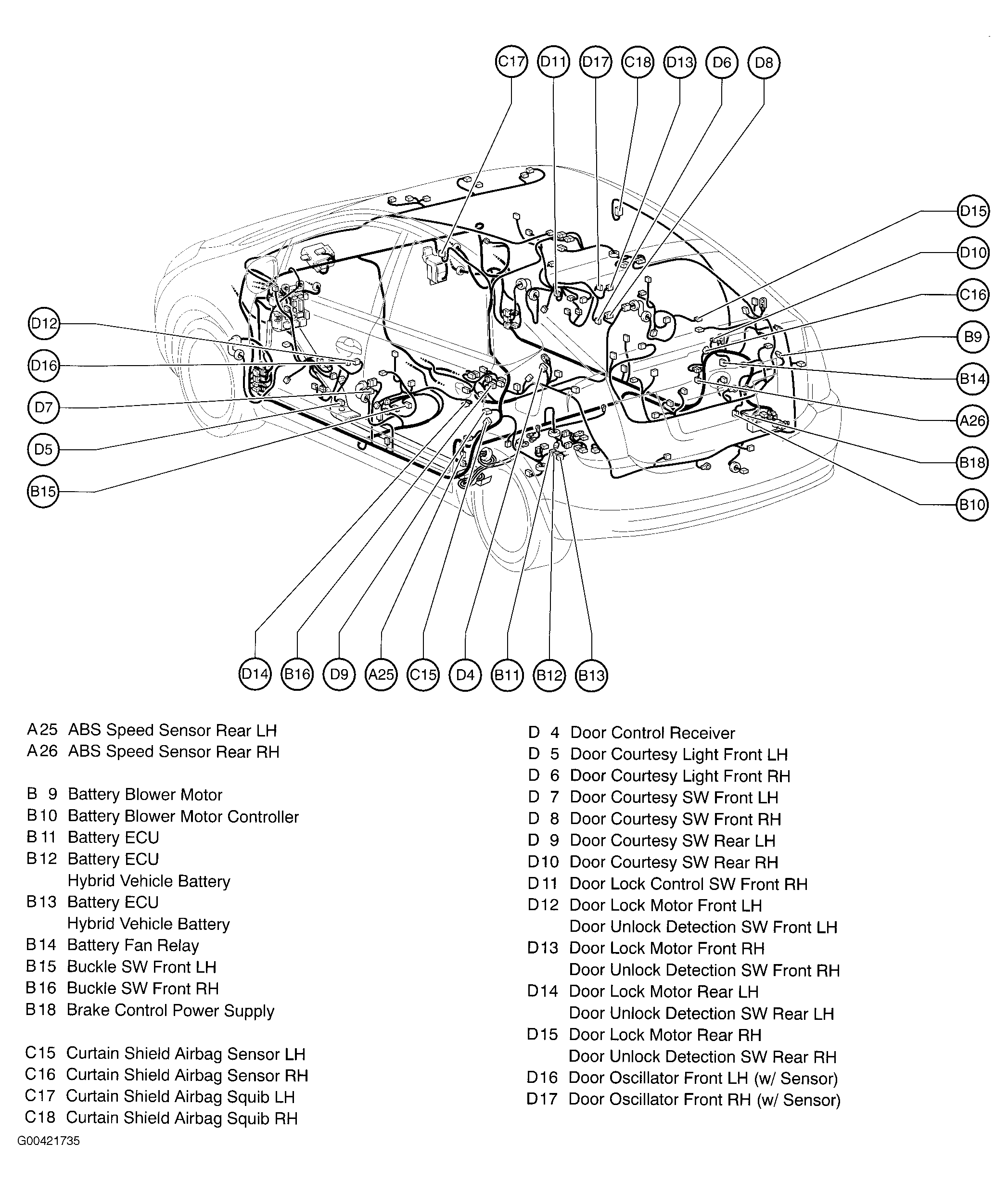

Fig 10: Vehicle Overview

G00421735

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

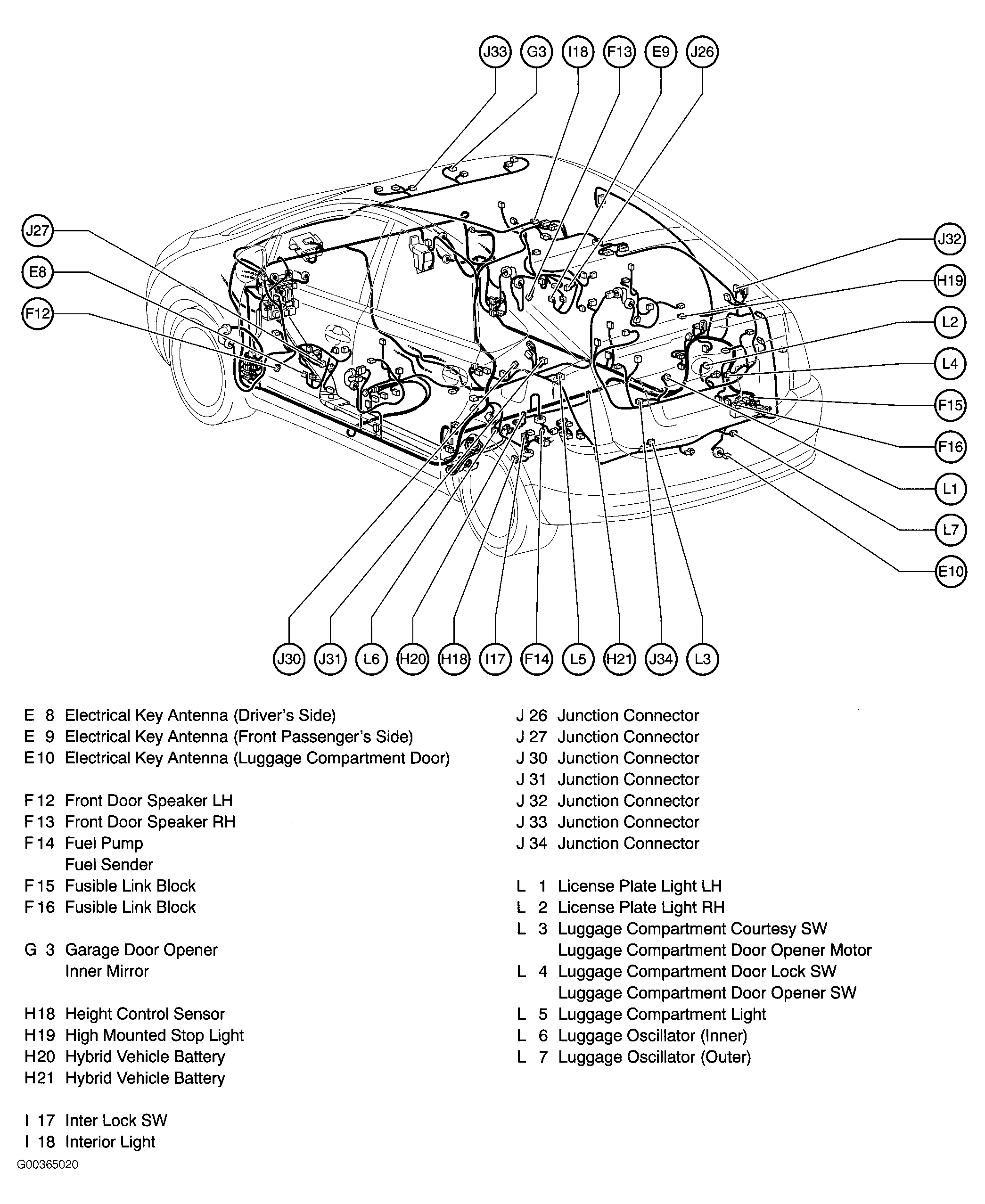

Fig 11: Vehicle Overview

G00365020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

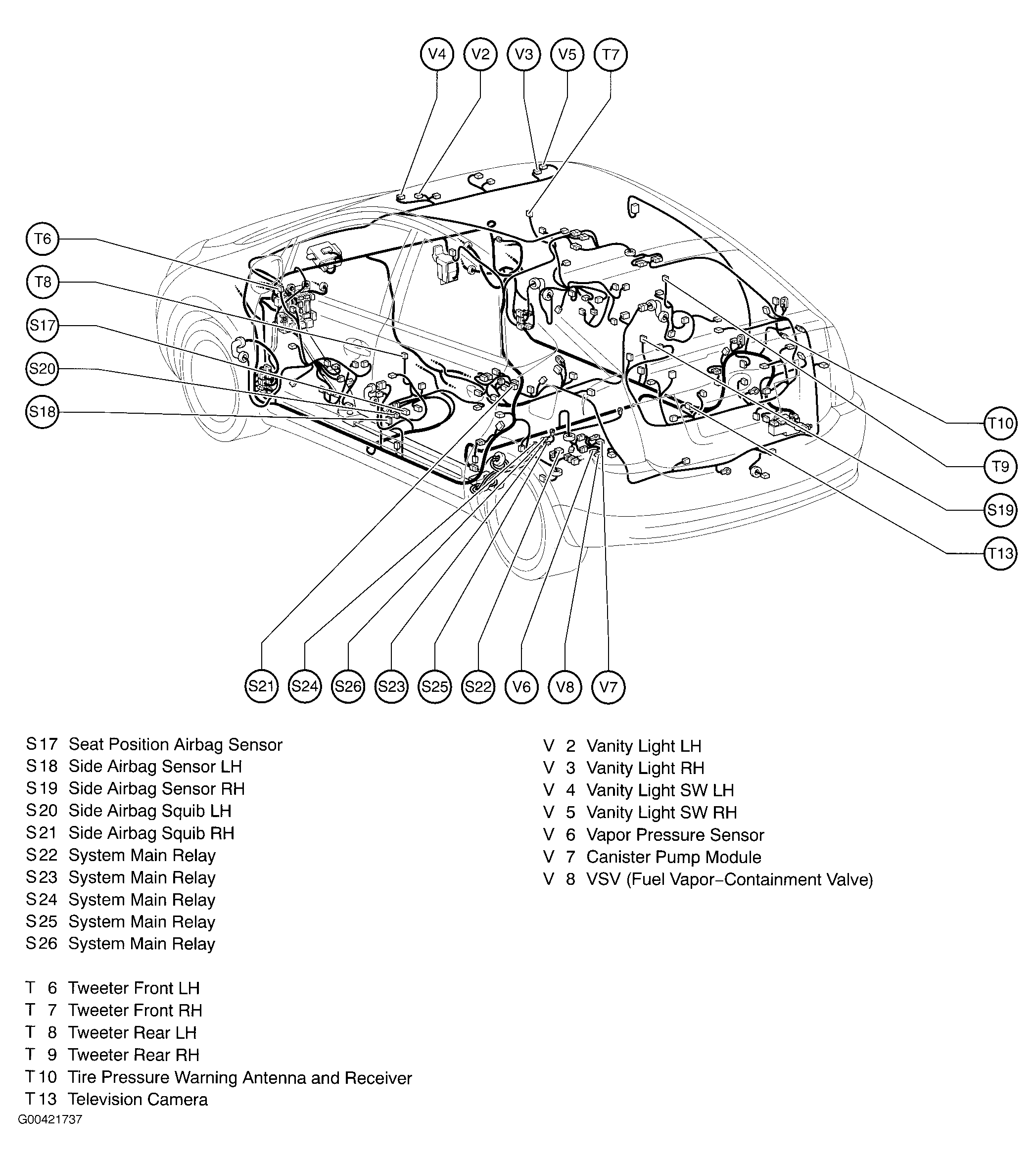

Fig 12: Vehicle Overview

G00421737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

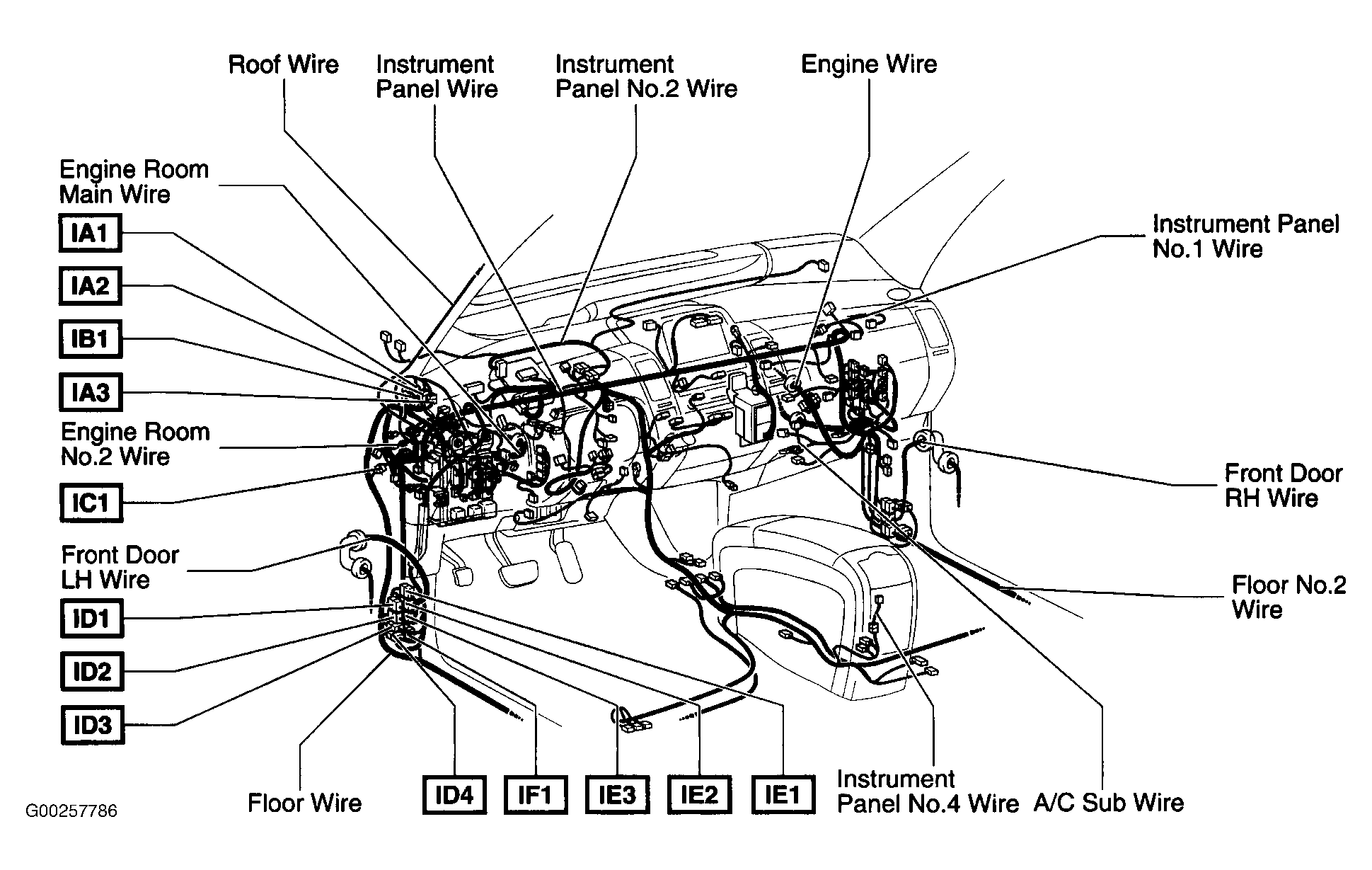

Fig 13: Dash

G00257786

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

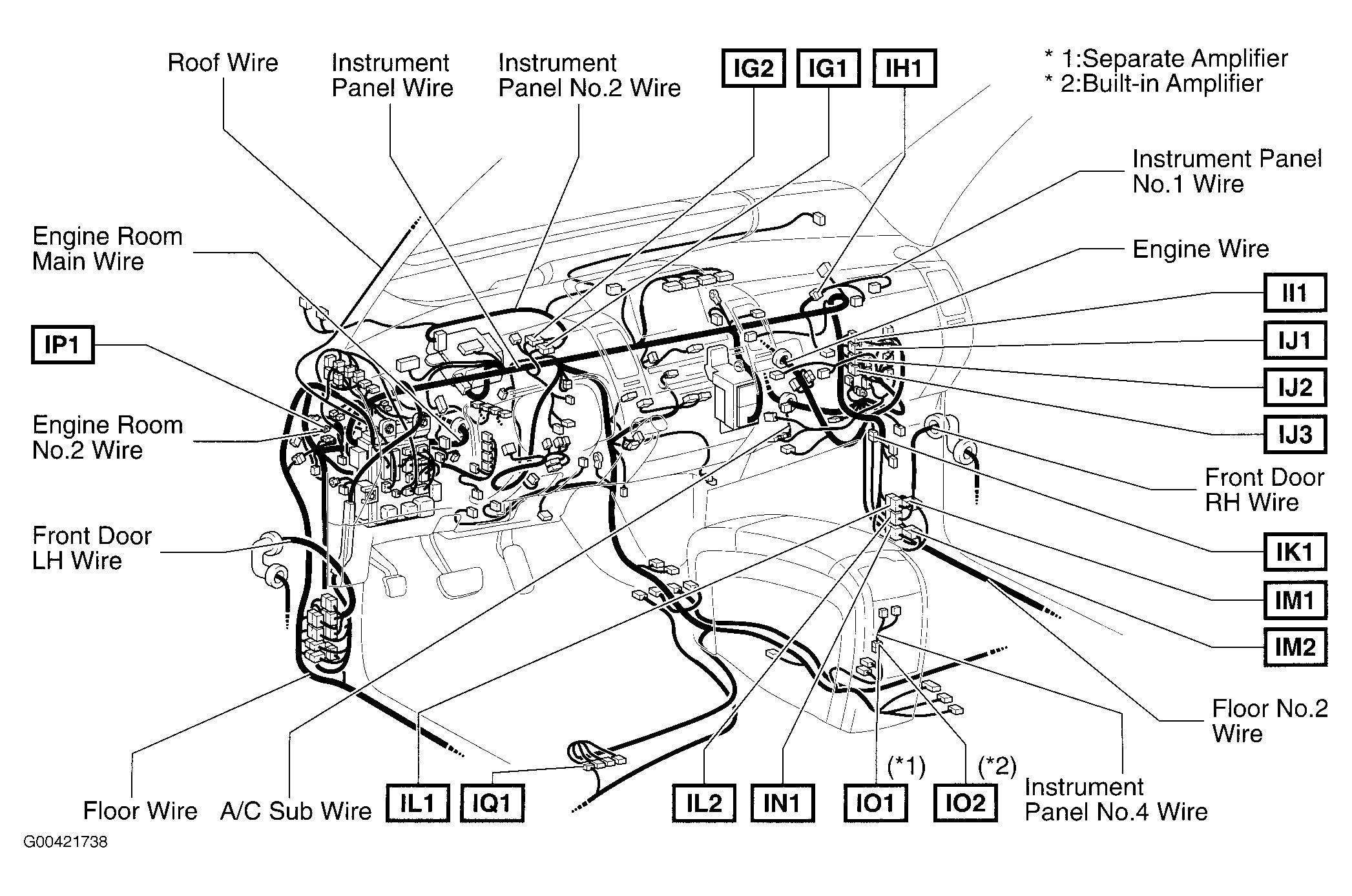

Fig 14: Dash

G00421738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

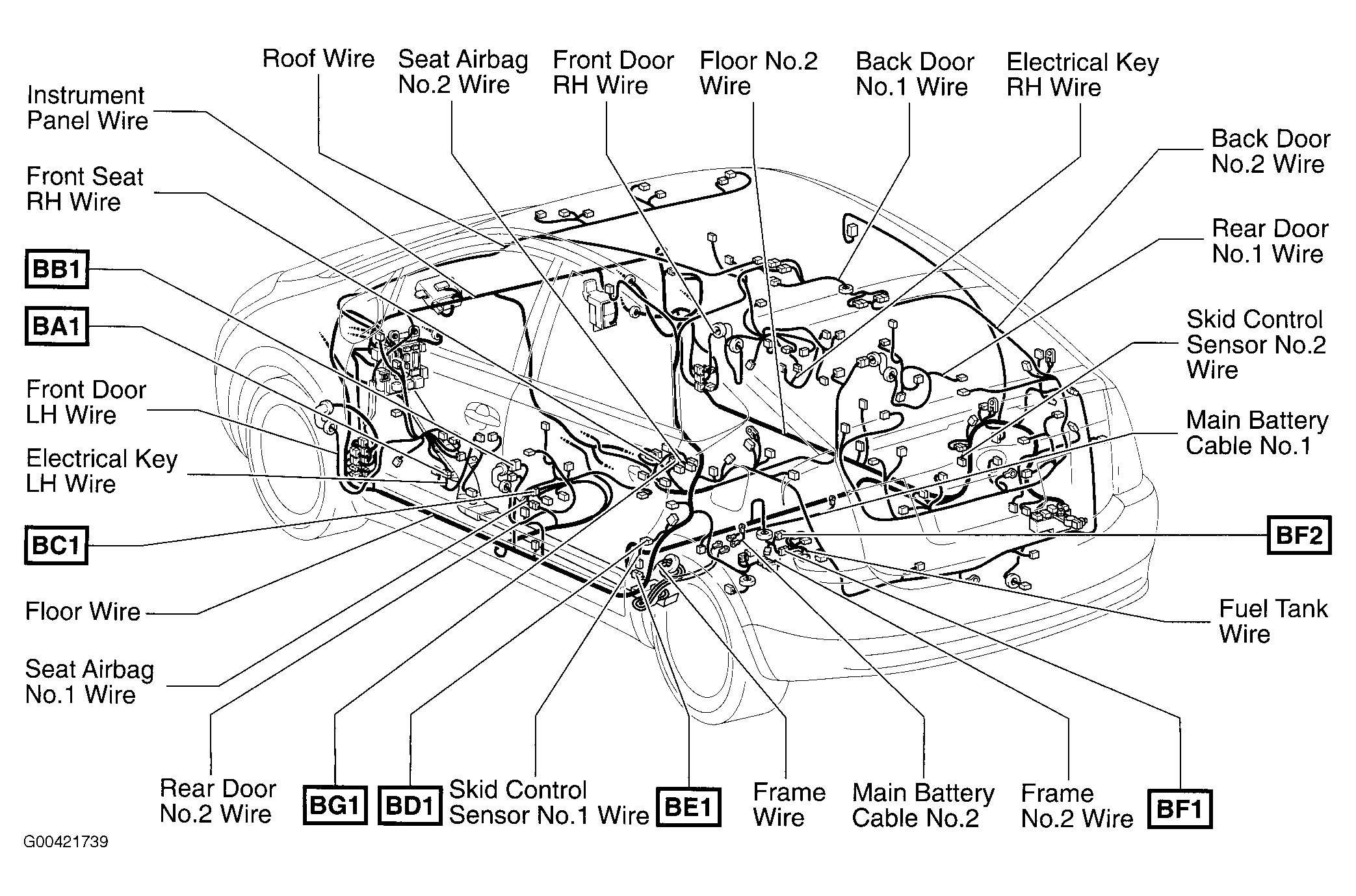

Fig 15: Vehicle Overview

G00421739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

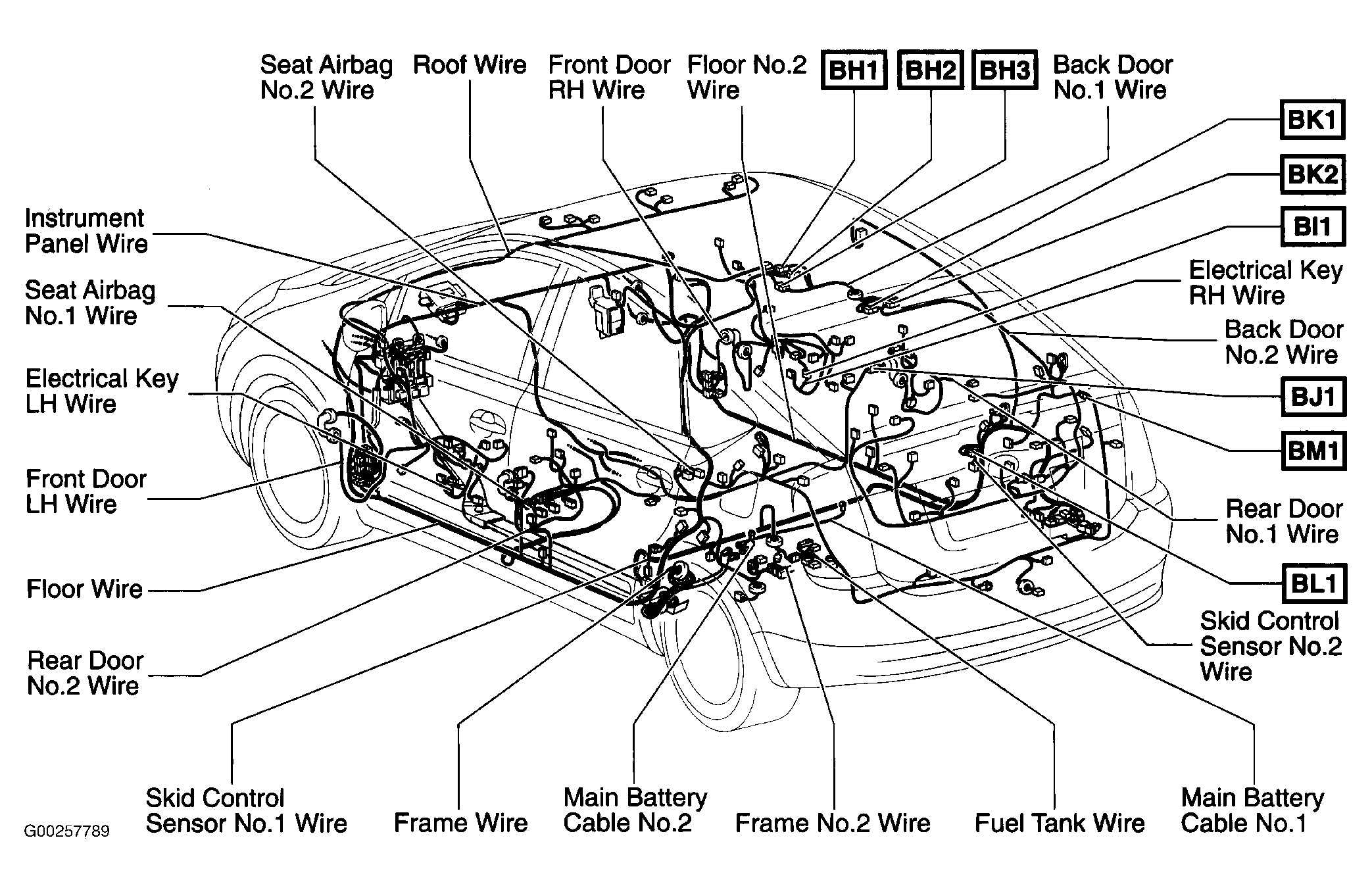

Fig 16: Vehicle Overview

G00257789

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

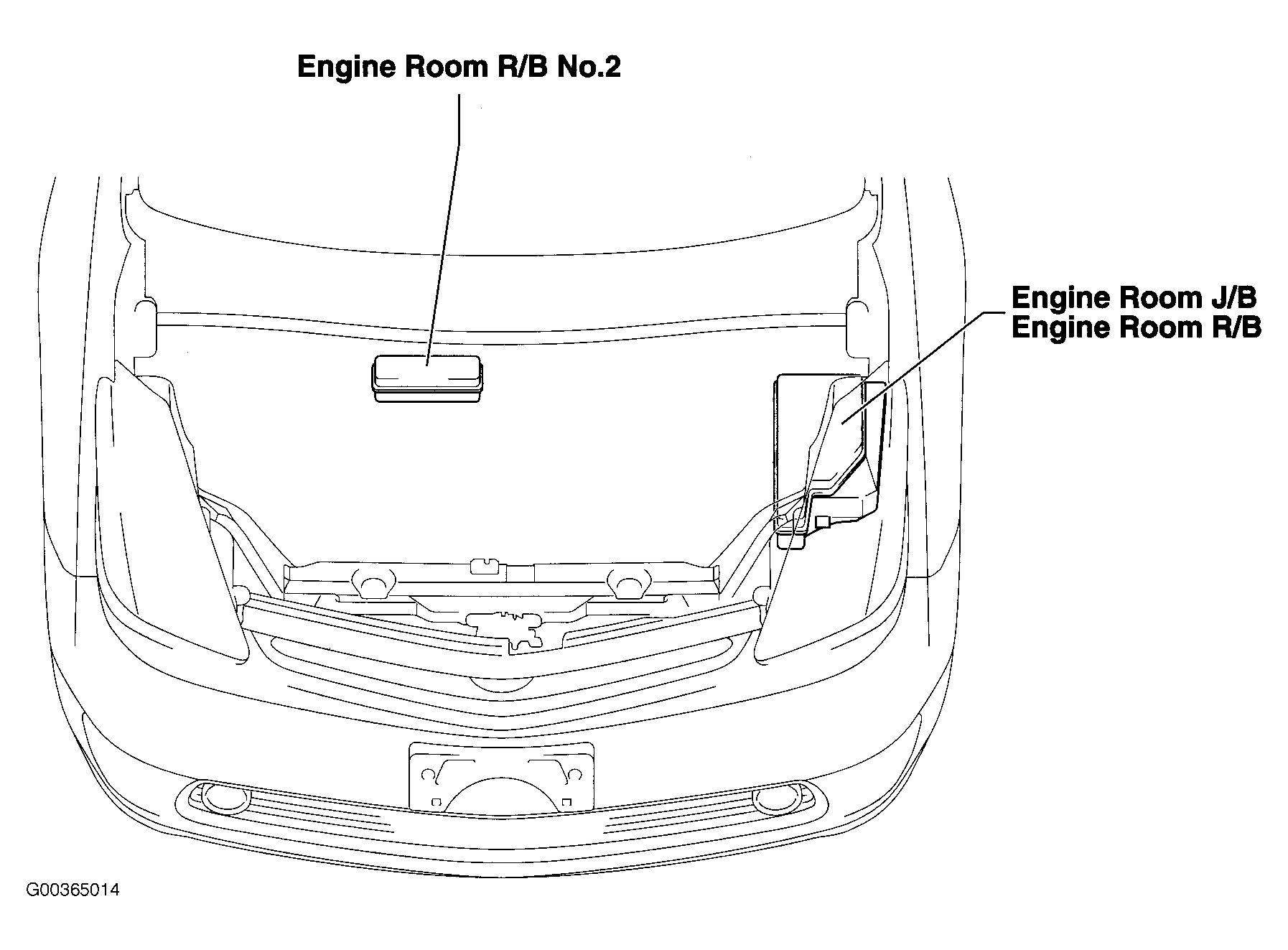

Fig 17: Engine Compartment

G00365014

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

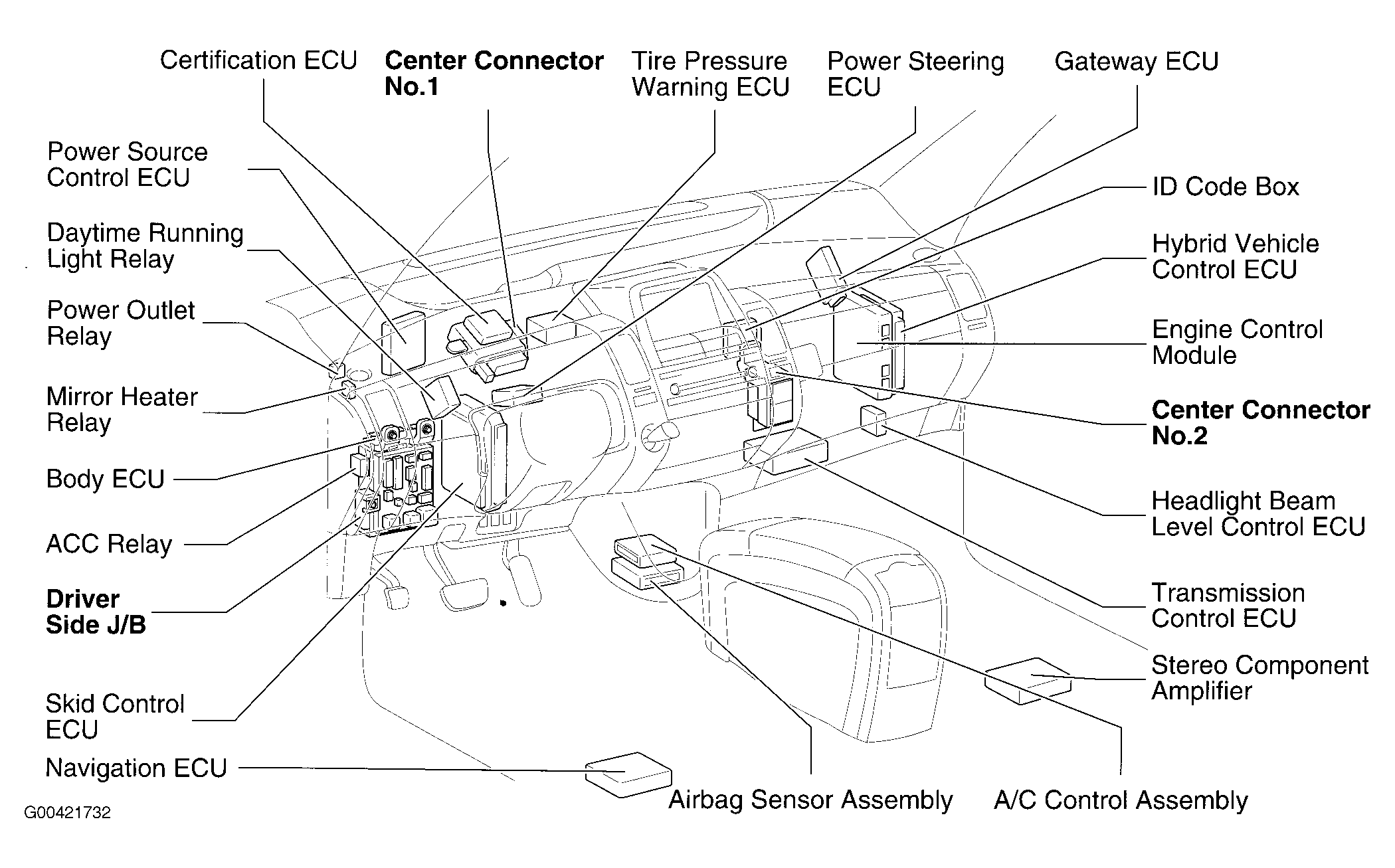

Fig 18: Dash

G00421732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

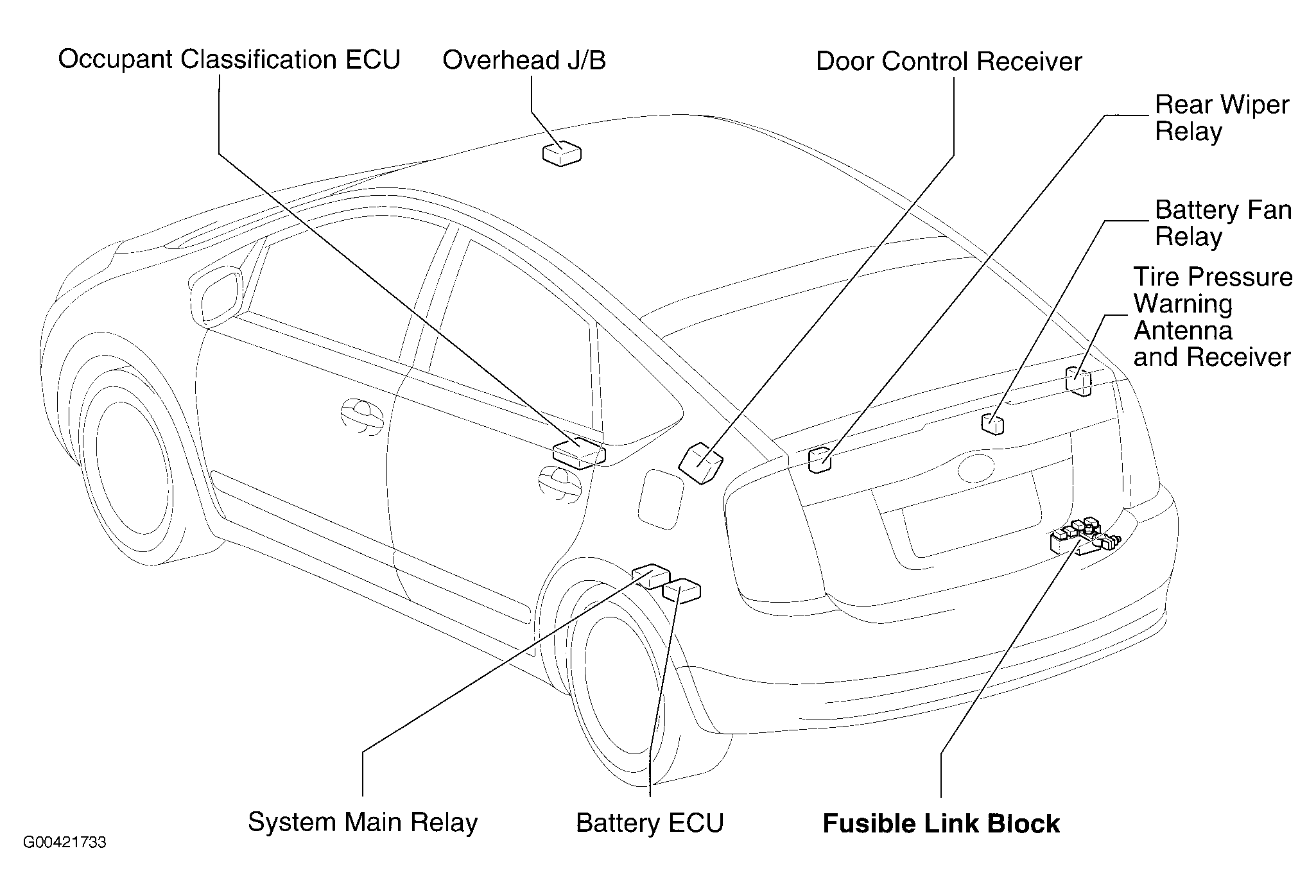

Fig 19: Rear Of Vehicle

G00421733

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

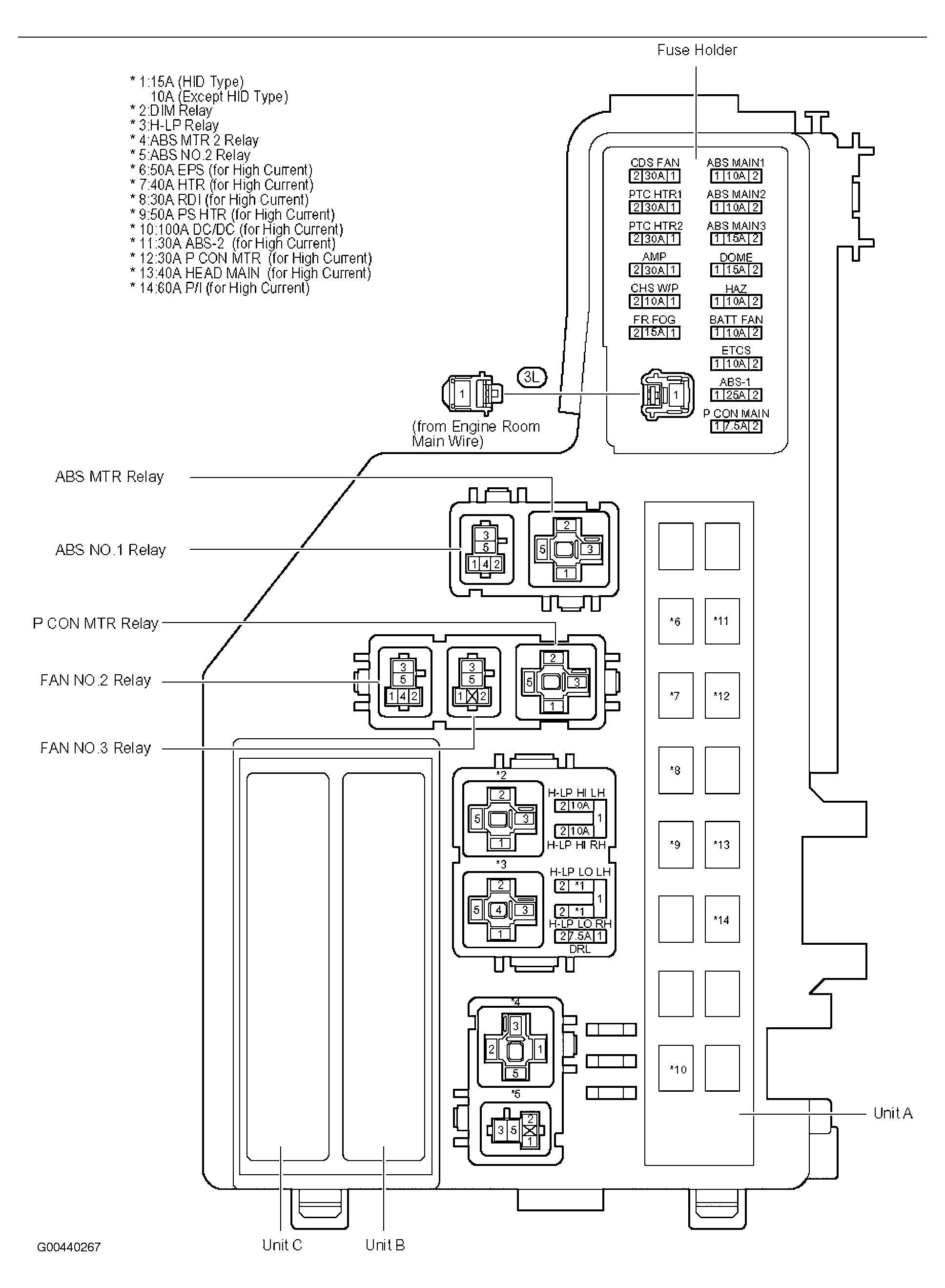

Fig 20: Engine Room J/B & R/B

G00440267

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

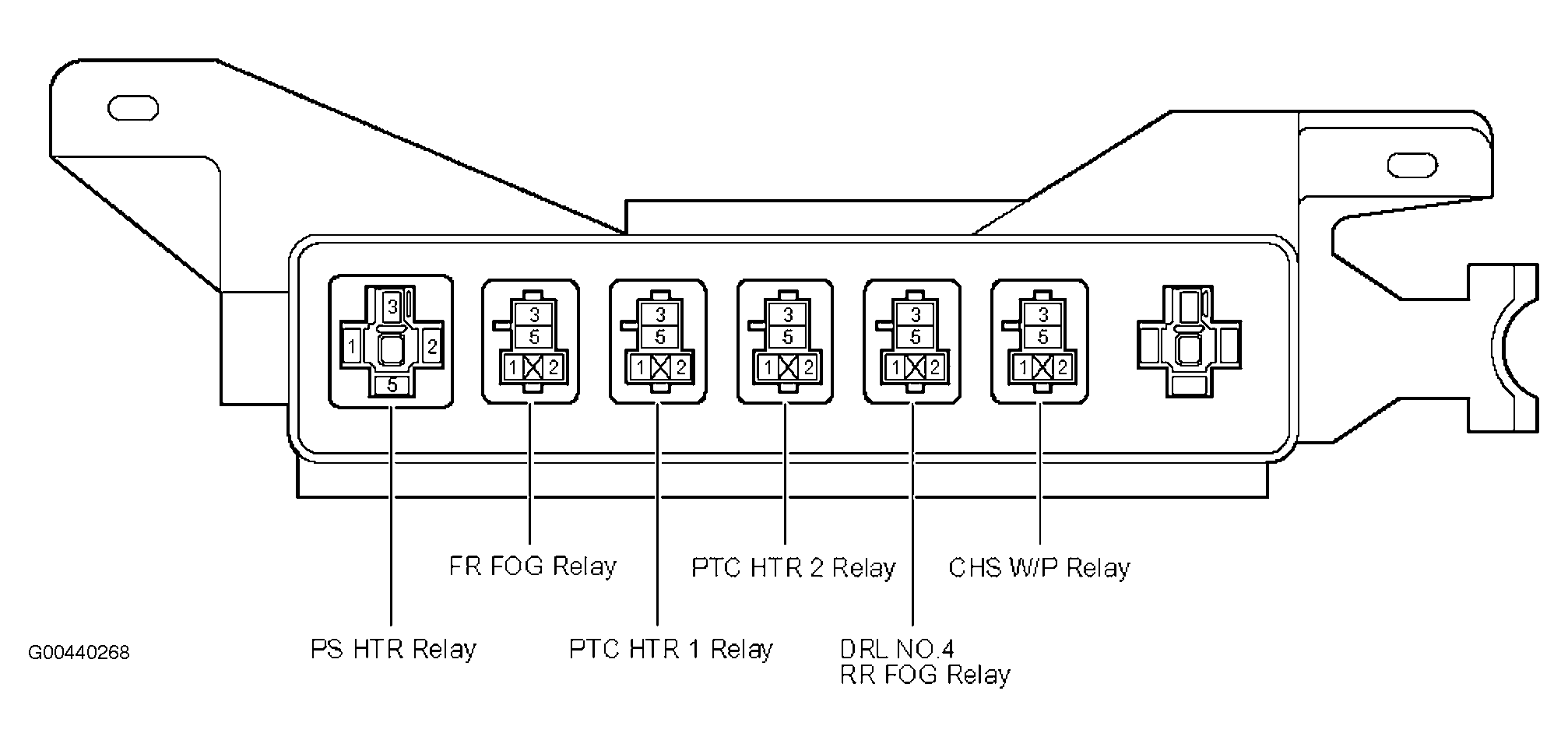

Fig 21: Engine Room R/B No. 2

G00440268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

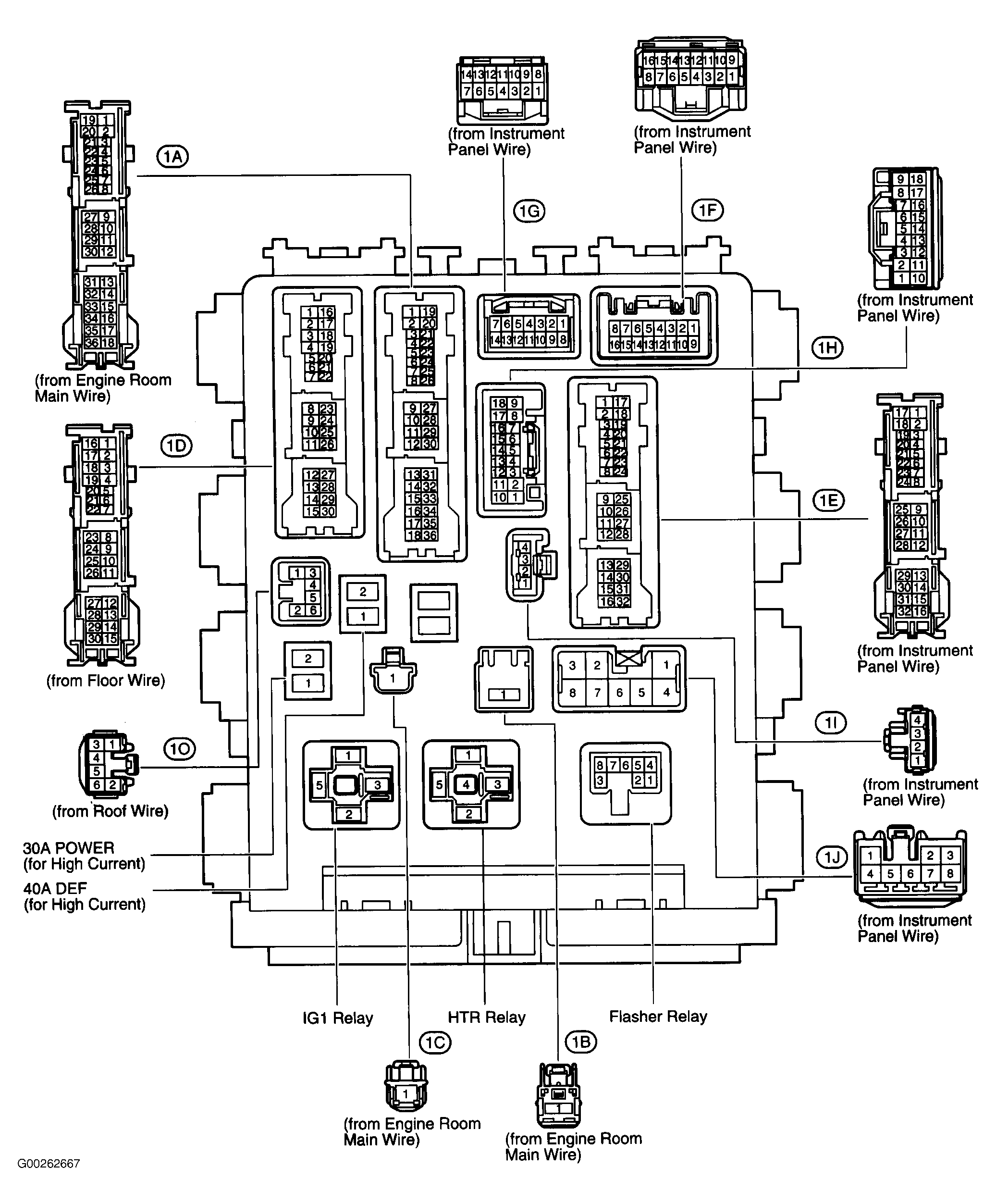

Fig 22: Driver Side J/B

G00262667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

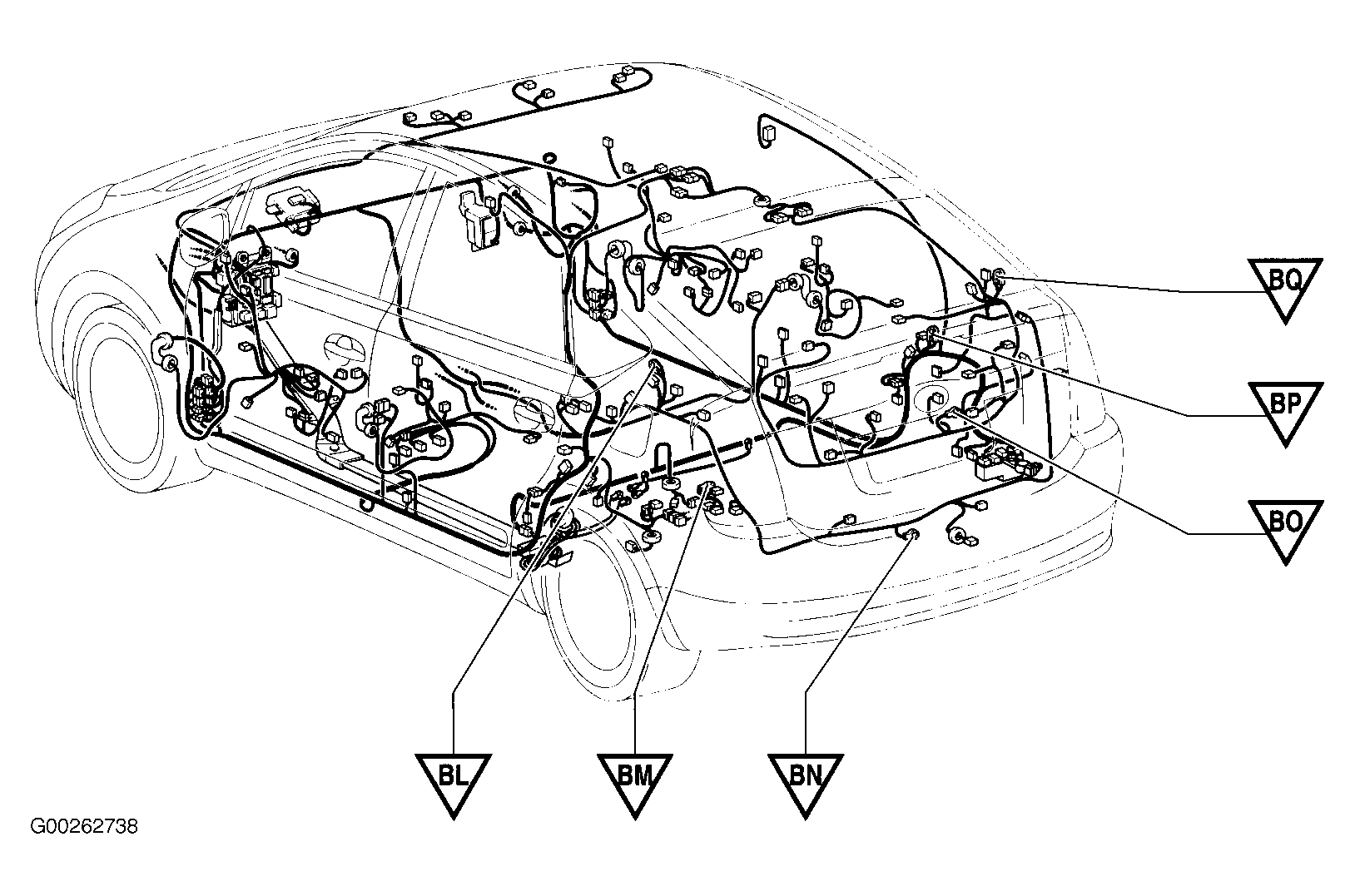

Fig 23: Rear Of Vehicle

G00262738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
