Confirmation Driving Pattern

PURPOSE (see READINESS MONITOR DRIVE PATTERN  )

HINT:

Performing this confirmation pattern will activate the catalyst monitoring by the ECM. This is very useful for verifying the completion of repairs.

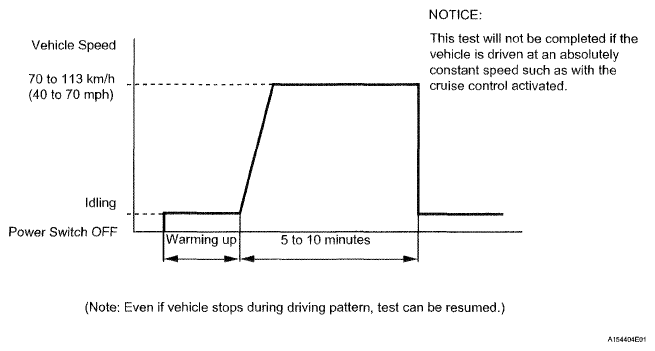

Fig 1: Vehicle Speed Graph

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Clear the DTCs.
2. Connect the intelligent tester to the DLC3.
3. Enter the following menus: DIAGNOSIS / CARB OBD II / READINESS TESTS. Check that CAT EVAL is INCMPL (incomplete).
   Fig 2: Readiness Tests Screen Display - CAT CMPL Is INCMPL

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Drive the vehicle according to the confirmation driving pattern. Note the state of the Readiness Tests. They will change to COMPL (complete) as the CAT evaluation monitors operate.
5. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC INFO / PENDING CODES. Check if any DTC (any pending code) is set.

   If the READINESS CODE of CAT EVAL was INCMPL and any DTC (includes pending codes) was not set, extend the driving time.
