Parts Location

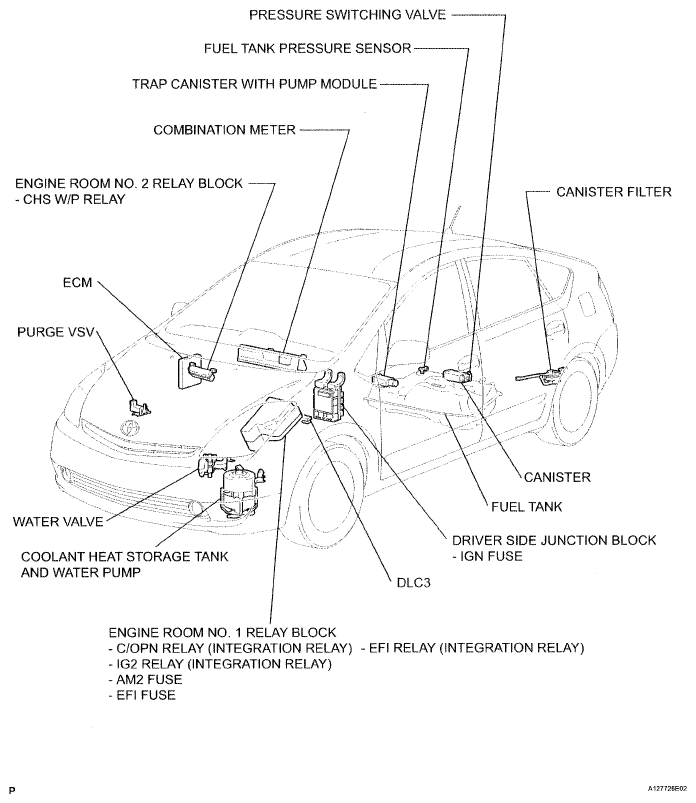

Fig 1: Identifying Engine Control System Components Location (1 Of 2)
G05188596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Engine Control System Components Location (2 Of 2)
G05188597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
