Ignition Coil: Installation

  1. INSTALL IGNITION COIL ASSEMBLY
    1. Install the 4 ignition coils with the 4 bolts.

      Torque: 9.0 N*m (90 kgf*cm, 80 in.*lbf)

    2. Connect the 4 ignition coil connectors.

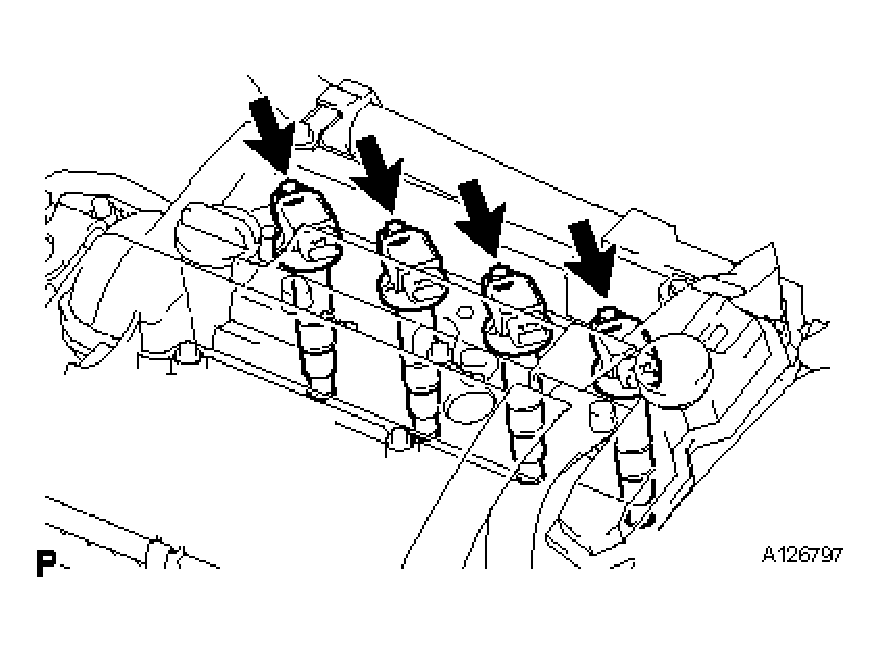

      Fig 1: Installing Ignition Coil Bolts
      G04473174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL ENGINE ROOM NO. 2 RELAY BLOCK
    1. Install the relay block with the 2 bolts.

      Torque: 8.4 N*m (86 kgf*cm, 74 ft.*lbf)

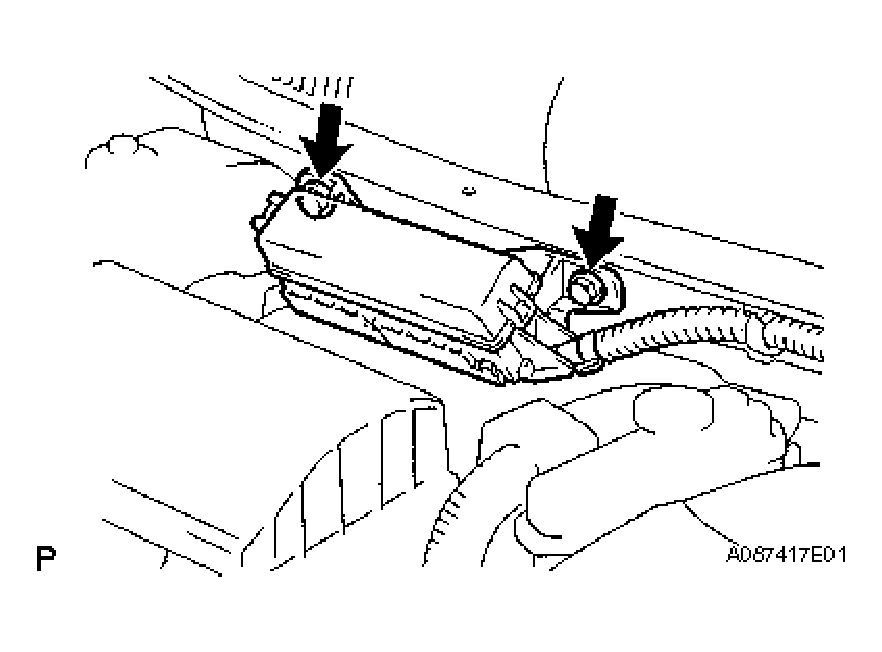

    Fig 2: Installing Relay Block With Bolts
    G04473175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  4. INSTALL REAR NO. 3 FLOOR BOARD (See  INSTALLATION  )
  5. INSTALL REAR DECK FLOOR BOX (See  INSTALLATION  )
  6. INSTALL REAR NO. 2 FLOOR BOARD (See  INSTALLATION  )
  7. PERFORM INITIALIZATION
    1. Perform INITIALIZATION .
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
