Front Seat Inner Belt Assembly: Inspection

INSPECT FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

Measure the resistance of the buckle switch.

Standard resistance

STANDARD RESISTANCE CHART

Tester Connection	Condition	Specified Condition
1 - 2	Seat belt is unfastened	Below 1 Ω
1 - 2	Seat belt is fastened	1 MΩ or higher

If the result is not as specified, replace the belt assembly.

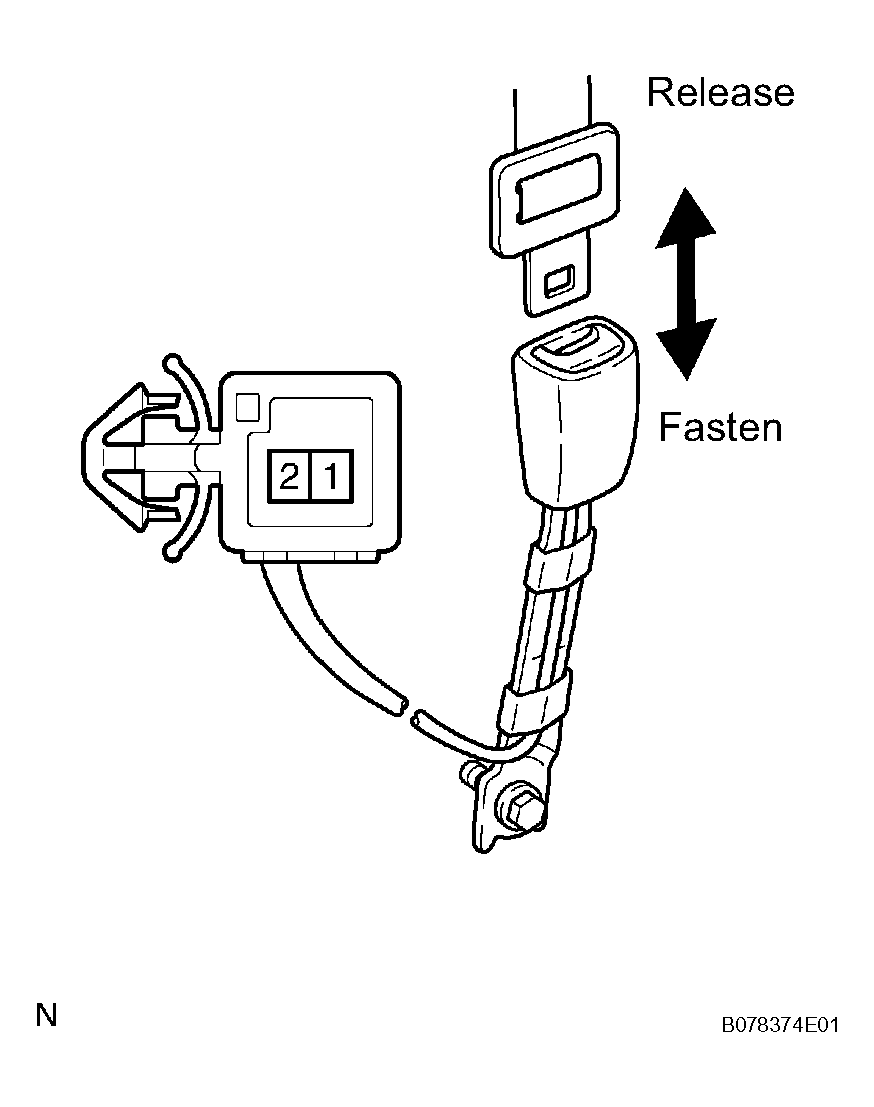

Fig 1: Checking Buckle Switch
