Fuel Tank: Components

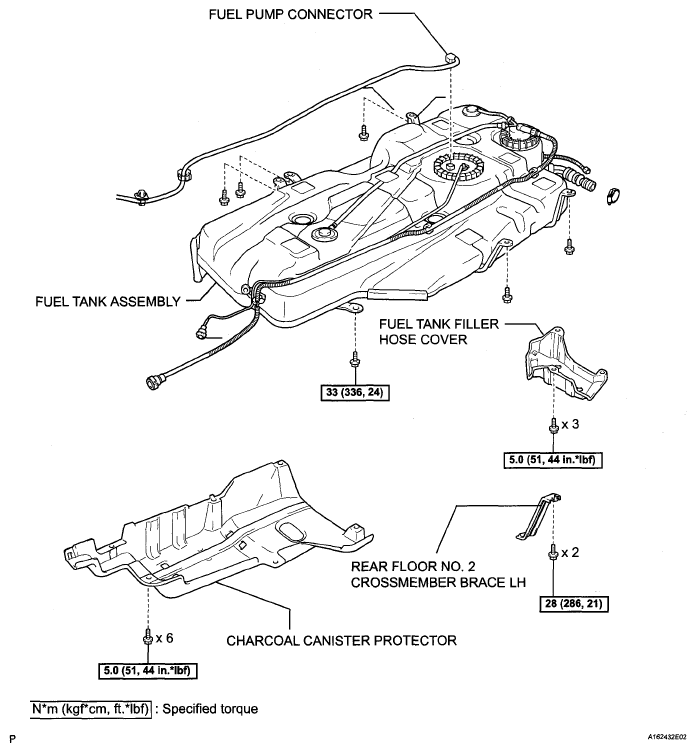

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
G05138241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

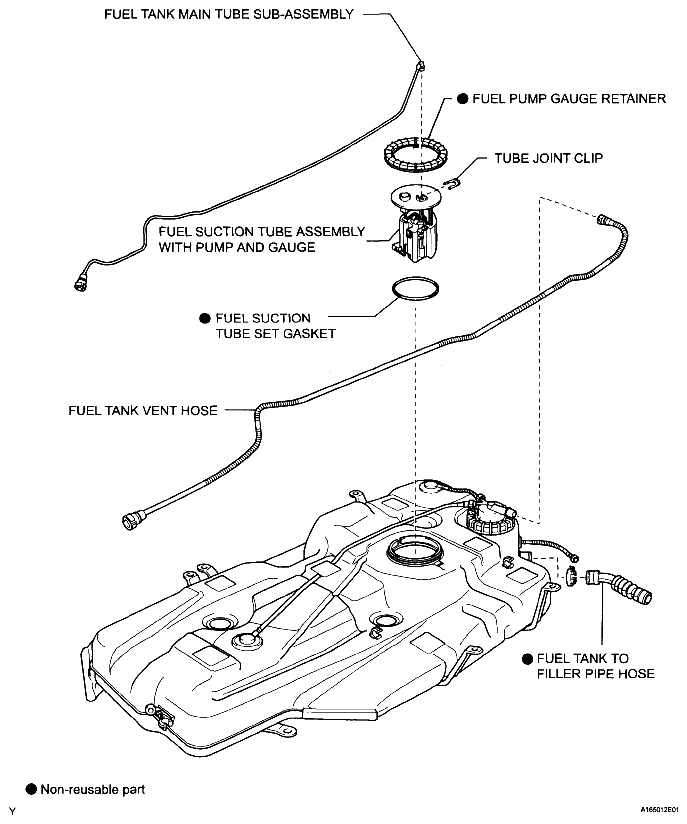

Fig 2: Identifying Fuel Tank Components (1 Of 2)
G05138242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
