Fuel Tank: Installation

CONNECT FUEL TANK VENT HOSE
INSTALL FUEL TANK TO FILLER PIPE HOSE
1. Install a new fuel tank to filler pipe hose as shown in the illustration.

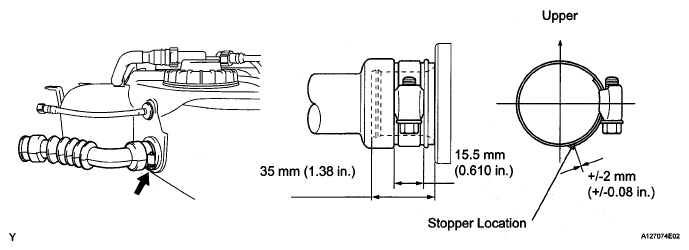

  Fig 1: Locating Fuel Tank To Filler Pipe Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE (See INSTALLATION )
INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY (See INSTALLATION )
INSTALL FUEL TANK ASSEMBLY
1. Set up the fuel tank assembly to the transmission jack.
2. While operating the transmission jack, fasten the 4 claws for the wire harness and connect the fuel pump connector, then install the fuel tank and the 3 fuel tank bands to the vehicle.
3. Tighten the 6 set bolts of the 3 fuel tank bands.
  Torque: 33 N*m (336 kgf*cm, 24 ft.*lbf)
4. Install the 2 wire harness clamps.
5. Connect the fuel tube.
  1. Push in the fuel tube connector to the pipe until fuel tube connector makes "click" sound.
    NOTE:
    Check if there is any damage or foreign objects on the connected part.

    After connecting, check if the connector and the pipe are securely connected by pulling on them.

    Fig 2: Pushing Fuel Tube Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the fuel tank to filler pipe hose as shown in the illustration.

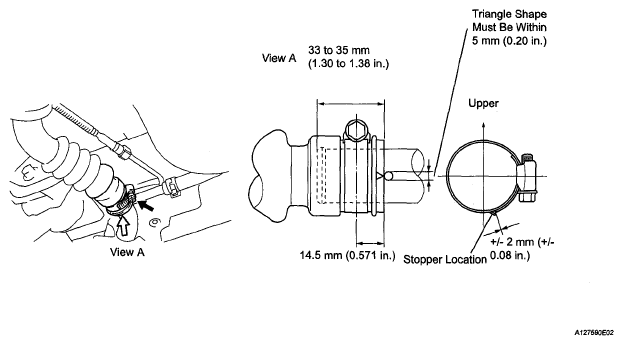

  Fig 3: Identifying Filler Pipe Hose Dimension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the fuel tank main tube.
  1. Push in the fuel tube connector to the pipe until fuel tube connector makes "click" sound.
    NOTE:
    Check if there is any damage or foreign objects on the connected part.

    After connecting, check if the connector and the pipe are securely connected by pulling on them.
  Fig 4: Connecting Fuel Tank Main Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Connect the fuel tank vent hose.
ADD FUEL
INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )
INSTALL FUEL TANK FILLER HOSE COVER
1. Install the 3 bolts and the fuel tank filler hose cover.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  Fig 5: Pushing Fuel Tank Main Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR FLOOR NO. 2 CROSSMEMBER BRACE LH
1. Install the rear floor No. 2 crossmember brace LH with 2 bolts.
  Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)
Fig 6: Identifying Fuel Tank Filler Hose Cover And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CHARCOAL CANISTER PROTECTOR (See INSTALLATION )
