Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

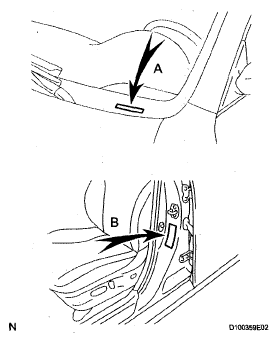

1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  A: Vehicle Identification Number

  B: Certification Label

  Fig 1: Locating Vehicle Identification Number And Certification Label
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

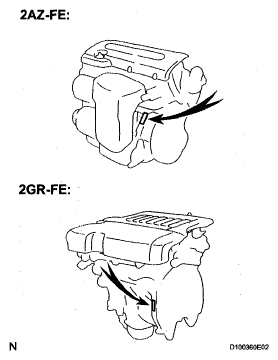

1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

  Fig 2: Locating Engine Serial Number Stamped On Cylinder Block Of Engine
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. The transaxle serial number is stamped on the housing as shown in the illustration.
  A: E351E Transaxle Serial Number

  B: U250E Transaxle Serial Number

  C: U660E Transaxle Serial Number

  Fig 3: Identifying Transaxle Serial Number Stamped On Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
