Customize Parameters

AIR CONDITIONING SYSTEM

HINT:

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current settings before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

AIR CONDITIONER (AUTO A/C)

AIR CONDITIONER (AUTO A/C) REFERENCE CHART

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
SET TEMP SHIFT (Set Temperature Shift)	NORMAL	To shift the temperature against the displayed temperature	+2 C / +1 C / NORMAL / -1 C / -2 C
AIR INLET MODE (Air Inlet Mode)	AUTO	In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode	MANUAL / AUTO
COMPRESSOR MODE (Compressor Mode)	AUTO	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF	MANUAL / AUTO
COMPRS / DEF OPER (Compressor / Air Inlet DEF Operation)	LINK	Function to turn the A/C ON automatically linked with the FRONT DEF button when the A/C is OFF	NORMAL / LINK
EVAP CTRL (Evaporator Control)	AUTO	Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power, or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows from fogging up	MANUAL / AUTO
FOOT / DEF MODE (Foot / DEF auto mode)	ON	Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON	OFF / ON
AUTO BLOW UP (Foot / DEF automatic blower up function)	ON	Function to change the blower level automatically when the defroster is ON	OFF / ON
AMBIENT TMP SFT (Ambient Temperature Shift)	NORMAL	Function to shift the ambient temperature against the displayed ambient temperature	+3 C / +2 C / +1 C / NORMAL / -1 C / -2 C / -3 C

THEFT DETERRENT SYSTEM (w/ Smart Key System)

HINT:

The following items can be customized.

NOTE:

After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
Be sure to record the current settings before customization.
When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the system, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).

Security

SECURITY REFERENCE CHART

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
PASSIVE MODE (Passive Arming Mode)	OFF	PASSIVE MODE is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not in the key cylinder and all doors, engine hood and luggage compartment door are closed, even if doors are not locked by wireless or door key lock operation In PASSIVE MODE, if you do not perform following operations within 14 seconds after door is opened during armed state, theft deterrent system will judge that condition as a theft and switch to alarm sounding state Unlock any door by key or wireless operation Turn the ignition switch ON Open luggage compartment door by key or wireless operation	ON/OFF
WARN BY HORN (Warning by horn)	ON	Function that makes vehicle horn and theft deterrent horn be able to be used as a warning device	ON/OFF
ENTRY DELAY (Entry delay time)	14 s	Function that changes entry delay time (time before warning starts) for PASSIVE MODE	0 s/14 s/30 s

THEFT DETERRENT SYSTEM (w/o Smart Key System)

HINT:

The following items can be customized.

NOTE:

After confirming whether the items requested by the customer are applicable or not for customization, perform customizing operations.
Be sure to record the current settings before customization.
When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the system, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).

Security

SECURITY REFERENCE CHART

DISPLAY (ITEM)	DEFAULT	CONTENTS	SETTING
PASSIVE MODE (Passive Arming Mode)	OFF	PASSIVE MODE is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not in the actuation area and all doors, engine hood and luggage compartment door are closed, even if doors are not locked by wireless or door key lock operation In PASSIVE MODE, if you do not perform following operations within 14 seconds after door is opened during armed state, theft deterrent system will judge that condition as a theft and switch to alarm sounding state Unlock any door by key or wireless operation Turn the engine switch on (IG) Open luggage compartment door by key or wireless operation	ON/OFF
WARN BY HORN (Warning by horn)	ON	Function that makes vehicle horn and theft deterrent horn be able to be used as a warning device	ON/OFF
ENTRY DELAY (Entry delay time)	14 s	Function that changes entry delay time (time before warning starts) for PASSIVE MODE	0 s/14 s/30 s

LIGHTING SYSTEM

HINT:

The followings are the possible items to be customized.

NOTE:

Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
Be sure to record the current value before customizing.
In case of performing the troubleshooting, pay attention because there is a possibility that the function has been disabled by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation has not been disabled by customizing, then perform the troubleshooting.)

ILLUMINATED ENTRY:

ILLUMINATED ENTRY REFERENCE CHART

Display	Default	Contents	Setting
LIGHTING TIME	15 s	Changes the lighting time of the interior light and ignition key cylinder light.	7.5 s / 15 s / 30 s
I/L ON / UNLOCK	ON	Lights up the interior light and ignition key cylinder light when a door is unlocked.	ON / OFF
I/L ON / ACC OFF	ON	Lights up the interior light and ignition key cylinder light when the ignition switch is turned from on (ACC) to off	ON / OFF

LIGHT CONTROL:

LIGHT CONTROL REFERENCE CHART

Display	Default	Contents	Setting
Light Auto OFF Delay	30 s	Keeps the headlights on for a certain period of time after turning the ignition switch off and closing all the doors with the headlights on.	OFF / 30 s / 60 s / 90 s
Sensitivity	NORMAL	Adjusts the sensitivity of the automatic light control system. *1	LIGHT 2 / LIGHT 1 / NORMAL / DARK 1 / DARK 2
Disp Ex ON Sen	NORMAL	Changes the ambient brightness level required to dim the clock display illumination. *1	LIGHT 2 / LIGHT 1 / NORMAL / DARK 1 / DARK 2
Disp Ex OFF Sen	NORMAL	Changes the ambient brightness level required to cancel the dimming of the clock display illumination.	LIGHT 2 / LIGHT 1 / NORMAL / DARK 1 / DARK 2
DRL Function	ON	ON / OFF of the DRL function	ON / OFF

HINT:

Sensitivity adjustment can hardly be confirmed. Check by driving the customer's vehicle.

Illustration *1

Ambient Brightness Level	Dark ↔ Bright
Setting	DARK2	DARK1	NORMAL	LIGHT1	LIGHT2

POWER DOOR LOCK CONTROL SYSTEM

CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT:

The following items can be customized.

NOTE:

Before attempting to customize vehicle settings, confirm whether it is possible to make the change that the customer has requested.
Be sure to record the current settings before customizing.
When troubleshooting, make sure that the item in question has not been disabled using the customizing function.

DOOR LOCK:

DOOR LOCK SPECIFICATION

Display (Item)	Default	Contents	Setting
UNLOCK/PARK (Unlock w/ engine switch on (IG), shift P, speed 0 km/h (0 mph))	A/T: ON M/T: OFF (Cannot be changed)	Function that unlocks doors when the shift lever is moved to the P position from any other position while the ignition switch is on (IG)	ON/OFF
ALL UNLK/OPN-CL (All unlock w/ D door open-close)	A/T: OFF M/T: ON	Function that unlocks all other doors when opening driver side door within 10 seconds after turning the ignition switch off from on (IG)	ON/OFF
UNLK/KEY TWICE (Unlock w/ 2 times D key operation)	ON	Function that unlocks only the driver side door when the driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice In the OFF setting, turning it once unlocks all doors	ON/OFF
AUTO LOCK/SHIFT (Auto lock/shift not P)	A/T: ON M/T: OFF (Cannot be changed)	Function that locks doors when the shift lever is moved from the P position to any other position	ON/OFF
AUTO LOCK	OFF	Function that locks doors when vehicle reaches a vehicle speed 20 km/h (13 mph)	ON/OFF

WIRELESS D LOCK:

WIRELESS D LOCK SPECIFICATION

Display (Item)	Default	Contents	Setting
AUTO LOCK DELAY	60s	Function that selects AUTO LOCK time (30 sec. or 60 sec.)	30s/60s

WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System)

HINT:

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that customization of the function(s) is possible.
Be sure to record the current settings before customizing.
When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the system, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).

WIRELESS DOOR LOCK CONTROL SYSTEM

WIRELESS DOOR LOCK CONTROL SYSTEM (W/ SMART KEY SYSTEM)

Display (Item)	Default	Function	Setting
TRUNK LID OPER (Wireless trunk opener function setting)	0.8 s PR ON	This function changes operation method of transmitter to open luggage compartment door. 1 TIME: Push 1 time 2 TIMES: Push 2 times 0.8 s PR: Push and hold 0.8 seconds OFF: Does not operate	1 TIME/2 TIMES/0.8 s PR/ OFF
WIRELESS OPER (Wireless door lock control function)	ON	Function that turns wireless door lock function ON/OFF	ON/OFF
HAZARD ANS BACK (Hazard answer-back for wireless door lock control)	ON	When the doors are locked by wireless operation, the hazard warning lights flash once. When the doors are unlocked by wireless operation, the hazard warning lights flash twice.	ON/OFF
OPEN DOOR WARN (Door ajar warning)	ON	The buzzer sounds when LOCK is pressed when any of the doors are ajar.	ON/OFF
Auto lock time	60 s	This function regulates the interval between unlocking and automatic relocking of doors.	30 s/60 s
UNLOCK 2 OPER (Wireless unlock operated twice)	ON	This function unlocks the driver's door when the UNLOCK switch is pressed once, and unlocks all doors when pressed twice within 3 seconds. If set to OFF, pressing UNLOCK once unlocks all doors.	ON/OFF
Panic function	ON	This function operates the theft deterrent system when PANIC is pressed and held for 0.8 seconds.	ON/OFF
WIRLS BUZZ RESP (Wireless buzzer answer-back)	ON	Wireless door lock buzzer response/ON or OFF	ON/OFF

WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System)

HINT:

The following items can be customized.

NOTE:

When the customer requests a change in a function, first make sure that customization of the function(s) is possible.
Be sure to record the current settings before customizing.
When troubleshooting, make sure that the item in question is not set to "OFF" as a result of customization (Example: For the system, "the wireless function does not operate", first check that the wireless function is not set to "OFF", then perform troubleshooting).

WIRELESS DOOR LOCK CONTROL SYSTEM:

WIRELESS DOOR LOCK CONTROL SYSTEM (W/O SMART KEY SYSTEM)

Display (Item)	Default	Function	Setting
TRUNK LID OPER (Wireless trunk opener function setting)	LONG1	This function changes operation method of transmitter to open luggage compartment door. 1 TIME: Push 1 time 2 TIMES: Push 2 times LONG1: Push and hold 0.6 seconds LONG2: Push and hold 0.8 seconds OFF: Does not operate	1 TIME/2 TIMES/LONG1/ LONG2/OFF
WIRELESS OPER (Wireless door lock control function)	ON	Function that turns wireless door lock function ON/OFF	ON/OFF
HAZARD ANS BACK (Hazard answer-back for wireless door lock control)	ON	When the doors are locked by wireless operation, the hazard warning lights flash once. When the doors are unlocked by wireless operation, the hazard warning lights flash twice.	ON/OFF
OPEN DOOR WARN (Door ajar warning)	ON	The buzzer sounds when LOCK is pressed when any of the doors are ajar.	ON/OFF
Auto lock time	60 s	This function regulates the interval between unlocking and automatic relocking of doors.	30 s/60 s
UNLOCK 2 OPER (Wireless unlock operated twice)	ON	This function unlocks the driver's door when the UNLOCK switch is pressed once, and unlocks all doors when pressed twice within 3 seconds. If set to OFF, pressing UNLOCK once unlocks all doors.	ON/OFF
Panic function	ON	This function operates the theft deterrent system when PANIC is pressed and held for 0.8 seconds.	ON/OFF
WIRLS BUZZ RESP (Wireless buzzer answer-back)	ON	Wireless door lock buzzer response/ON or OFF	ON/OFF

SMART KEY SYSTEM (Door Lock)

CUSTOMIZING FUNCTION WITH TECHSTREAM

HINT:

The items in the table below can be customized.

NOTE:

When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to make a note of the current setting before customizing.
When troubleshooting a function, first make sure that the function is set to the default setting.

HINT:

The following functions' default settings are ON. Part of these functions can be customized.

SMART KEY:

SMART KEY SYSTEM (DOOR LOCK)

Display (Item)	Default	Contents	Setting
Park Wait Time (Wait time to permit opening door after locking)	2.5s	Function that sets waiting time to permit opening door after door is locked with entry lock function.	0.5s / 1.5s / 2.5s / 5.0s
Ignition Available Area (SMART ignition available area)	ALL	Function to choose the available area for electrical key to start E/G and cancel the steering lock.	FRONT / ALL
Trunk Open Mode (Luggage compartment opening operation)	ON	Function to open a luggage compartment when the driver has the electrical key and presses the luggage open button.	ON / OFF

WIRELESS DOOR LOCK:

WIRELESS DOOR LOCK DISPLAY REFERENCE CHART

Display (Item)	Default	Contents	Setting
ALARM FUNCTION (Panic function)	ON	Function to operate the theft deterrent system by keeping pressing the lock button of the transmitter for 2.5 seconds. If there is a panic button, press the panic button instead of the lock button.	ON / OFF

WARNING:

WARNING INFORMATION CHART

Display (Item)	Default	Contents	Setting
KEY LOW-BATT WRN	ON	Function to set a warning function for the time when a key battery becomes weak.	ON / OFF

Entry Unlock Mode Switching Function
1. To change the vehicle to entry unlock mode switching function, make sure the vehicle power is off and simultaneously press and hold the electrical key's LOCK switch and another electrical key switch for 4.5 seconds.
  When the switches are pressed and held for 4.5seconds, the entry door unlock mode changes in the following order: driver door mode, all door mode.
  NOTE:
  After pressing and holding the switches for 4.5 seconds, wait 5 seconds before performing the same procedure again.
  - Driver door unlock mode:
    When the driver door's touch sensor is touched, only the driver door unlocks. When another touch sensor is touched, all doors unlock.
  - All door unlock mode:
  When the touch sensor is touched, all doors unlock.
2. The certification ECU receives this signal from the entry door control receiver and changes the smart key system to the entry unlock mode.
3. The certification ECU sounds the buzzers of the wireless door lock buzzer and combination meter to inform the user that the mode has been switched.

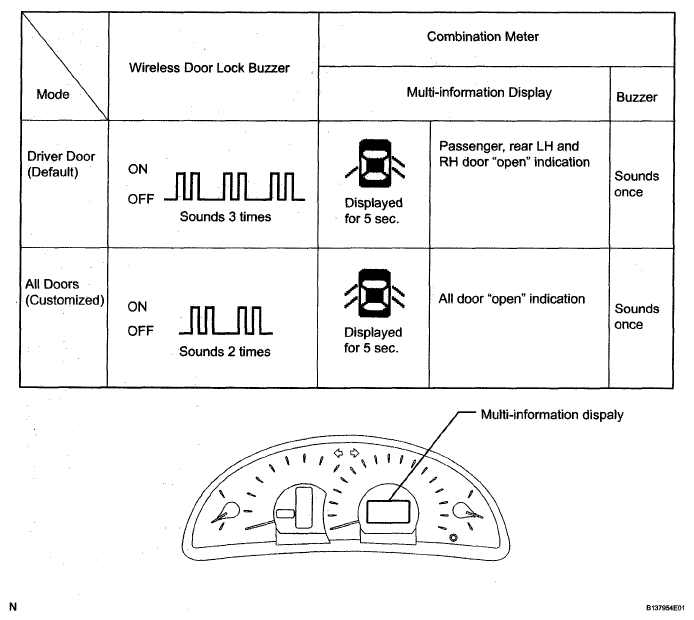

Fig 1: Identifying Multi-Information Display Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The function only changes the entry unlock mode of the smart key system. It does not switch the unlocking of the wireless door lock control.
Electrical Key Cancel
The electrical key cancel operation disables the following functions:
- Entry Ignition
- Entry Unlock/Lock
- Entry Luggage Compartment Open
- Electrical Key Lock-in Prevention
- Warning
- Memory Call
  1. The operation procedures are as follows:
  Precondition:

  Engine switch off, driver side door closed and unlocked.
  1. Unlock the driver side door once with the UNLOCK switch of the electrical key.
  2. Open the driver door within 5 seconds.
  3. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
  4. Repeat open → close twice for the driver door within 30 seconds, and open again.
    (Driver door: Open → Close → Open → Close → Open)
  5. Unlock the driver side door twice with the UNLOCK switch of the electrical key within 5 seconds.
  6. Repeat open → close once for the driver door within 30 seconds, and open again.
    (Driver door: Open → Close → Open)
  7. Close the driver door within 5 seconds.
  When electrical key cancel is activated, the wireless door lock buzzer sounds twice.

  To return to the original condition, perform the procedures again. When the original condition is returned, the wireless door lock buzzer sounds once.

KEY REMINDER WARNING SYSTEM

PARAMETERS (USING TECHSTREAM)

HINT:

The following items can be customized.

NOTE:

Be sure to record current values before customizing.
When performing troubleshooting, be aware that the functions may be set to OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not set to OFF by customizing, then perform the troubleshooting.)

METER:

METER DISPLAY REFERENCE CHART

Display (Item)	Default	Contents	Setting
KEY REMND VOLUM	LARGE	Function to change volume of the key reminder warning buzzer.	LARGE/MEDIUM/SMALL
KEY REMND SOUND	NORMAL	Function to change cycle of the key reminder warning buzzer.	FAST/NORMAL/SLOW

METER/GAUGE SYSTEM

COMBINATION METER ASSEMBLY

NOTE: Be sure to record the current value before customizing.

HINT:

The following items can be customized using Techstream.

COMBINATION METER:

METER DISPLAY REFERENCE CHART

Display (Item)	Default	Contents	Setting
KEY REMND VOLUME	LARGE	Function to change the volume of the key remind warning buzzer	LARGE, MEDIUM, SMALL
KEY REMND SOUND	NORMAL	Function to change the cycle of the key remind warning buzzer	FAST, NORMAL, SLOW
SEAT-BELT WARNING BUZZER (*)	ON	Function to change the setting of the seat belt buzzer.	On / Off
*: This setting is only valid for the buzzer which sounds at the 20 km/h (12 mph) or more.
