Inspection Procedure

HINT:

Read freeze frame data using a Techstream. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. CHECK OPERATION OF SPEEDOMETER
   1. Drive the vehicle and check if the operation of the speedometer in the combination meter is normal.

      HINT:

      • The vehicle speed sensor is operating normally if the speedometer reading is normal.
      • If the speedometer does not operate, check it by following the procedure described in Speedometer Malfunction (See SPEEDOMETER MALFUNCTION ).

   NG:GO TO MALFUNCTION IN SPEEDOMETER

   OK: Go to Next Step

2. INSPECT ECM (SPD VOLTAGE)

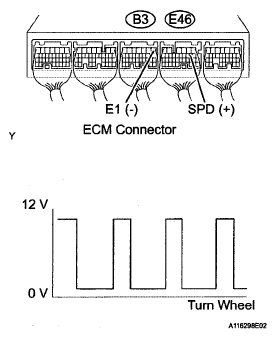

   Fig 1: Identifying ECM Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Shift the transmission gear selector lever to the neutral position.
   2. Jack up the vehicle.
   3. Turn the ignition switch ON.
   4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      TESTER CONNECTIONS SPECIFIED CONDITIONS CHART



      Tester Connections	Specified Conditions
      SPD (E46-8) - E1 (B3-1)	Voltage generated intermittently

      HINT:

      The output voltage should fluctuate up and down similarly to the diagram when the wheel is turned slowly.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ECM  (See REMOVAL  )
