Inspection Procedure

HINT:

Read freeze frame data using a Techstream. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. CHECK FUSE (ETCS FUSE)
   1. Remove the ETCS fuse from the engine room relay block.
   Fig 1: Identifying ETCS Fuse From Engine Room Relay Block
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Check the ETCS fuse resistance.

      Standard Resistance: Below 1 Ω

   3. Reinstall the ETCS fuse.

   NG: CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

   OK: Go to Next Step

2. INSPECT ECM (+BM VOLTAGE)
   1. Measure the voltage between the terminals of the B2 and E47 ECM connectors.

      Standard Voltage

      TESTER CONNECTIONS SPECIFIED CONDITIONS CHART



      Tester Connections	Specified Conditions
      +BM (E47-7) - ME0 1 (B2-3)	11 to 14 V

      Fig 2: Identifying ECM Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: CHECK FOR INTERMITTENT PROBLEMS

   NG: Go to Next Step

3. CHECK HARNESS AND CONNECTOR (ECM - ETCS FUSE, ETCS FUSE - BATTERY)
   1. Check the harness and connector between the ETCS fuse and ECM.
      1. Remove the ETCS fuse from the engine room relay block.

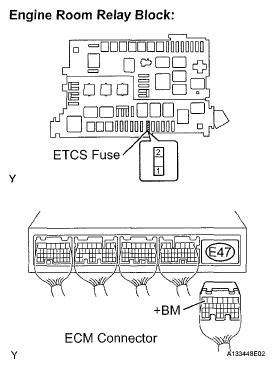

      Fig 3: Identifying ETCS Fuse And ECM Connector
      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect the E47 ECM connector.
      3. Measure the resistance according to the value(s) in the table below.

         Standard Resistance (Check for open)

         TESTER CONNECTIONS SPECIFIED CONDITIONS CHART



         Tester Connections	Specified Conditions
         ETCS fuse (2) - +BM (E47-7)	Below 1 Ω

         Standard Resistance (Check for short)

         TESTER CONNECTIONS SPECIFIED CONDITIONS CHART



         Tester Connections	Specified Conditions
         ETCS fuse (2) or +BM (E47-7) - Body ground	10 kΩ or higher

      4. Reinstall the ETCS fuse.
      5. Reconnect the ECM connector.
   2. Check the harness and connector between the ETCS fuse and positive battery cable.
      1. Remove the ETCS fuse from the engine room relay block.
      2. Disconnect the negative battery cable.
      3. Disconnect the positive battery cable.
      4. Measure the resistance according to the value(s) in the table below.

         Standard Resistance (Check for open)

         TESTER CONNECTIONS SPECIFIED CONDITIONS CHART



         Tester Connections	Specified Conditions
         Positive battery cable - ETCS fuse (1)	Below 1 Ω

         Standard Resistance (Check for short)

         TESTER CONNECTIONS SPECIFIED CONDITIONS CHART



         Tester Connections	Specified Conditions
         Positive battery cable or ETCS fuse (1) - Body ground	10 kΩ or higher

      5. Reinstall the ETCS fuse.
      6. Reconnect the positive battery cable.
      7. Reconnect the negative battery cable.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ECM  (See REMOVAL  )
