System Diagram

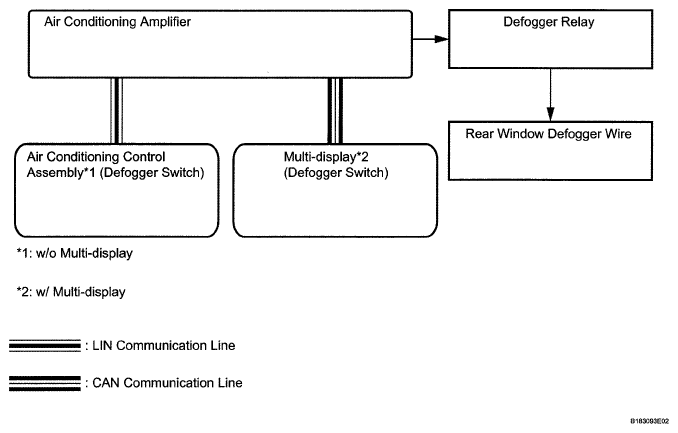

Fig 1: Air Conditioning Amplifier Communication Diagram
G05636444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

COMMUNICATION REFERENCE

Transmitter Receiver Signal Line
Air conditioning control assembly*1 Air conditioning amplifier Rear window defogger switch signal LIN
Multi-display*2 Air conditioning amplifier Rear window defogger switch signal CAN
HINT:
*1: w/o Multi-display
*2: w/Multi-display
