Terminals Of Ecu

  1. CHECK AIR CONDITIONING AMPLIFIER
    Fig 1: Identifying E36 Air Conditioning Amplifier Connector Terminal
    G05636433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E36 air conditioning amplifier connector.
    2. Measure the resistance and voltage according to the value(s) in the table below.
      RESISTANCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E36-5 (IG+) - E36-1 (GND) G - W-B Ignition power supply Engine switch on (IG) 11 to 14 V
      Engine switch off Below 1 V
      E36-6 (+B1) - E36-1 (GND) R - W-B Battery power source Always 11 to 14 V
      E36-7 (+B2) - E36-1 (GND) R-W-B Battery power source Always 11 to 14 V
      E36-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the E36 air conditioning amplifier connector.
    4. Measure the voltage according to the value(s) in the table below.
      VOLTAGE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      E36-24 (RDEF) - E36-1 (GND) G - W-B Defogger relay Engine switch on (IG) and defogger switch off 11 to 14 V
      Engine switch on (IG) and defogger switch on Below 1 V

      If the result is not as specified, the air conditioning amplifier or fuse may have a malfunction.

  2. CHECK AIR CONDITIONING CONTROL ASSEMBLY (w/o Multi-display)

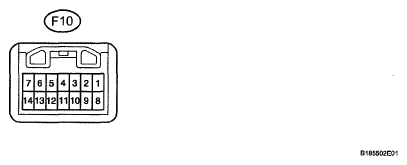

    Fig 2: Identifying F10 Air Conditioning Control Assembly Connector
    G05636434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F10 air conditioning control assembly connector.
    2. Measure the resistance and voltage according to the value(s) in the table below.
      RESISTANCE AND VOLTAGE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F10-7 (IG+) - F10-1 (GND) G - W-B Ignition power supply Engine switch on (IG) 11 to 14 V
      Engine switch off Below 1 V
      F10-1 (GND)-Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.

  3. CHECK MULTI-DISPLAY
    Fig 3: Identifying F28 Multi-Display Connector Terminal
    G05636435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F28 multi-display connector.
    2. Measure the resistance and voltage according to the value(s) in the table below.
      RESISTANCE AND VOLTAGE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F28-3 (IG) - F28-10 (GND1) G-W-B Ignition power supply Engine switch on (IG) 11 to 14 V
      Engine switch off Below 1 V
      F28-10 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω

      If the result is not as specified, there may be a malfunction on the wire harness side.
