Inspection Procedure

  1. CHECK FOR DTC
    1. Check for DTC.

      Result

      DTC RESULT REFERENCE

      Result Proceed To
      DTC is not output A
      LIN DTC is output B
      CAN DTC is output C

    B: GO TO LIN COMMUNICATION SYSTEM  (See DIAGNOSTIC TROUBLE CODE CHART )

    C: GO TO CAN COMMUNICATION SYSTEM  (See DIAGNOSTIC TROUBLE CODE CHART )

    A: Go to Next Step

  2. PERFORM ACTIVE TEST USING TECHSTREAM (DEICER RELAY)
    1. Select the Active Test using the Techstream to generate a control command, and then check that the windshield deicer operates.

      Air Conditioner

      AIR CONDITIONER VOLTAGE SPECIFICATION

      Tester Display Test Part Control Range
      Deicer Relay (Front) Deicer relay operation OFF or ON

      Result

      DTC RESULT REFERENCE

      Result Proceed To
      Windshield deicer operates normally (w/o Multi-display) A
      Windshield deicer operates normally (w/Multi-display) B
      Windshield deicer does not operate C

    B:  Go to step  5

    C:  Go to step  7

    A: Go to Next Step

  3. REPLACE AIR CONDITIONING CONTROL ASSEMBLY
    1. Temporarily replace the air conditioning control assembly with a new or normally functioning one (See REMOVAL ).
  4. CHECK WINDSHIELD DEICER SYSTEM
    1. Turn the engine switch on (IG).
    2. Check that pressing the windshield deicer switch illuminates the indicator and warms the front windshield surface.
    3. Check that after approximately 15 minutes, the indicator light turns off and the windshield deicer deactivates.

      OK: Windshield deicer system functioning normally.

    NG: REPLACE AIR CONDITIONING AMPLIFIER  (See REMOVAL )

    OK: END (AIR CONDITIONING CONTROL ASSEMBLY IS DEFECTIVE)

  5. REPLACE MULTI-DISPLAY
    1. Temporarily replace the multi-display with a new or normally functioning one (See REMOVAL ).
  6. CHECK WINDSHIELD DEICER SYSTEM
    1. Turn the engine switch on (IG).
    2. Check that pressing the windshield deicer switch illuminates the indicator and warms the front windshield surface.
    3. Check that after approximately 15 minutes, the indicator light turns off and the windshield deicer deactivates.

      OK: Windshield deicer system functioning normally.

    NG: REPLACE AIR CONDITIONING AMPLIFIER  (See REMOVAL )

    OK: END (MULTI-DISPLAY IS DEFECTIVE)

  7. INSPECT FUSE (DEICER)
    1. Remove the DEICER fuse from the engine room junction block.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      DEICER fuse Always Below 1 Ω

    NG: REPLACE FUSE

    OK: Go to Next Step

  8. INSPECT DEICER RELAY
    1. Remove the deicer relay from the engine room relay block.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      3-5 Battery voltage is not applied to terminals 1 and 2 10 kΩ or higher
      Battery voltage is applied to terminals 1 and 2 Below 1 Ω
      Fig 1: Identifying Deicer Relay Of Engine Room Relay Block
      G05636437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE DEICER RELAY

    OK: Go to Next Step

  9. CHECK HARNESS AND CONNECTOR (DEICER RELAY - AIR CONDITIONING AMPLIFIER AND BATTERY)
    1. Remove the deicer relay from the engine room relay block.
    2. Disconnect the E36 air conditioning amplifier connector.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      RESISTANCE AND VOLTAGE CHART

      Tester Connection Condition Specified Condition
      Deicer relay terminal 2 -Body ground Engine switch on (IG) 11 to 14 V
      Deicer relay terminal S - Body ground Always 11 to 14 V
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      Deicer relay terminal 1 - E36-23 (FDEF) Always Below 1 Ω
      Deicer relay terminal 1 - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

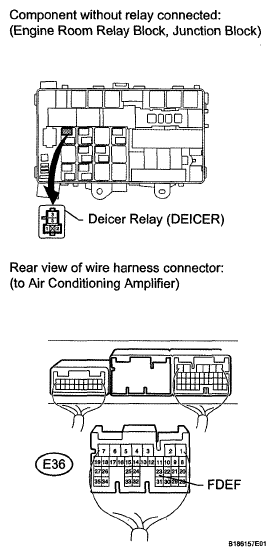

    Fig 2: Identifying E36 Air Conditioning Amplifier Connector Terminal
    G05636438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  10. CHECK HARNESS AND CONNECTOR (DEICER RELAY - WINDSHIELD DEICER WIRE)
    1. Remove the deicer relay from the engine room relay block.
    2. Disconnect the A23 windshield deicer wire connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      A23-1 (B) - Deicer relay terminal 3 Always Below 1 Ω
      Deicer relay terminal 3 -Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

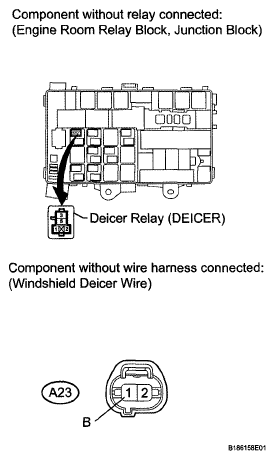

    Fig 3: Identifying A23 Windshield Deicer Wire Connector Terminal
    G05636439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  11. CHECK HARNESS AND CONNECTOR (WINDSHIELD DEICER WIRE - BODY GROUND)
    1. Disconnect the A23 windshield deicer wire connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      RESISTANCE REFERENCE

      Tester Connection Condition Specified Condition
      A23-2 (E) - Body ground Always Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    Fig 4: Identifying A23 Windshield Deicer Wire Connector
    G05636440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: Go to Next Step

  12. CHECK WINDSHIELD DEICER WIRE
    1. Disconnect the A23 windshield deicer wire connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      VOLTAGE CHART

      Tester Connection Condition Specified Condition
      A23-1 (B) - A23-2(E) Engine switch on (IG) and deicer switch on 11 to 14 V

    NG: REPLACE AIR CONDITIONING AMPLIFIER  (See REMOVAL )

    Fig 5: Identifying A23 Windshield Deicer Wire Connector Terminal
    G05636441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE WINDSHIELD GLASS  (See REMOVAL  )
