Crawl Switch: Inspection

INSPECT CRAWL SWITCH

Measure the resistance according to the value(s) in the table below.

Standard Resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Switch Condition	Specified Condition
3 (ECU1) - 20 (E)	Speed selector: MID	10 kΩ or higher
	Speed selector: HI	10 kΩ or higher
	Speed selector: LO	Below 1 Ω
4 (ECU2) - 20 (E)	Speed selector: MID	10 kΩ or higher
	Speed selector: HI	Below 1 Ω
	Speed selector: LO	Below 1 Ω
2 (HSW) - 20 (E)	ON/OFF: Pressed	Below 1 Ω
2 (HSW) - 20 (E)	ON/OFF: Not pressed	10 kΩ or higher

If the result is not as specified, replace the suspension control switch (CRAWL switch).

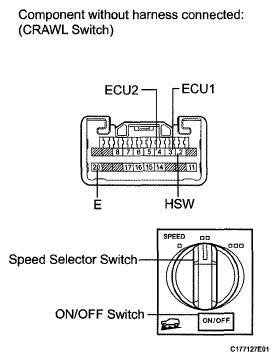

Fig 1: Identifying Crawl Switch Connector
