Rear Speed Sensor: Components

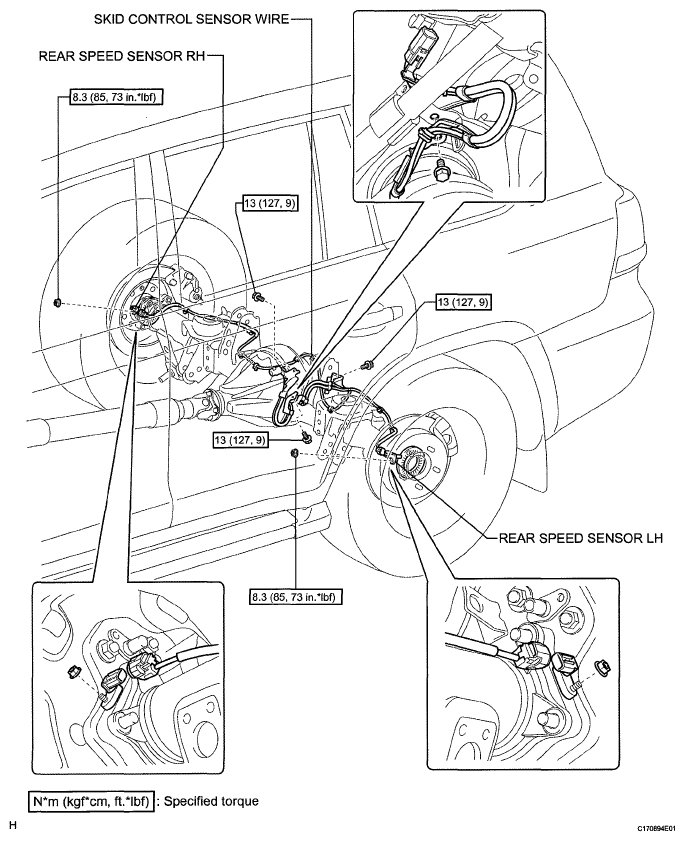

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
G05629963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
