Skid Control Buzzer: Components

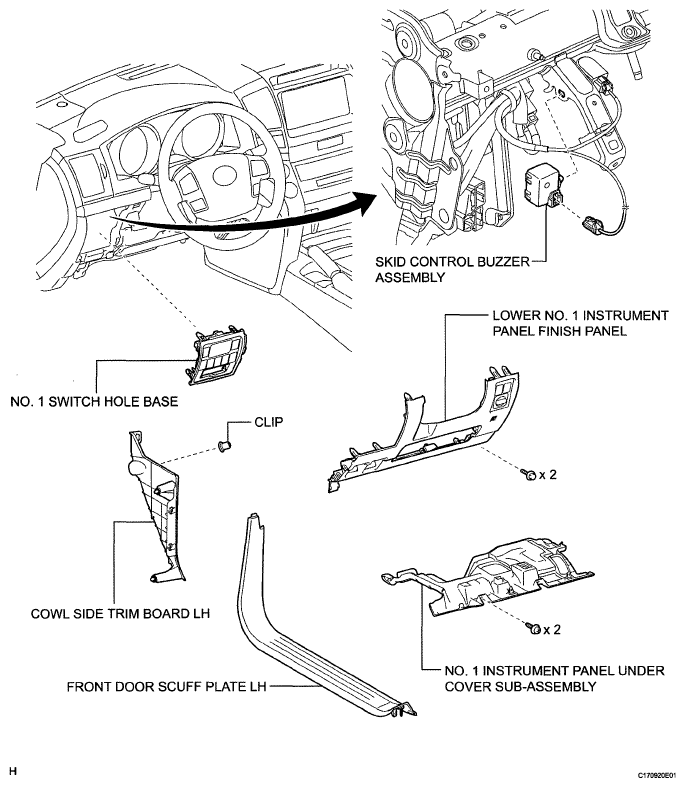

Fig 1: Identifying Skid Control Buzzer Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
