DTC C1253/53 Pump Motor Relay Malfunction: Wiring Diagram

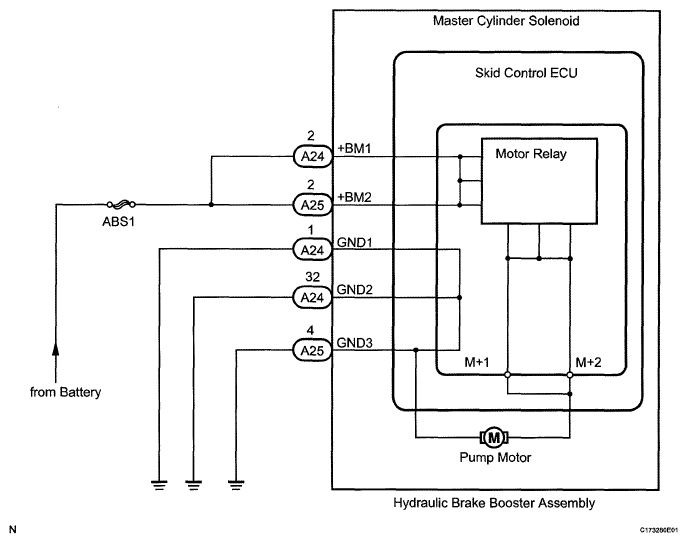

Fig 1: Pump Motor Relay Malfunction - Wiring Diagram
G05629895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
