Fuel Tank: Components

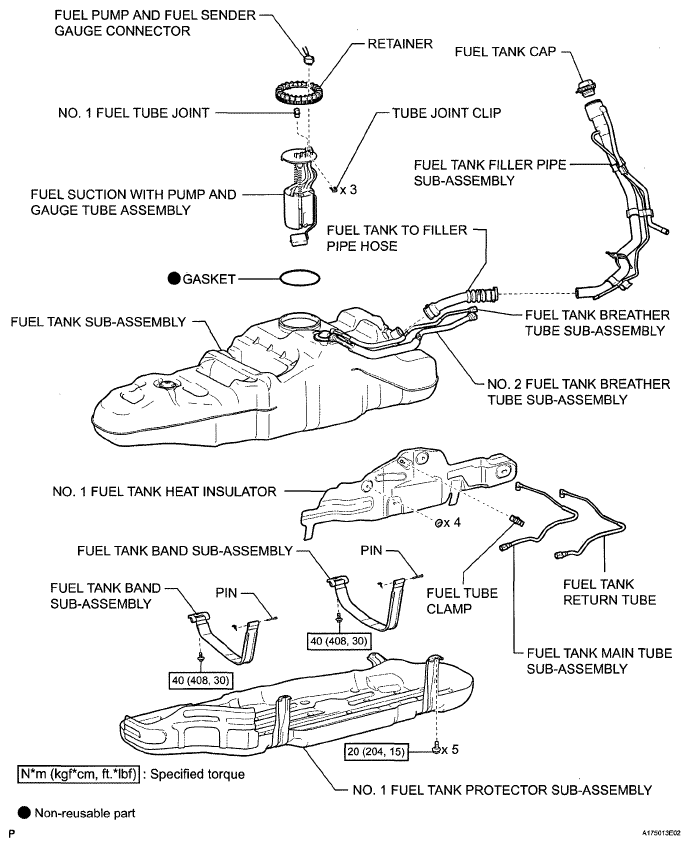

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Fuel Tank Replacement Components With Torque Specifications (4 Of 6)

Fig 5: Identifying Fuel Tank Replacement Components With Torque Specifications (5 Of 6)

Fig 6: Identifying Fuel Tank Replacement Components With Torque Specifications (6 Of 6)
