Back Door Glass: Removal

REMOVE BACK DOOR PANEL SUB-ASSEMBLY UPPER OUTER
1. Remove the center stop light.
2. Using a Torx wrench (T30), remove the 4 screws.
3. Remove the 4 nuts.

  Fig 1: Identifying Back Door Panel Sub-Assembly Upper Outer Screws And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the hose.

  Fig 2: Removing Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a knife, cut off the adhesive tape as shown in the illustration.
  NOTE: Do not damage the back door glass with the knife.
6. Remove the back door panel upper outer, and then disconnect the clamp.

  Fig 3: Cutting Off Adhesive Tape
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR WIPER ARM ASSEMBLY (See REMOVAL )
REMOVE REAR WIPER LINK CAP
REMOVE W/WASHER PACKING NUT REAR WIPER LINK PIVOT
REMOVE RR WIPER MOTOR COVER
REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY (See INSPECTION )
REMOVE BACK DOOR GLASS
1. Using a screwdriver, remove the back door stay from the back door panel.
  HINT:

  While supporting the back door by hand, remove the back door stay.

  Fig 4: Removing Back Door Stay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

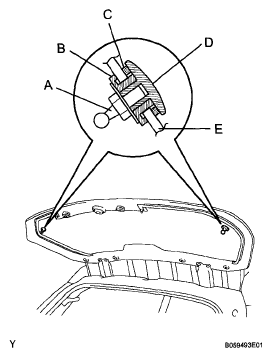

2. Remove the back door stay bolt No. 1, back door stay retainer and back door stay packing No. 2 from the back door glass.
  HINT:
  1. Back door stay bolt No. 1
  2. Back door stay packing No. 2
  3. Back door stay packing No. 1
  4. Back door stay retainer
  5. Back door glass

    Fig 5: Identifying Back Door Stay Components And Back Door Glass
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 nuts and back door glass.
REMOVE BACK DOOR HINGE ASSEMBLY RH
1. Remove the 2 nuts, window glass spacer No. 1, back door hinge male pad and back door glass from the back door hinge assembly RH.
REMOVE BACK DOOR HINGE ASSEMBLY LH

Fig 6: Removing Back Door Glass Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
