Parts Location

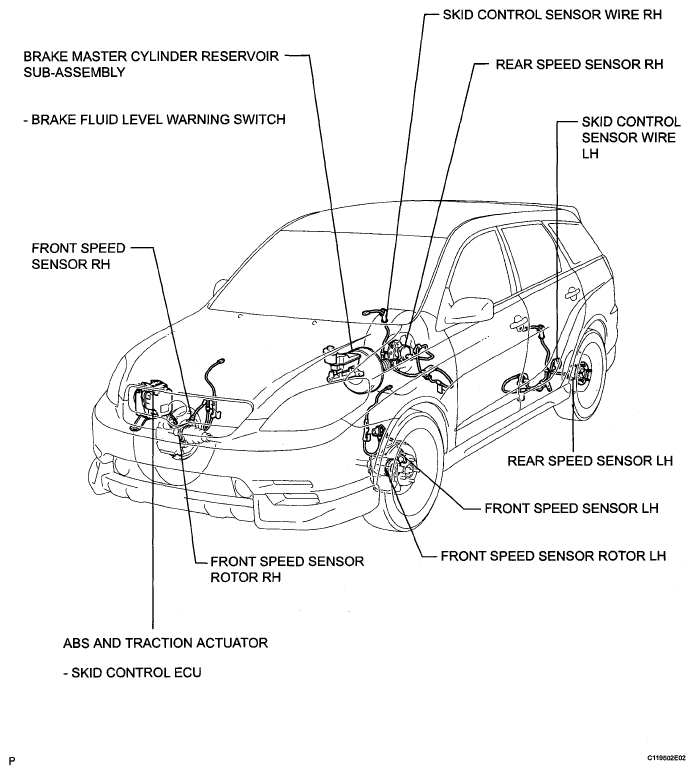

Fig 1: Identifying Vehicle Stability Control System Components Location (1 Of 2)
G05235192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

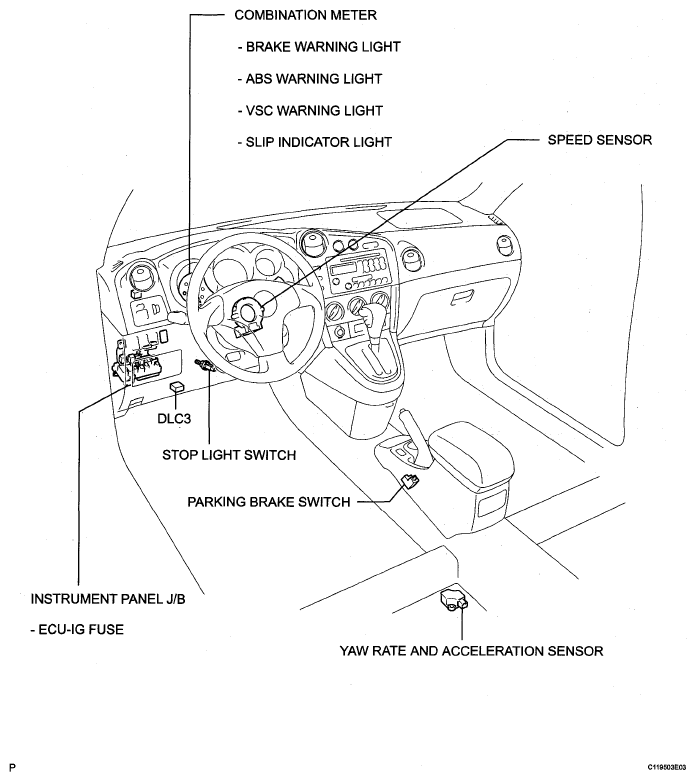

Fig 2: Identifying Vehicle Stability Control System Components Location (2 Of 2)
G05235193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
