Combination Meter: Notes

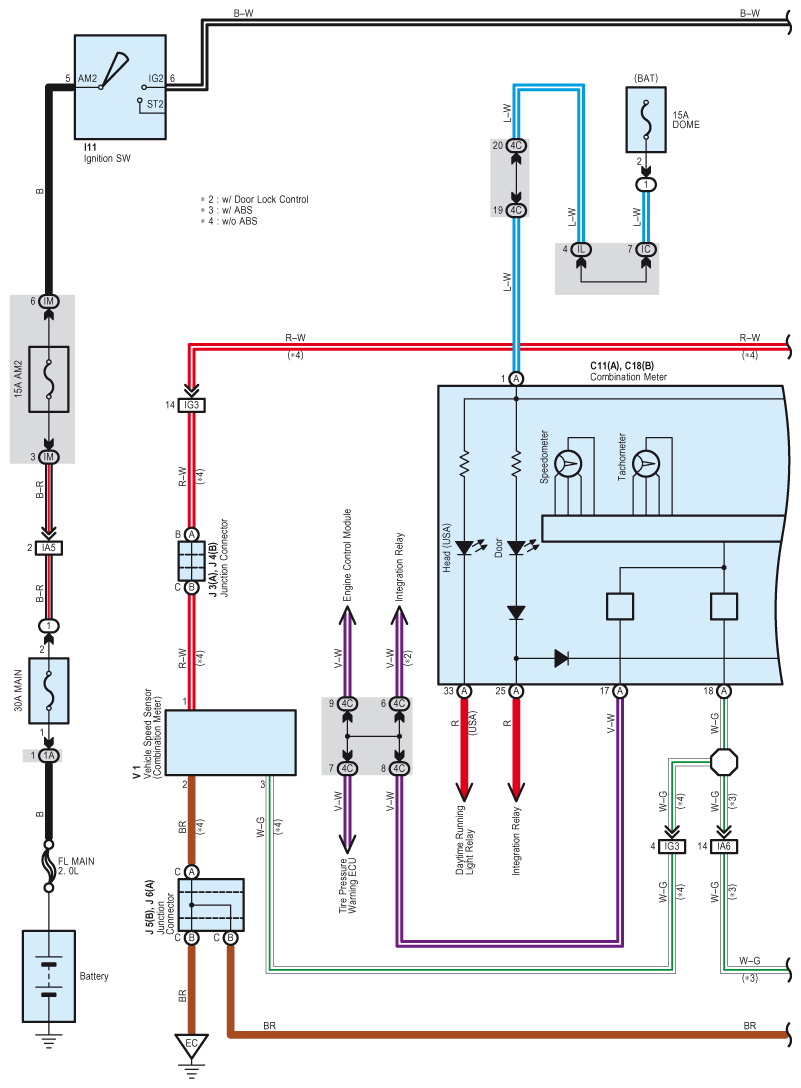

Fig 1: Combination Meter - Circuit Diagram (1 Of 5)
G07599226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

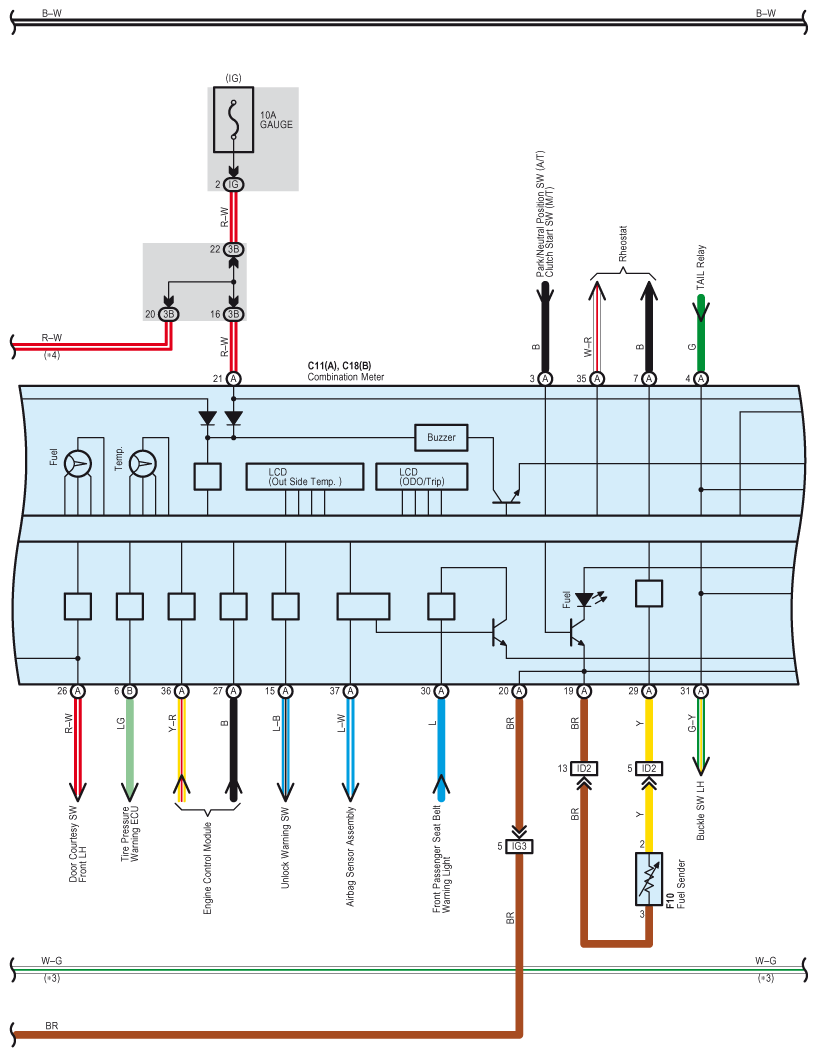

Fig 2: Combination Meter - Circuit Diagram (2 Of 5)
G07599227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

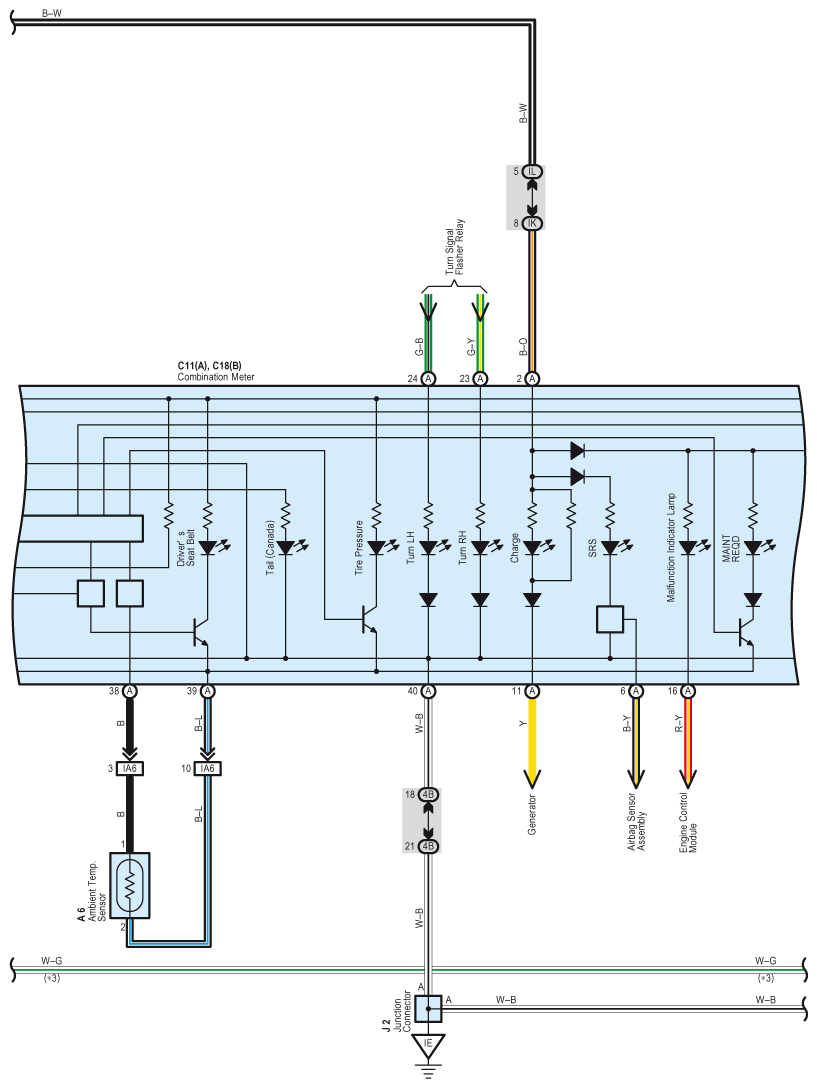

Fig 3: Combination Meter - Circuit Diagram (3 Of 5)
G07599228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

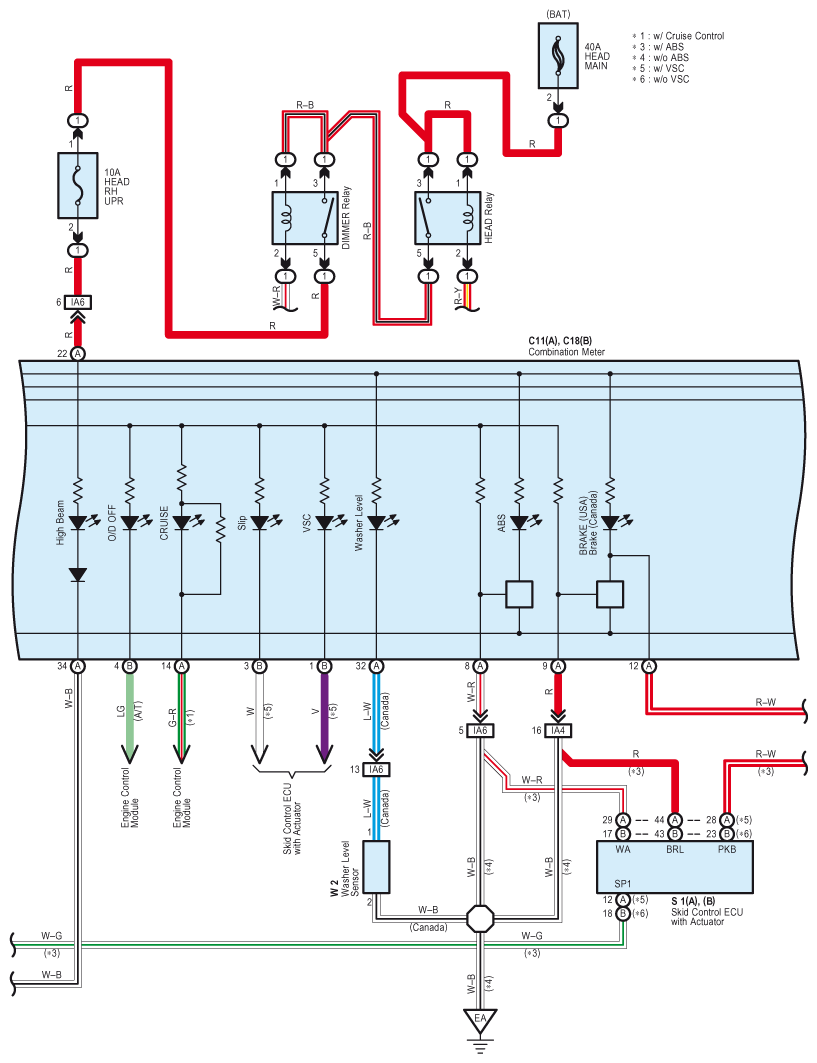

Fig 4: Combination Meter - Circuit Diagram (4 Of 5)
G07599229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

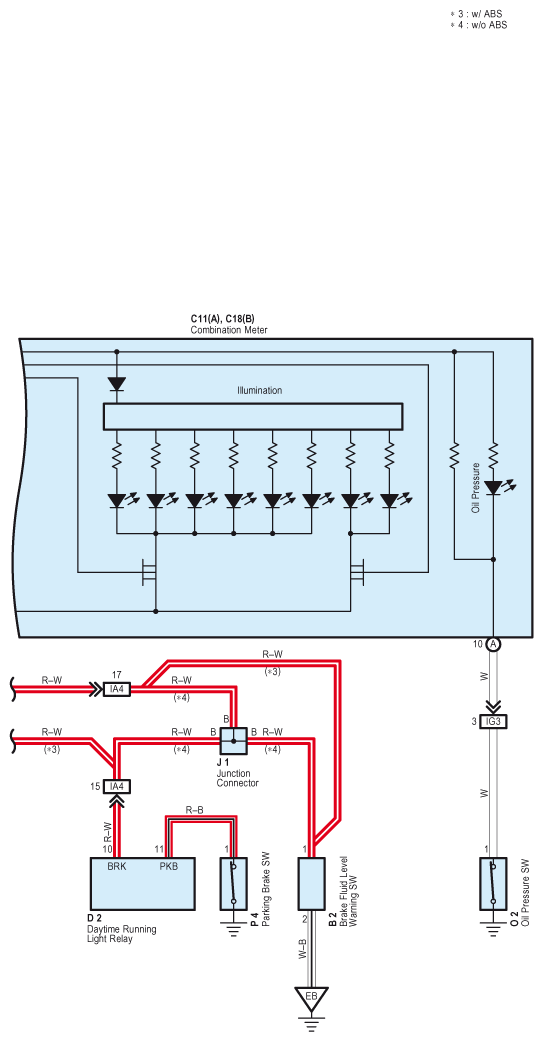

Fig 5: Combination Meter - Circuit Diagram (5 Of 5)
G07599230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
