Front Fog Light System: Notes

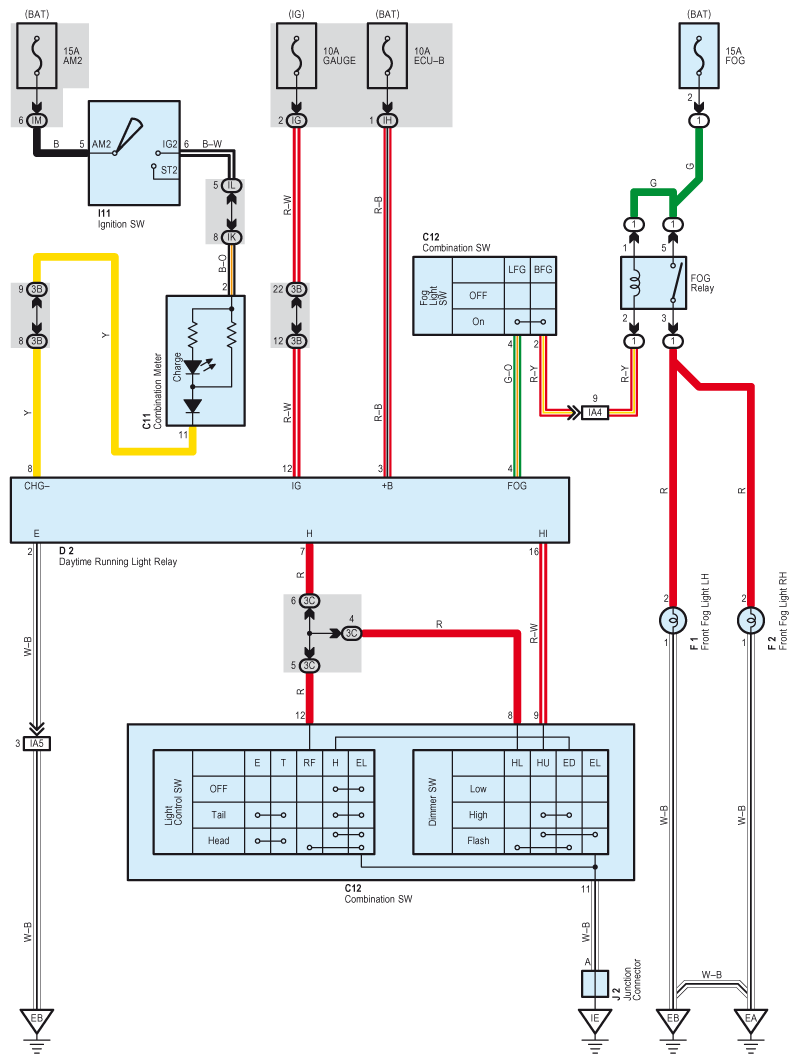

Fig 1: Front Fog Light - Circuit Diagram

G07599159

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
