Heater System: Notes

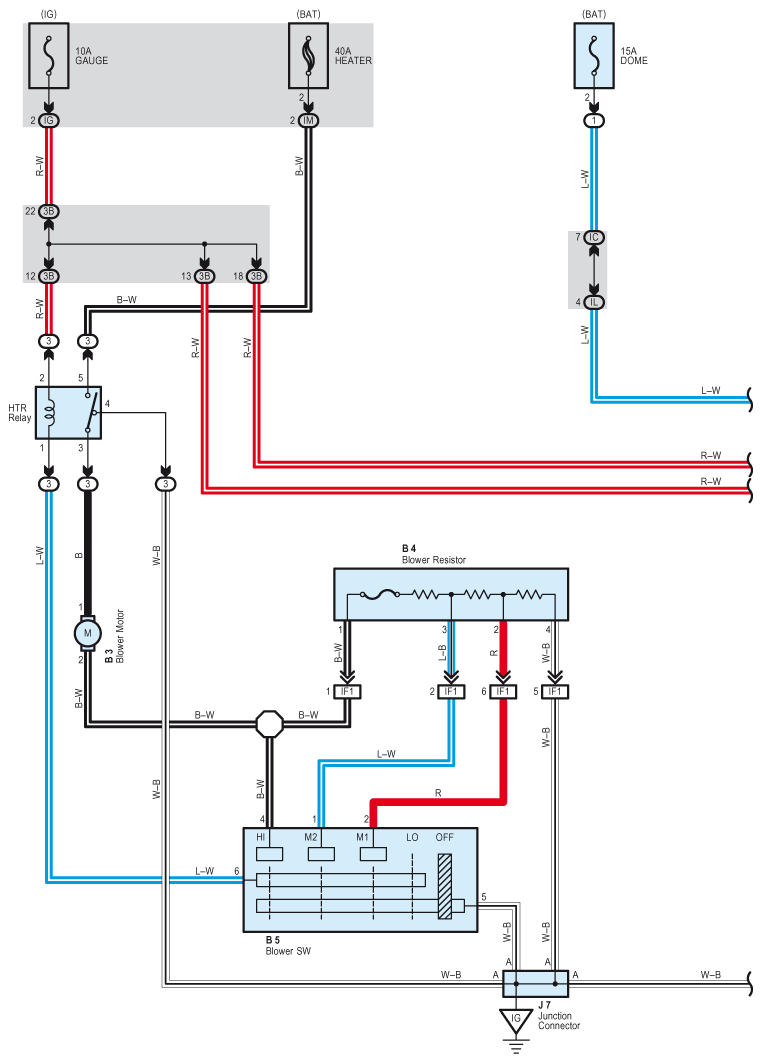

Fig 1: Heater - Circuit Diagram (1 Of 2)
G07599232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Heater - Circuit Diagram (2 Of 2)
G07599233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
