Moon Roof System: Notes

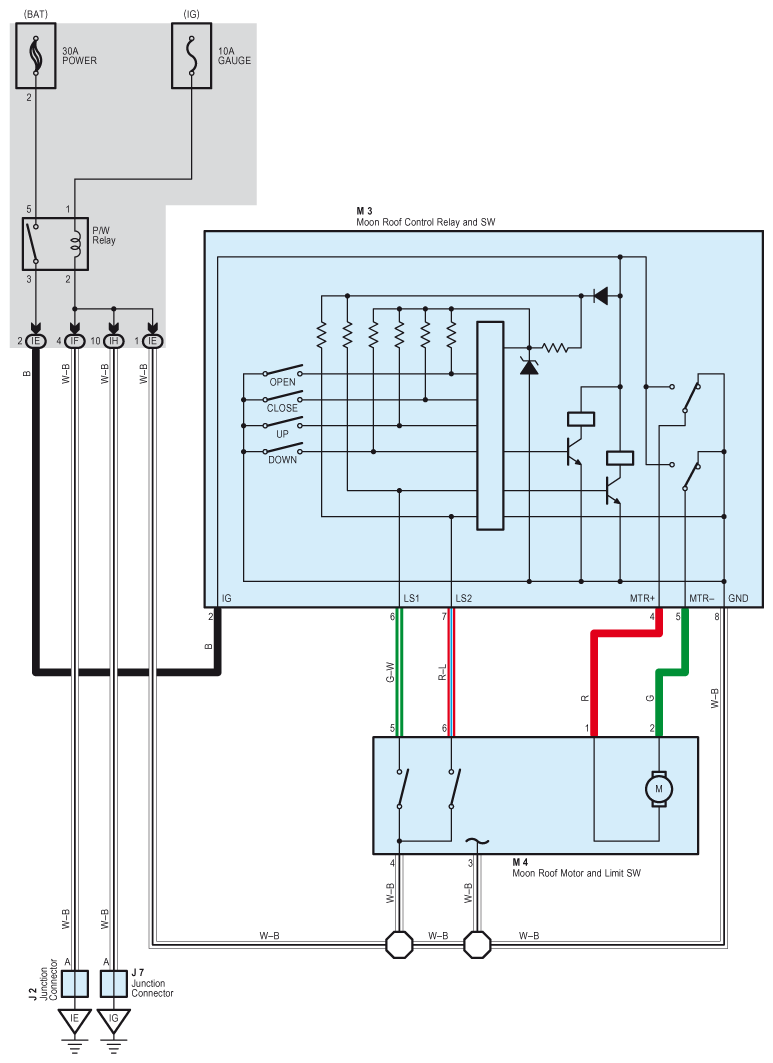

Fig 1: Moon Roof - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
