Radiator Fan System
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Radiator Fan System: Notes

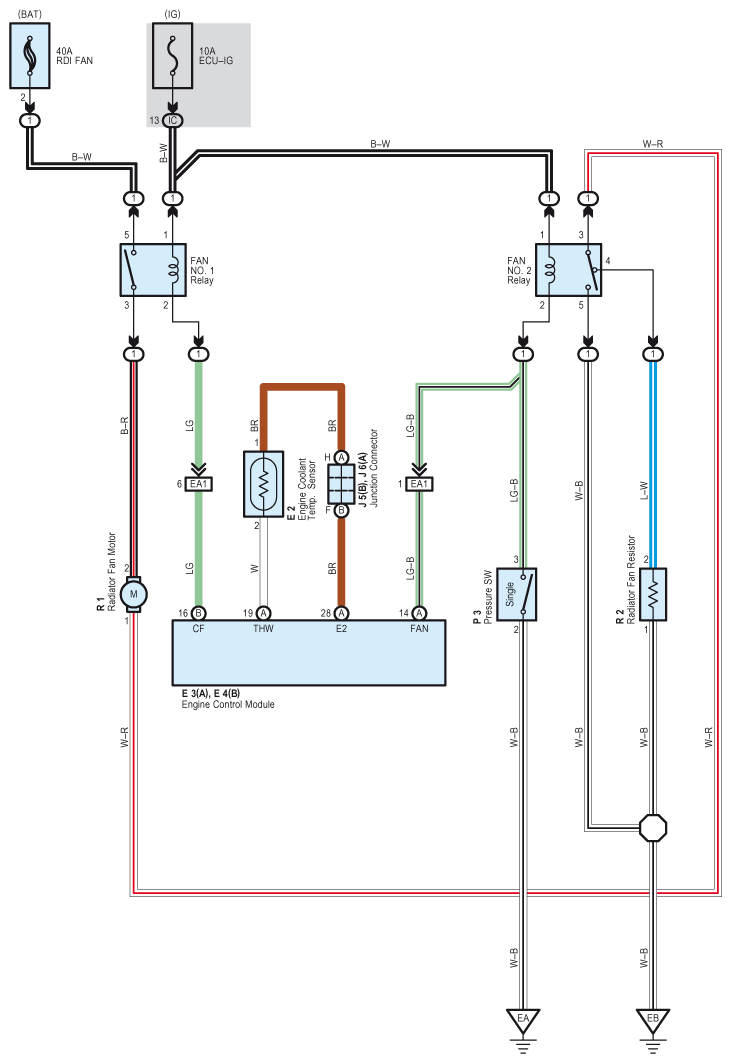

Fig 1: Radiator Fan - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
