Rear Wiper and Washer System: Notes

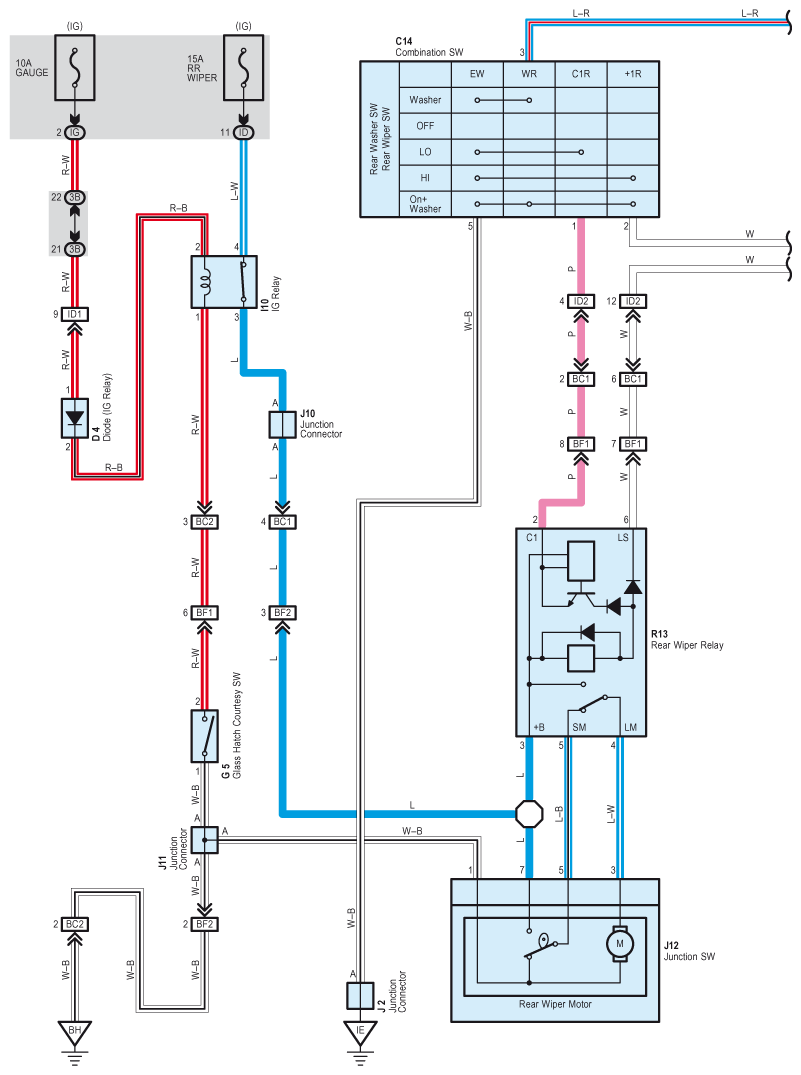

Fig 1: Rear Wiper And Washer - Circuit Diagram (1 Of 2)
G07599171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

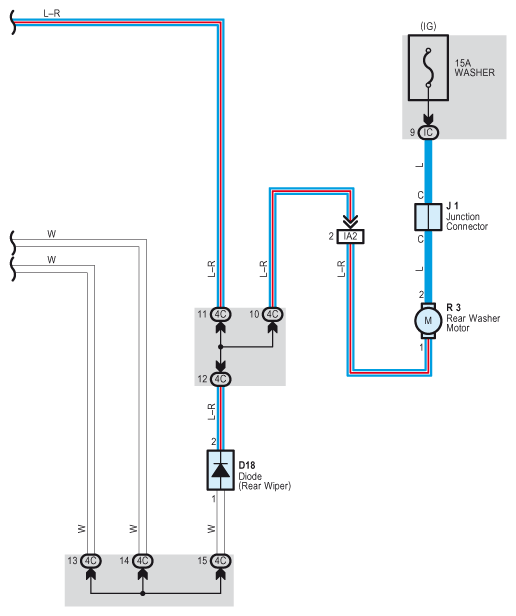

Fig 2: Rear Wiper And Washer - Circuit Diagram (2 Of 2)
G07599172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
