Remote Control Mirror System: Notes

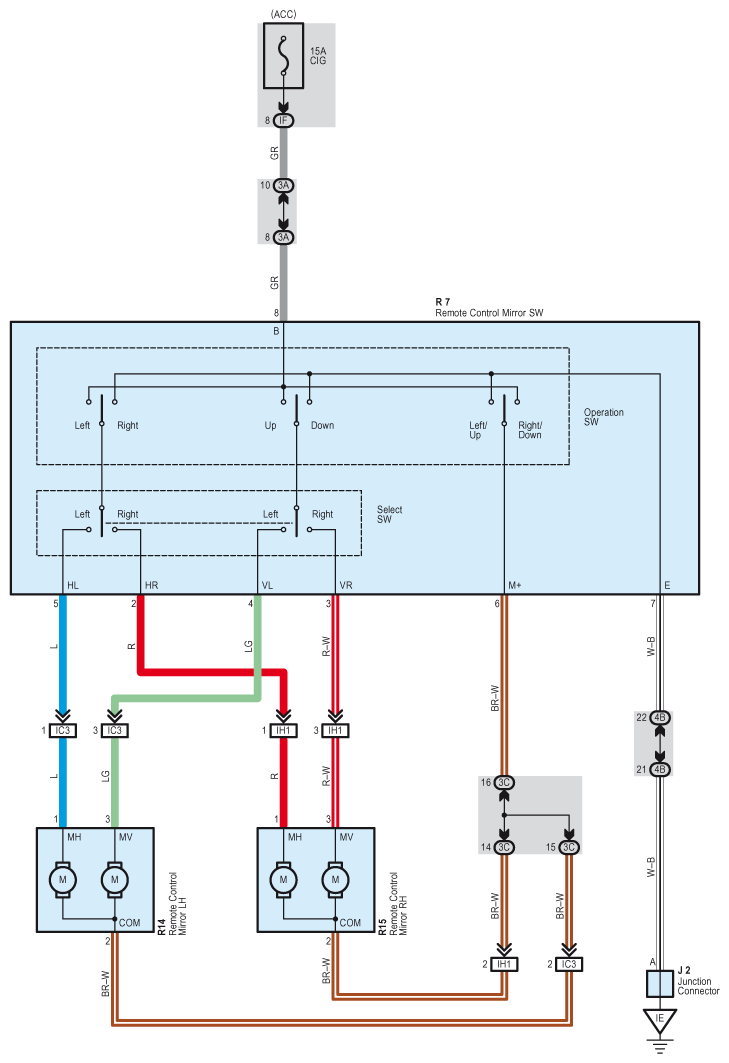

Fig 1: Remote Control Mirror - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
