Wireless Door Lock Control System: Notes

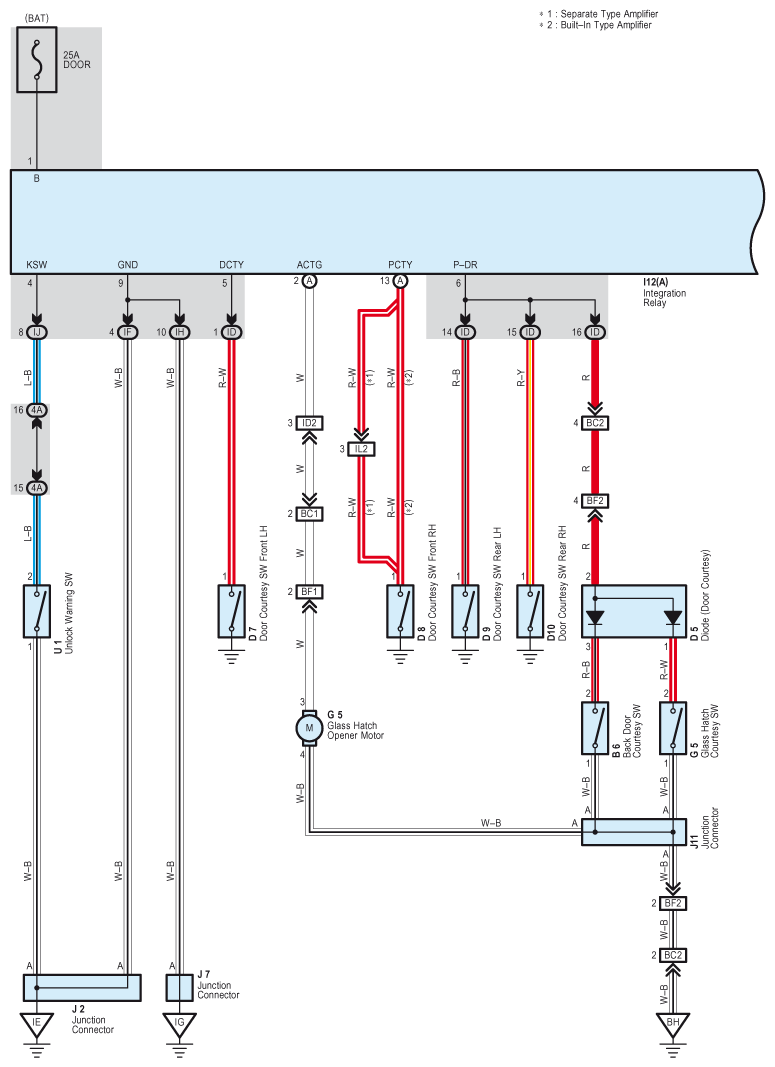

Fig 1: Wireless Door Lock Control - Circuit Diagram (1 Of 3)
G07599186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

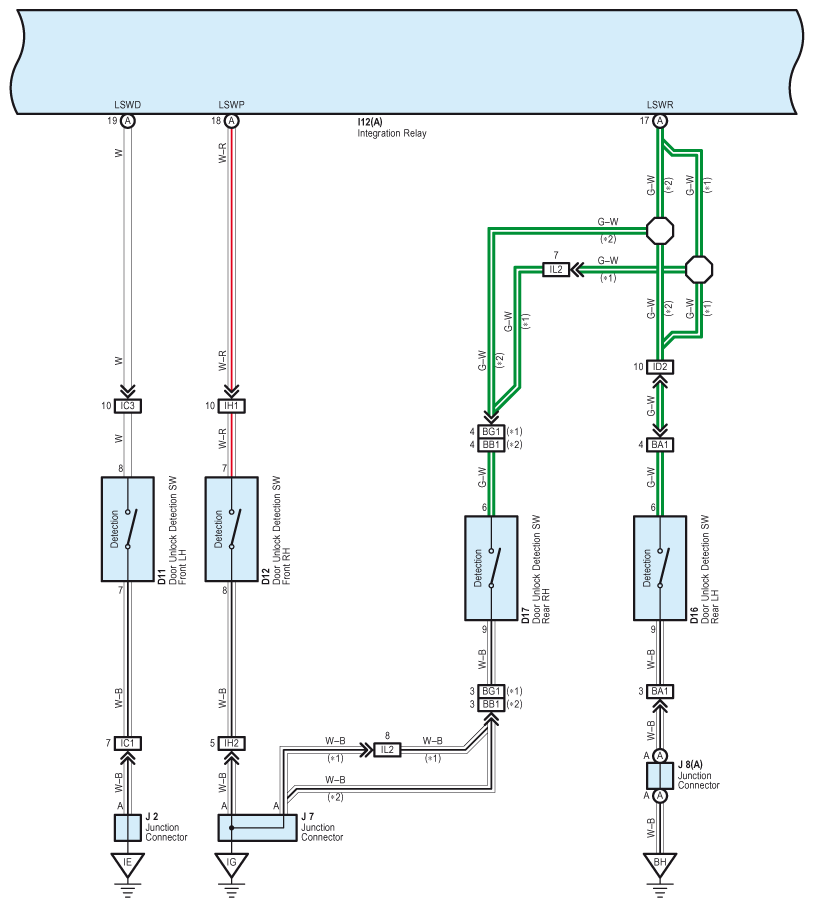

Fig 2: Wireless Door Lock Control - Circuit Diagram (2 Of 3)
G07599187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

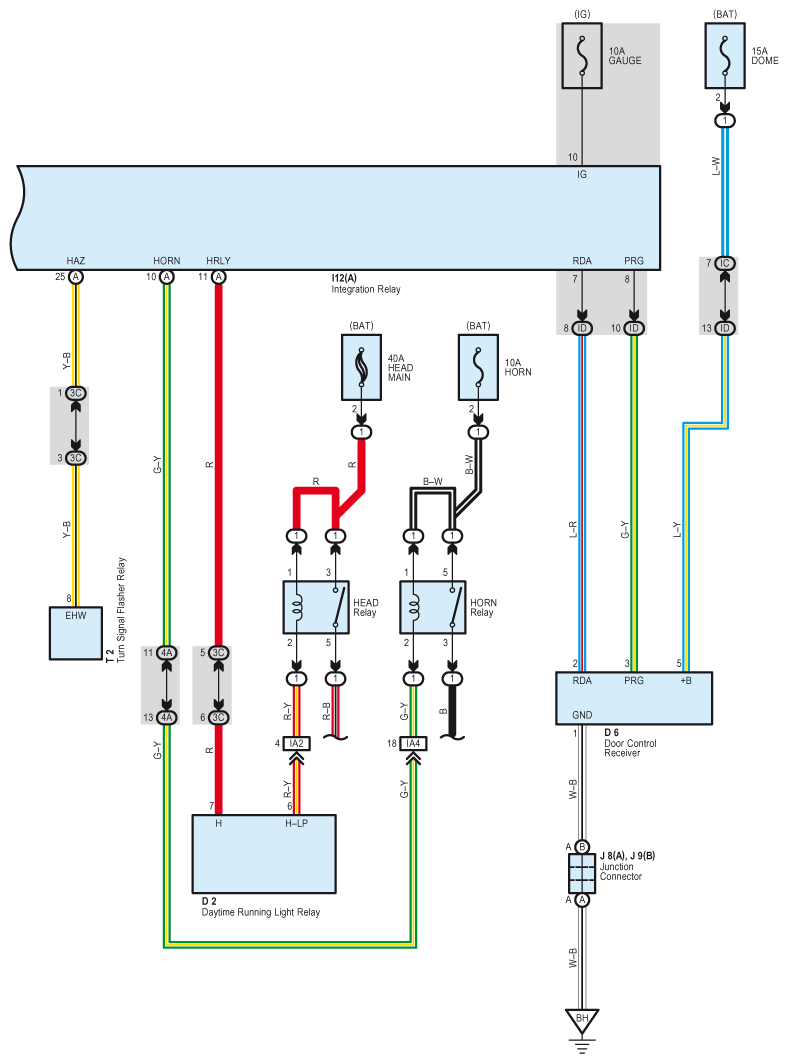

Fig 3: Wireless Door Lock Control - Circuit Diagram (3 Of 3)
G07599188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
