Roof Headlining: Installation

  1. INSTALL ROOF HEADLINING ASSEMBLY
    1. Align the wire harness to the markings, and then attach the wire harness with tape.

      HINT:

      Be careful that dirt and foreign matter do not contaminate the tape's adhesive.

    2. Attach the roof wire harness with tape.
      NOTE: Roof wire harness should be attached securely.
    3. Install the 2 clips.
  2. INSTALL SUN ROOF OPENING TRIM MOLDING (w/ SLIDING ROOF)
  3. INSTALL VISOR HOLDER
  4. INSTALL ASSIST GRIP SUB-ASSEMBLY
    1. Install the 2 screws and assist grip.
    2. Install the 2 grip covers.
  5. INSTALL NO. 1 INTERIOR LIGHT ASSEMBLY
    1. Install the interior light.
    2. Install the lens cover.
      Fig 1: Attaching Roof Wire Harness With Tape
      G05237476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL MAP LIGHT ASSEMBLY
    1. Install the map light.
    2. Install the screw.
    3. Install the light lens and cover and engage the 4 clips.
    4. Install the screw.

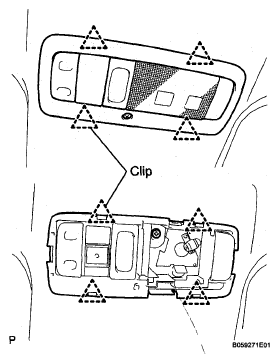

      Fig 2: Identifying Map Light Assembly Clips
      G05237471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL VISOR ASSEMBLY LH
    1. Install the 2 screws and visor.
  8. INSTALL VISOR ASSEMBLY RH
    1. Install the 2 screws and visor.
      Fig 3: Identifying Visor Screws
      G05196481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FRONT PILLAR GARNISH LH
    1. Install the pillar garnish.
  10. INSTALL FRONT PILLAR GARNISH RH
    Fig 4: Identifying Front Pillar Garnish Clips
    G05237469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL ROOF SIDE INNER GARNISH LH
    1. Install the roof side garnish.
    2. Install the bolt and rear seat 3-point belt.

      Torque: 41.2 N*m (420 kgf*cm, 30 ft.*lbf)

    3. Install the seat belt anchor cover.
  12. INSTALL ROOF SIDE INNER GARNISH RH
    Fig 5: Identifying Roof Side Inner Garnish LH Clips
    G05237468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
    1. Install the side panel and engage the 3 claws and 3 clips.
    2. Install the 4 bolts and 4 rope hooks.
  14. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
    Fig 6: Identifying Deck Trim Side Panel Assembly Clips And Claws LH
    G05237466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL REAR SEAT SIDE GARNISH LH
    1. Install the side garnish.
    2. Install the bolt and seat back hinges.

      Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

  16. INSTALL REAR SEAT SIDE GARNISH RH
  17. INSTALL REAR SEATBACK ASSEMBLY

    HINT:

    See REASSEMBLY

  18. INSTALL REAR SEAT CUSHION ASSEMBLY

    HINT:

    See REASSEMBLY

    Fig 7: Identifying Rear Seat Side Garnish Clips And Claws
    G05237465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL TONNEAU COVER ASSEMBLY
  20. INSTALL REAR DECK TRIM COVER
    1. Install the rear deck trim cover.
    2. Install 2 clips.
  21. INSTALL BACK DOOR WEATHERSTRIP
    Fig 8: Identifying Rear Deck Trim Cover Claws
    G05237464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL LUGGAGE COMPARTMENT TRAY
    1. Install the 5 bolts and luggage compartment tray.
      Fig 9: Identifying Luggage Compartment Tray Bolts
      G05237463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL REAR DECK FLOOR BOX
    1. Install the rear deck floor box and tighten the spare wheel carrier.
  24. INSTALL DECK BOARD SUB-ASSEMBLY
    1. Install the 2 bolts and deck board.
  25. INSTALL NO. 2 DECK BOARD
    Fig 10: Identifying Rear Deck Floor Box
    G05237462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL CENTER PILLAR GARNISH LH
    1. Install the pillar garnish.
    2. Connect the front seat outer belt (floor anchor side) and install the bolt.
    3. Connect the front seat outer belt (shoulder anchor side) and install the bolt.

      Torque: 41.2 N*m (420 kgf*cm, 30 ft.*lbf)

    4. Install the shoulder anchor cover cap.
  27. INSTALL CENTER PILLAR GARNISH RH
    Fig 11: Identifying Center Pillar Garnish Clip
    G05196475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL CENTER PILLAR LOWER GARNISH LH
    1. Install the lower garnish.
  29. INSTALL CENTER PILLAR LOWER GARNISH RH
  30. INSTALL REAR DOOR OPENING TRIM LH
  31. INSTALL REAR DOOR OPENING TRIM RH
  32. INSTALL FRONT DOOR OPENING TRIM LH
  33. INSTALL FRONT DOOR OPENING TRIM RH
    Fig 12: Identifying Center Pillar Lower Garnish RH
    G05237458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSTALL REAR DOOR SCUFF PLATE LH
    1. Install the scuff plate.
  35. INSTALL REAR DOOR SCUFF PLATE RH
    Fig 13: Identifying Rear Door Scuff Plate
    G05237457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL COWL SIDE TRIM BOARD LH
    1. Install the trim board and engage the 2 clips labeled B.
    2. Install the clip labeled A.
  37. INSTALL COWL SIDE TRIM BOARD RH
    Fig 14: Identifying Cowl Side Trim Board Clips
    G05237456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. INSTALL FRONT DOOR SCUFF PLATE LH
    1. Install the scuff plate.
  39. INSTALL FRONT DOOR SCUFF PLATE RH
    Fig 15: Identifying Front Door Scuff Plate
    G05237455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
