Test Mode Procedure

  1. WARNING LIGHT BULB CHECK
    NOTE: When releasing the parking brake, set the chocks to hold the vehicle for safety.

    HINT:

    When the parking brake is applied or the level of the brake fluid is low, the BRAKE warning light comes on.

    1. Release the parking brake lever.
    2. Check that the ABS warning light and BRAKE warning light come on when the ignition switch is turned on and will go off in about 3 seconds.
    3. If the warning lights do not come on, or remain on, the bulb has burned out or the skid control ECU may be defective.
  2. SENSOR SIGNAL CHECK (TEST MODE) (USING TECHSTREAM)

    If the ignition switch is turned from the ON to the ACC or LOCK position during test mode, DTCs of the sensor check function will be erased.

    1. Procedures for sensor signal check
      1. Turn the ignition switch off.
      2. Check that the shift lever is in the P position.
      3. Connect Techstream to the DLC3.
      4. Start the engine.
      5. Operate Techstream in test mode (Signal Check).
        Fig 1: Identifying ABS And BRAKE Warning Light
        G05194760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Check that the ABS warning light blinks.

        HINT:

        If the ABS warning light does not blink, inspect the ABS warning light circuit.

        TROUBLESHOOTING REFERENCE CHART

        Trouble Area See procedure
        ABS warning light circuit ABS WARNING LIGHT DOES NOT COME ON
        Fig 2: ABS Warning Light Blinking Pattern In Test Mode
        G05194763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Start the sensor signal check.
      1. Drive vehicle straight forward.

        Drive the vehicle at a speed of 28 mph (45 km/h) or higher for several seconds and check that the ABS warning light goes off.

        NOTE:
        • The speed sensor check may not be completed if it is started while turning the steering wheel or spinning the wheels.
        • If the sensor check has not been completed, the ABS warning light blinks while driving and the ABS system does not operate.
      2. Stop the vehicle.
    3. Read the DTCs.

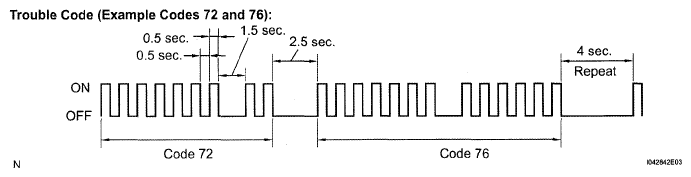

      Fig 3: Blinking Pattern Of Trouble Codes 72 And 76
      G05194764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • See the list of DTC (See  4, procedure "A").
      • If every sensor is normal, there is a normal code output. (A cycle of 0.25 sec. ON and 0.25 sec. OFF is repeated.)
      • If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed 1st.
  3. SENSOR SIGNAL CHECK (TEST MODE) (USING SST CHECK WIRE)

    If the ignition switch is turned from the ON to the ACC or LOCK position during test mode, DTCs of the sensor check function will be erased.

    1. Procedures for sensor signal check
      1. Turn the ignition switch off.
      2. Check that the shift lever is in the P position.
      3. Using SST, connect terminals TS and CG of the DLC3.

        SST 09843-18040

        Fig 4: Identifying DLC3 Connectors Terminals
        G05194765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Start the engine.
      5. Check that the ABS warning light blinks.

        HINT:

        If the ABS warning light does not blink, inspect the ABS warning light circuit and TS and CG terminal circuit.

        TROUBLESHOOTING REFERENCE CHART

        Trouble Area See procedure
        ABS warning light circuit ABS WARNING LIGHT DOES NOT COME ON
        TS and CG terminal circuit TS AND CG TERMINAL CIRCUIT
        Fig 5: ABS Warning Light Blinking Pattern In Test Mode
        G05194763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Start the sensor signal check.
      1. Drive vehicle straightforward.

        Drive the vehicle at a speed of 28 mph (45 km/h) or higher for several seconds and check that the ABS warning light goes off.

        NOTE:
        • The speed sensor check may not be completed if it is started while turning the steering wheel or spinning the wheels.
        • If sensor check has not been completed, the ABS warning light blinks while driving and the ABS system does not operate.
      2. Stop the vehicle.
    3. Read the DTCs
      1. Using SST, connect terminals TC and CG of the DLC3.

        SST 09843-18040

      2. Read the number of blinks of the ABS warning light.
        Fig 6: Identifying DLC3 Connectors Terminals
        G05194772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Fig 7: Blinking Pattern Of Trouble Codes 72 And 76
        G05194764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • See the list of DTC (See  4, procedure "A").
        • If every sensor is normal, the normal code is output. (A cycle of 0.25 second ON and 0.25 second OFF is repeated.)
        • If 2 or more malfunctions are indicated at the same time, the lowest numbered code will be displayed 1st.
      3. After performing the check, turn the ignition switch off, and remove the SST from the DLC3.

        SST 09843-18040

  4. DTC of speed sensor check function (Procedure "A"):
    DTC TROUBLE DETECTION CHART

    DTC Code Detection Item Trouble Area
    C1271/71 Low Output Signal of Front Speed Sensor RH
    • Front speed sensor RH
    • Sensor installation
    • Sensor rotor
    C1272/72 Low Output Signal of Front Speed Sensor LH
    • Front speed sensor LH
    • Sensor installation
    • Sensor rotor
    C1273/73 Low Output Signal of Rear Speed Sensor RH
    • Rear speed sensor RH
    • Sensor installation
    • Sensor rotor
    C1274/74 Low Output Signal of Rear Speed Sensor LH
    • Rear speed sensor LH
    • Sensor installation
    • Sensor rotor
    C1275/75 Abnormal Change in Output Signal of Front Speed Sensor RH Front speed sensor rotor RH
    C1276/76 Abnormal Change in Output Signal of Front Speed Sensor LH Front speed sensor rotor LH
    C1277/77 Abnormal Change in Output Signal of Rear Speed Sensor RH Rear speed sensor rotor RH
    C1278/78 Abnormal Change in Output Signal of Rear Speed Sensor LH Rear speed sensor rotor LH

    HINT:

    The codes in this table are output only in TEST MODE.
