2AZ-FE 2.4L

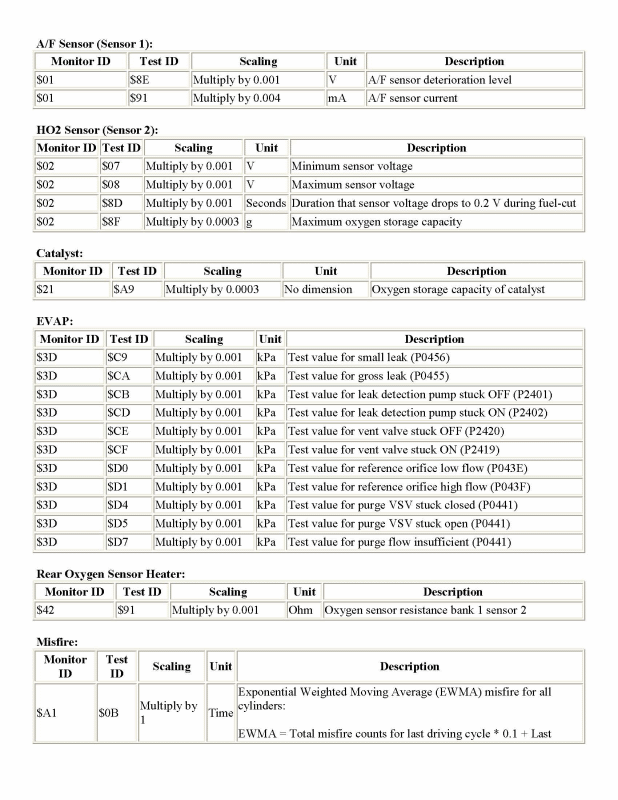

Fig 1: Mode 6 Data For Camry 4 Cyl. (1 Of 3)
G00526051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

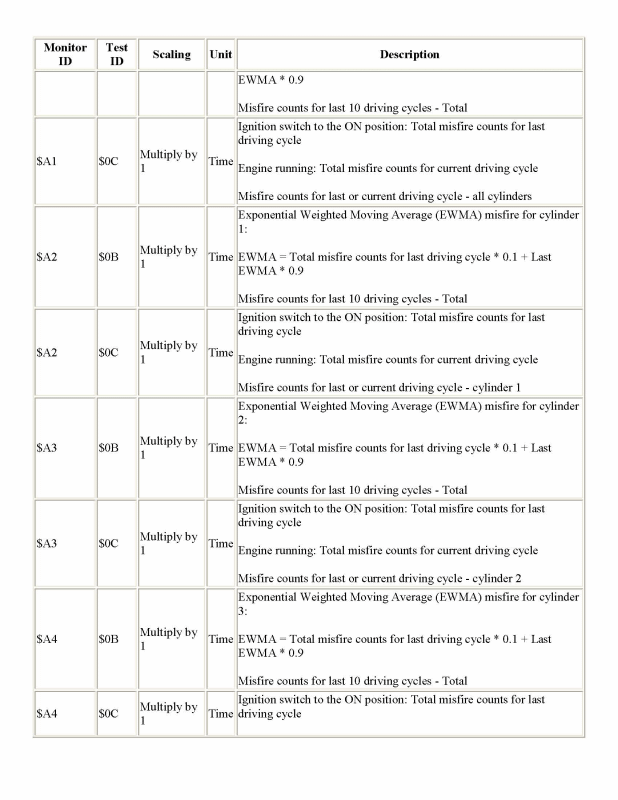

Fig 2: Mode 6 Data For Camry 4 Cyl. (1 Of 3)
G00526052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

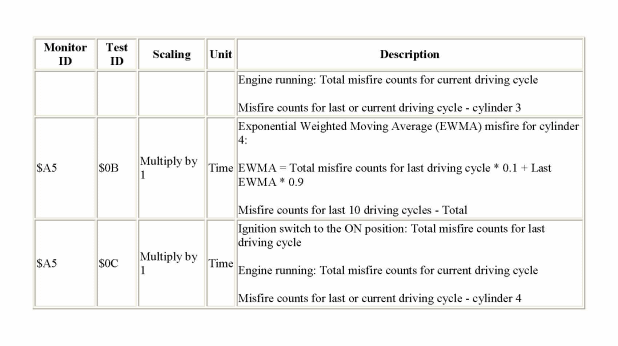

Fig 3: Mode 6 Data For Camry 4 Cyl. (3 Of 3)
G00526053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
