Front Speed Sensor: Installation

1. Install the front speed sensor with the bolt.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE: Prevent foreign matter from attaching to the sensor tip.
   Fig 1: Locating Front Speed Sensor With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the sensor harness brackets with the 2 bolts to the body and shock absorber assembly.

   Torque: Bolt A

   5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Bolt B

   19 N*m (192 kgf*cm, 14 ft.*lbf)

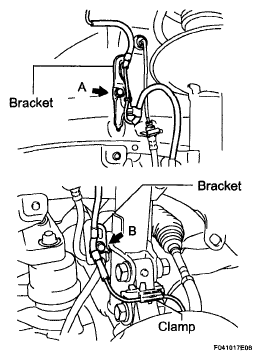

   Fig 2: Locating Sensor Harness Brackets With Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the clamp to the steering knuckle.
   NOTE: Do not twist the wire harness for front speed sensor when installing the speed sensor.
4. Connect the speed sensor connector and clamp.
   Fig 3: Locating Speed Sensor Connector And Clamp

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

1. Check for the speed sensor signal (See TEST MODE PROCEDURE ).
