Engine Control System (2GR-FE): ECM: Components

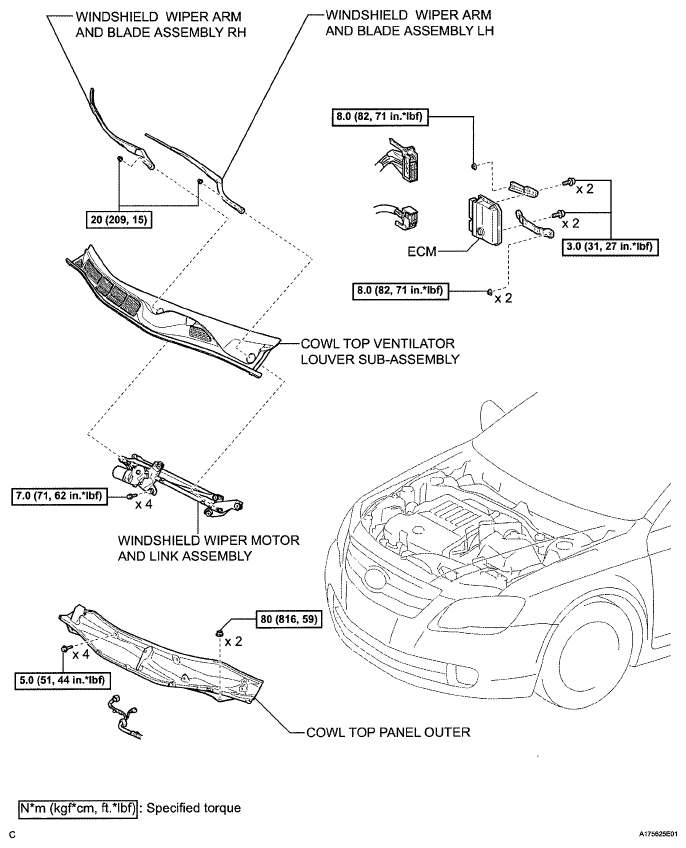

Fig 1: ECM And Related Replacement Components With Torque Specifications
G05404791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
