Throttle Body: Removal
- DRAIN ENGINE COOLANT
(See REPLACEMENT
)
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION
).
- REMOVE V-BANK COVER SUB-ASSEMBLY
(See REMOVAL
)
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
(See REMOVAL
)

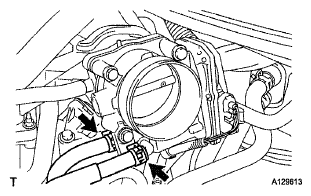

- SEPARATE WATER BY-PASS HOSE
- Disconnect the 2 water by-pass hoses from the throttle w/ motor body assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY
- Disconnect the throttle w/ motor body assembly connector.
- Remove the 4 bolts and throttle w/ motor body assembly from the intake air surge tank.
- Remove the throttle body gasket from the intake air surge tank.
